Customize Your Single Traverse Rod

Single Traverse Configuration Tool

Single Traverse Configuration Tips

  1. This configuration tool will allow you to specify exactly how you want your single traverse rod configured.
  2. This tool will guide you, ensuring that your selections are fully compatible.
  3. Throughout the configuration, additional information is provided to help your decision making process.
  4. Your selections are always saved, even if you navigate away from this page or come back later.
  5. As always, if you need help, our support team is just a click away.
Please note that all custom products may take up to 14 days to produce.

Step 1 - Track Configuration

Rod Length
ROD LENGTH HELP

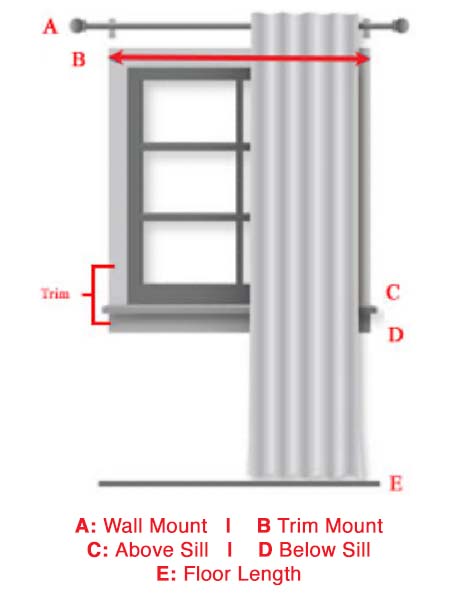

rod length diagram

Maximum continuous track available up to 16 feet one way draw, and up to 32 feet in a center draw.

Maximum continuous track available up to 16 feet one way draw, and up to 32 feet in a center draw.

Traverse rods over 104 inches long are automatically spliced in the center unless instructed otherwise. Please note that one-way draw tracks cannot be spliced.

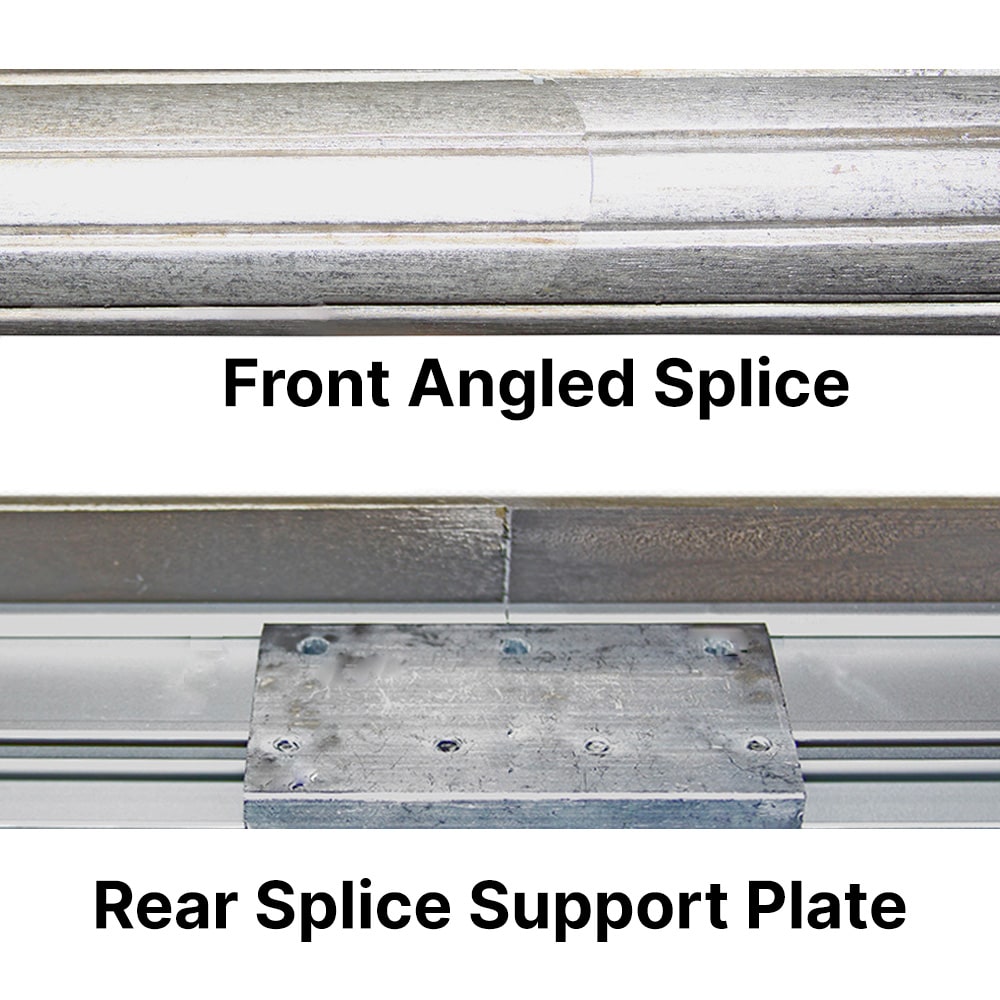

Top: Front Splice, Bottom: Rear Slice Connection Plate

(All hardware included)

Choose How You Want Your Rod Mounted
BRACKET INFO

All brackets are available in three powder coated finish colors (medallion gold, dark bronze, and white) or aluminum. Standard industry hardware included (see "Bracket Info" for diagram). Please consult with professional installer for recommendation on fasteners to be used for your specific installation conditions. Professional Installation recommended.

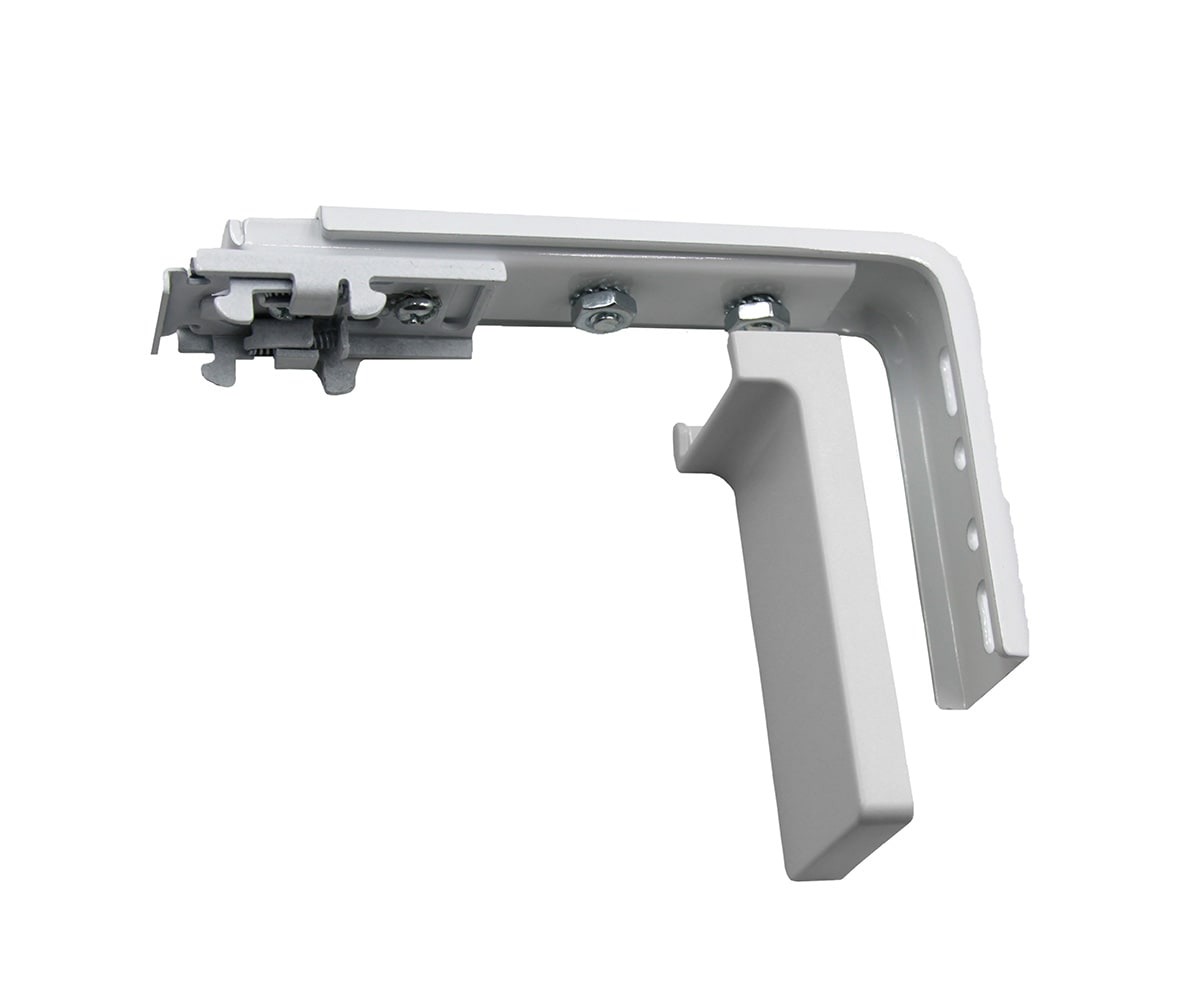

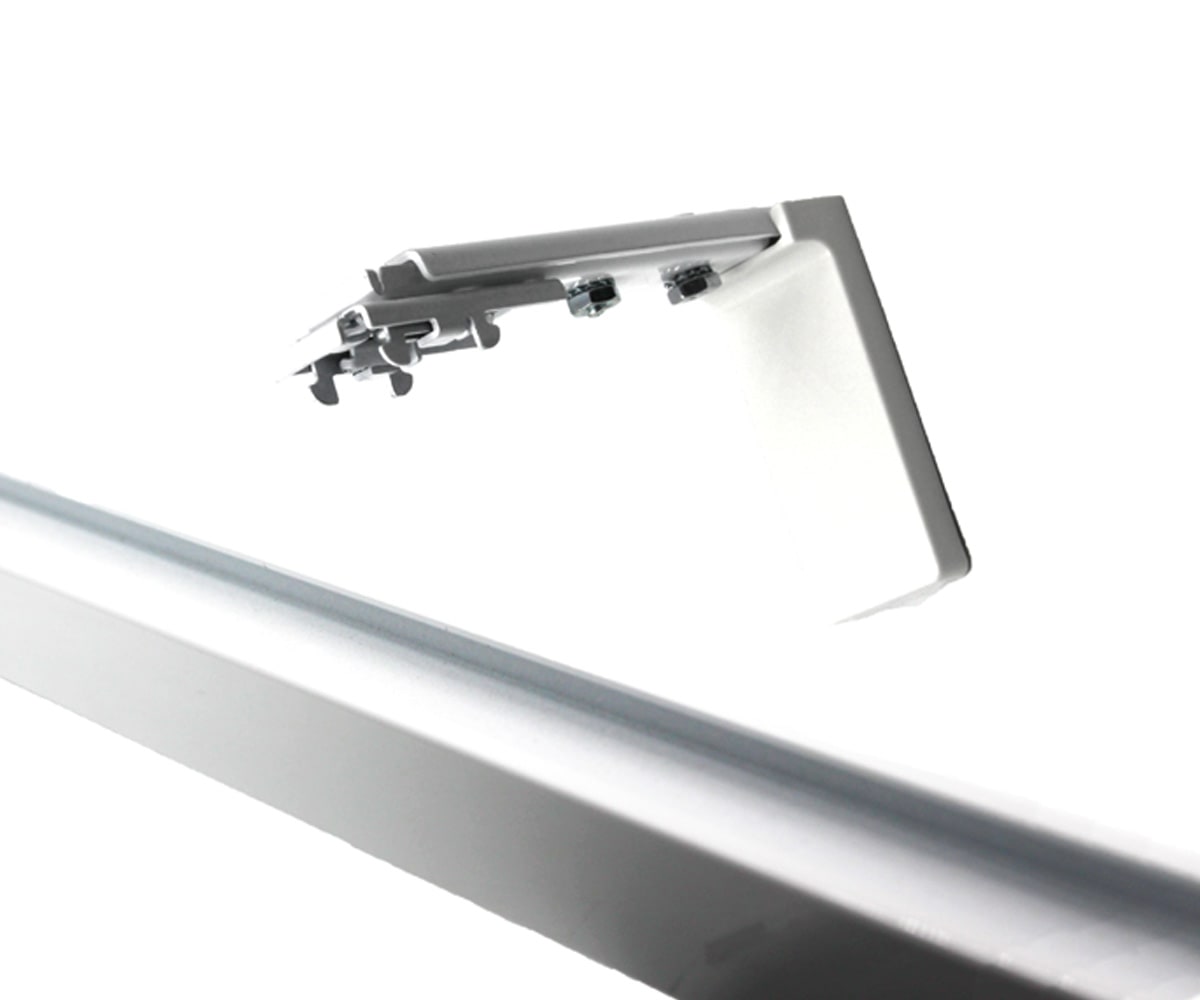

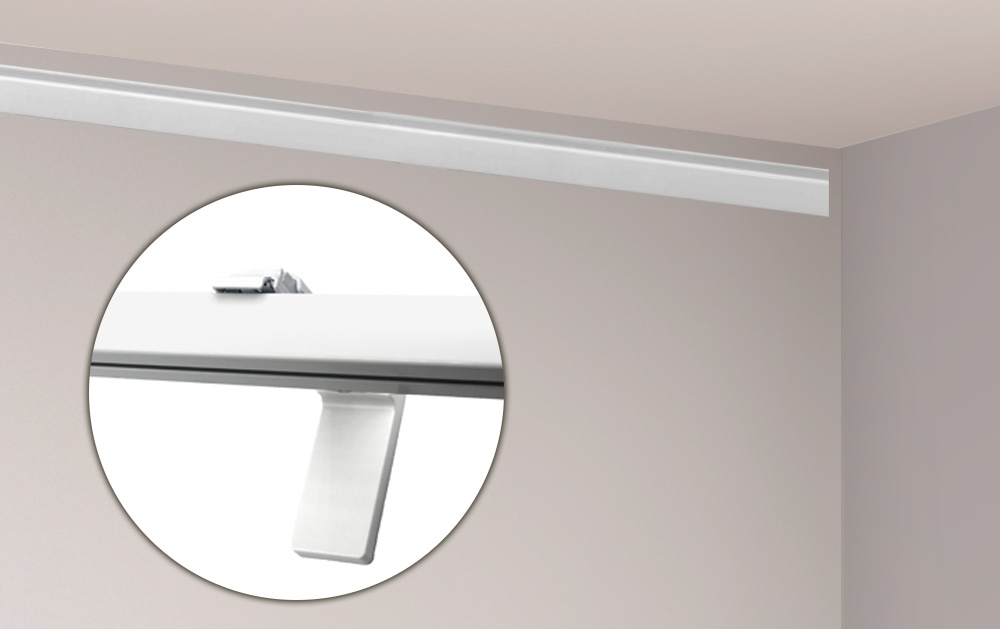

Wall Mount

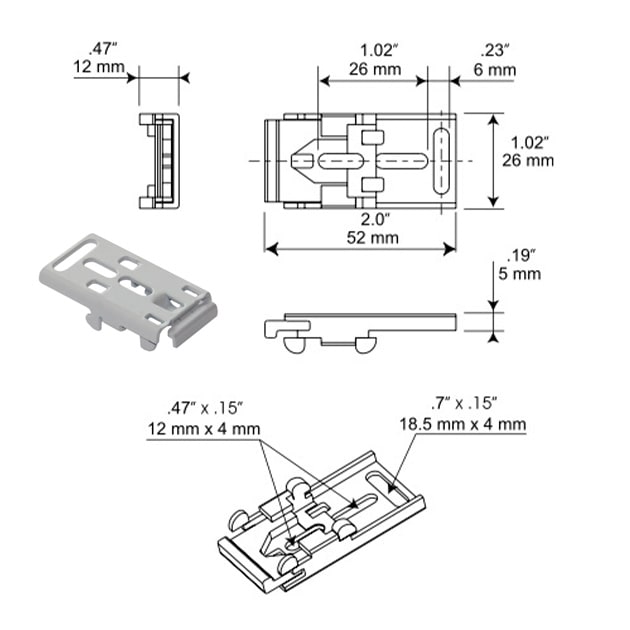

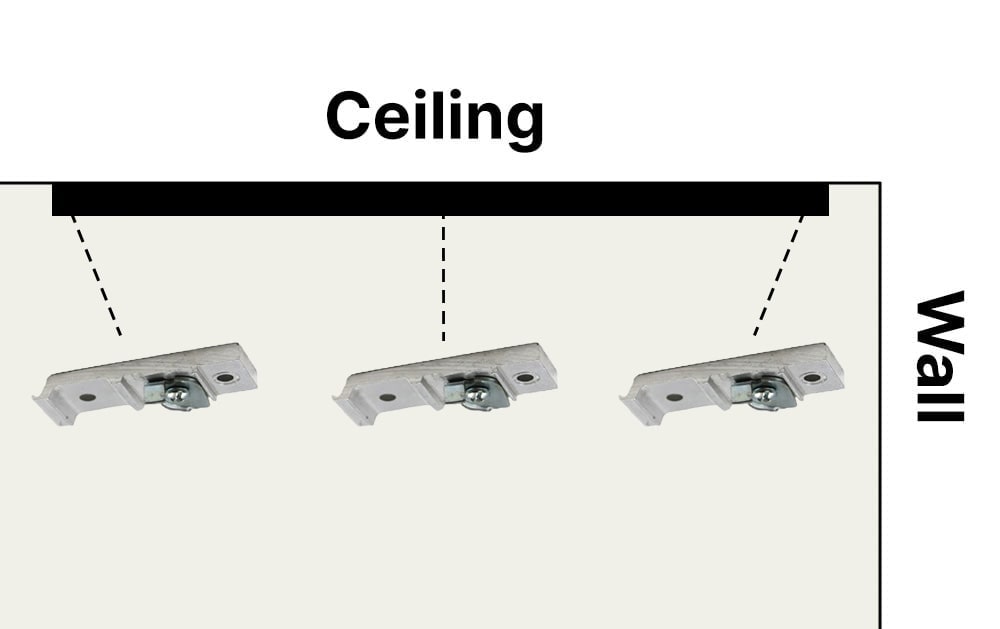

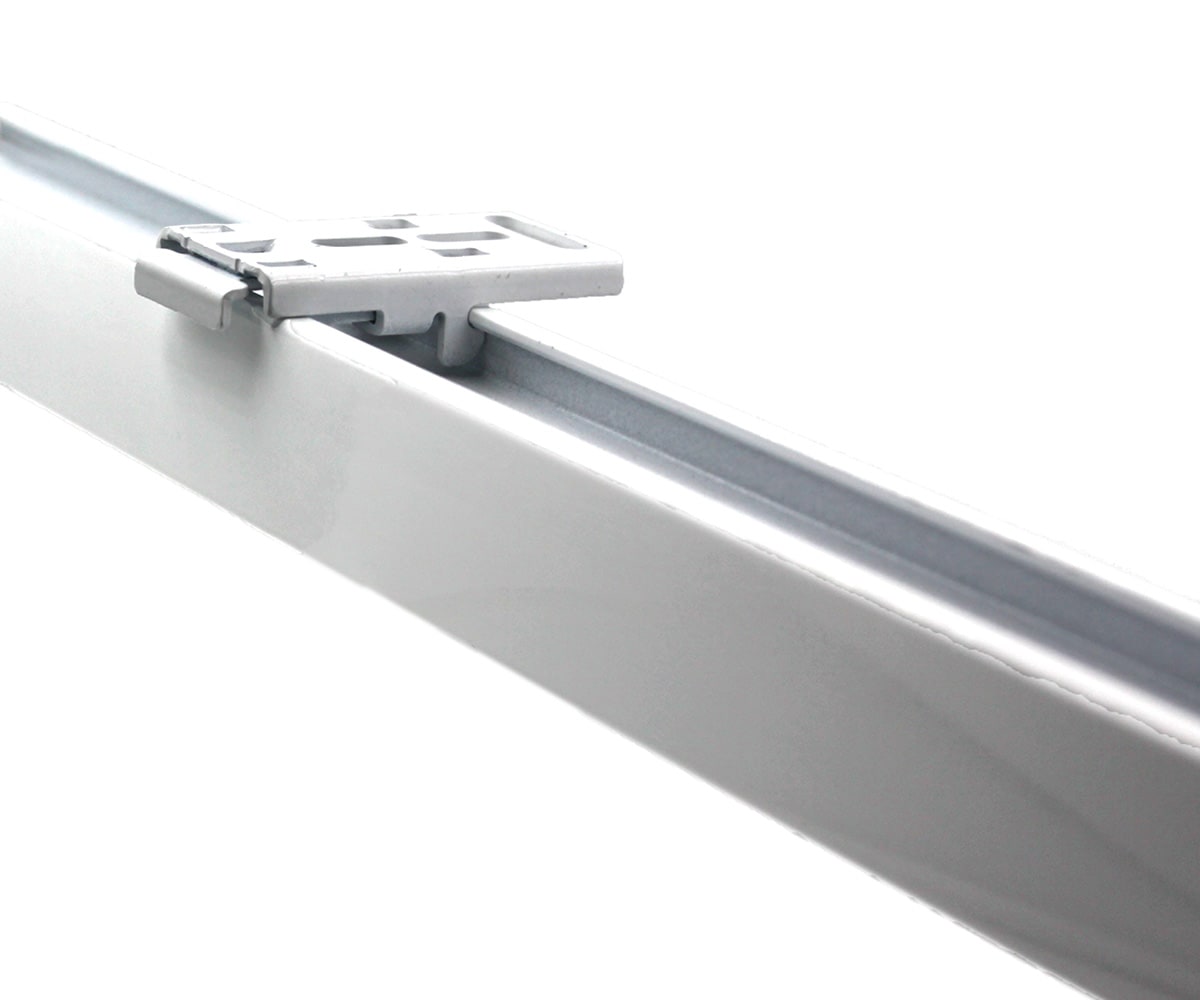

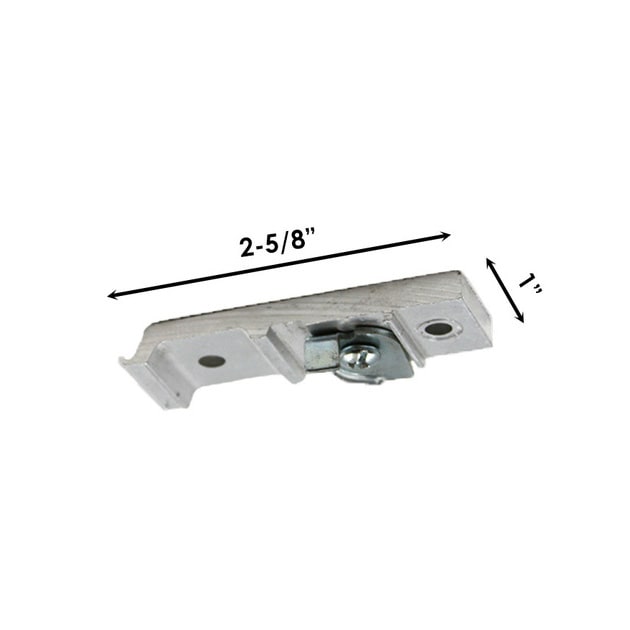

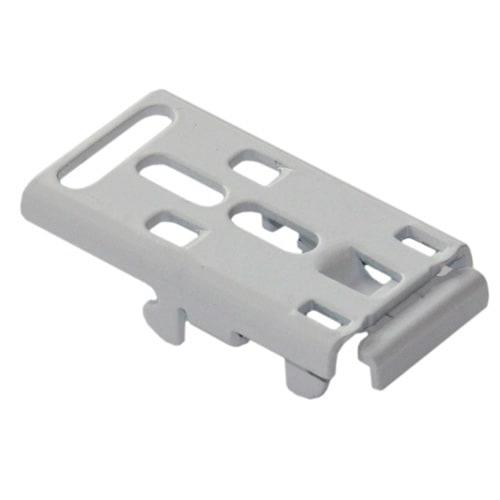

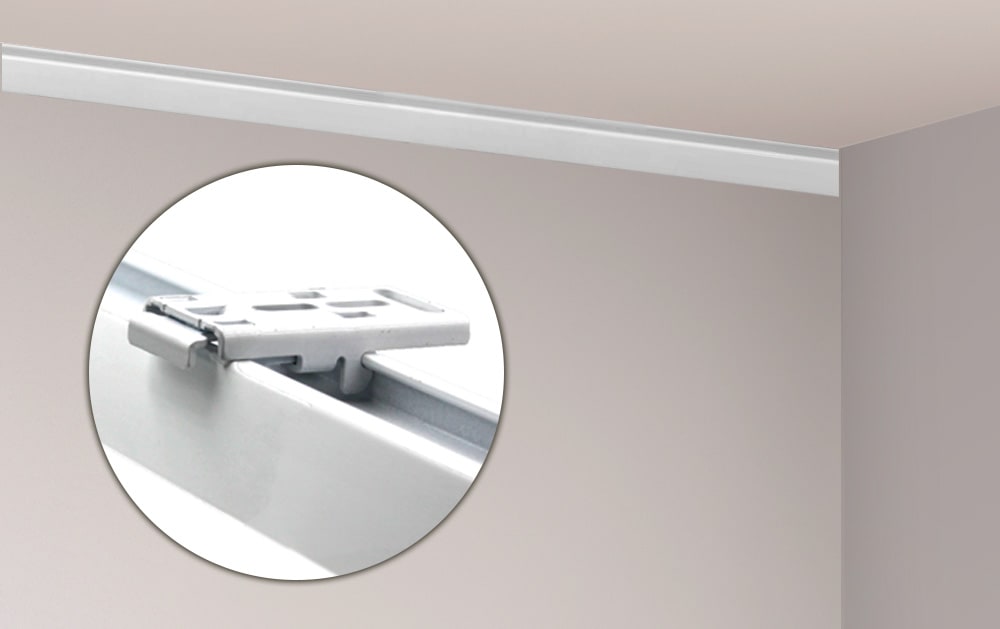

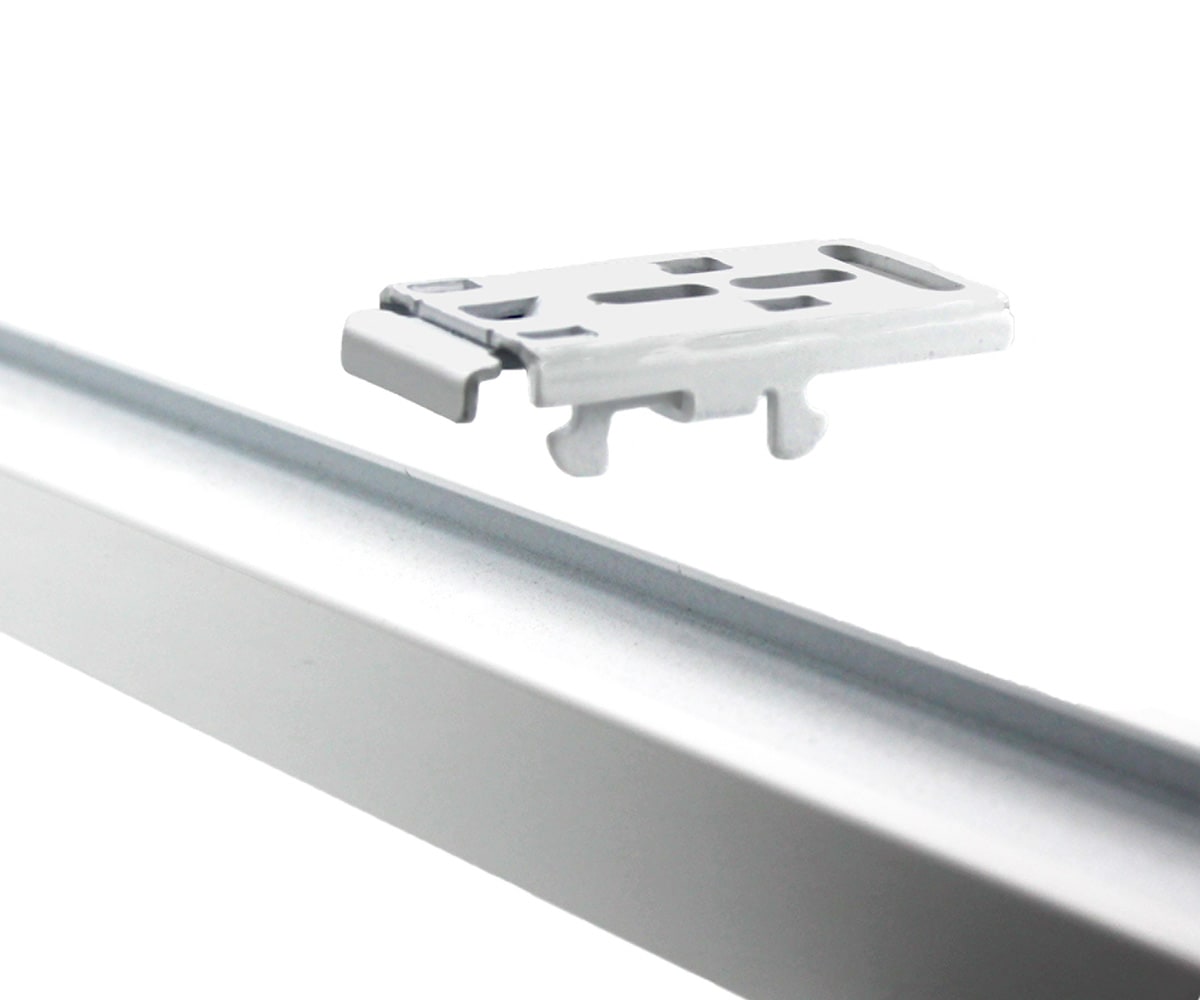

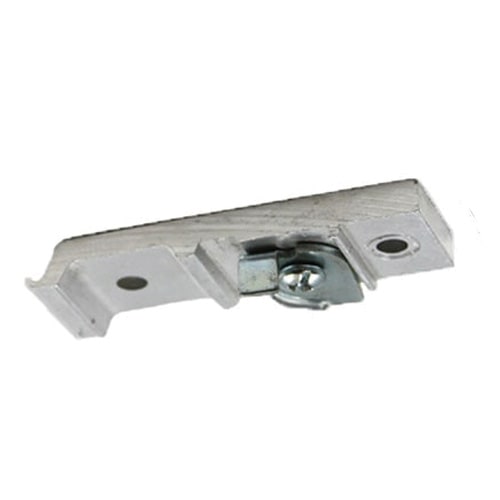

Ceiling Flush Mount

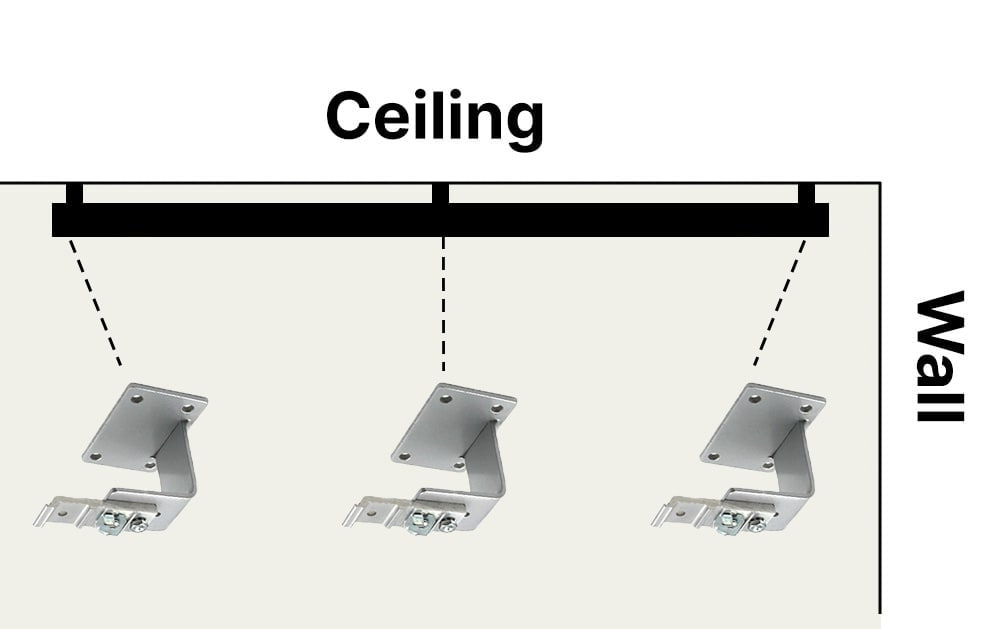

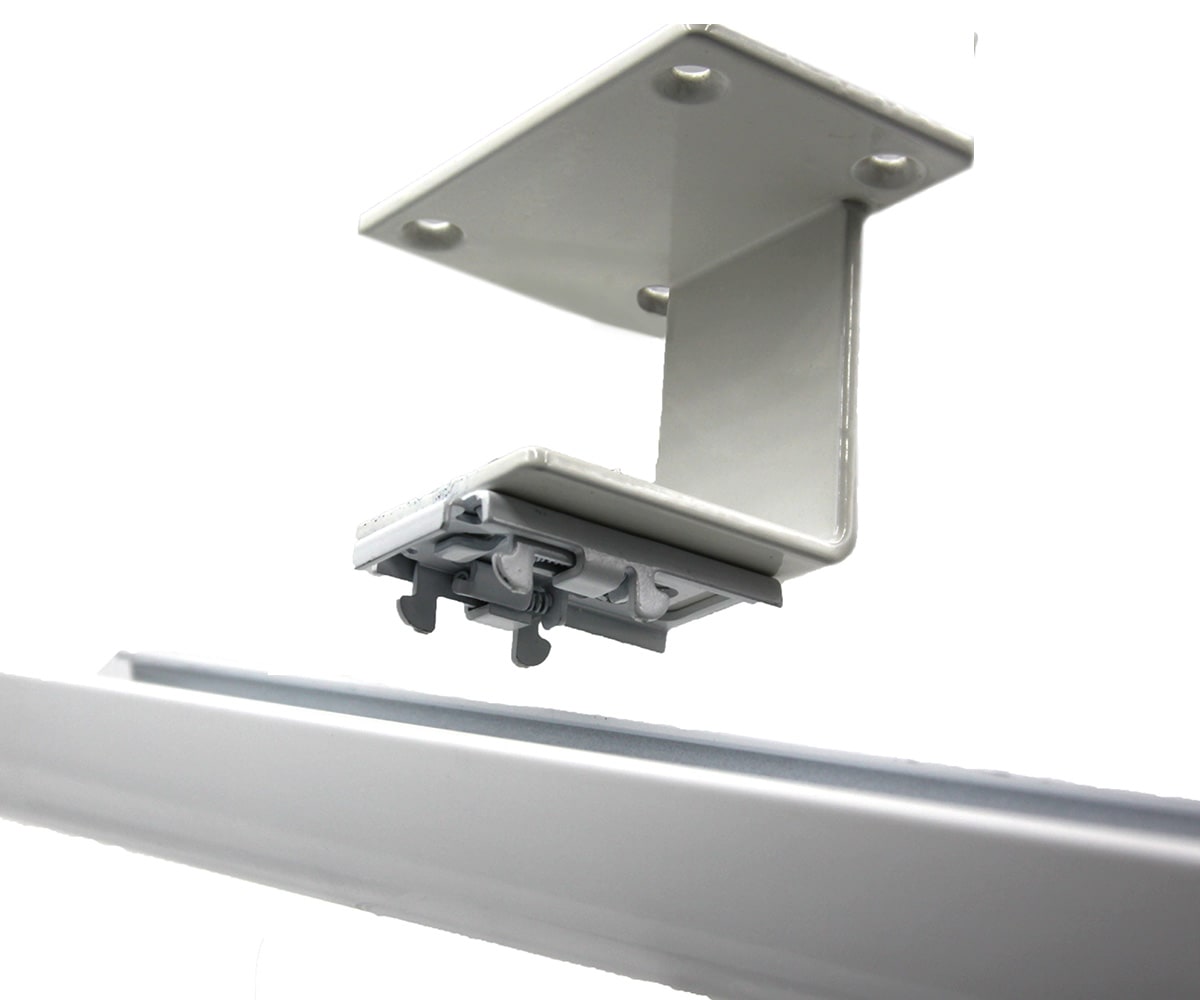

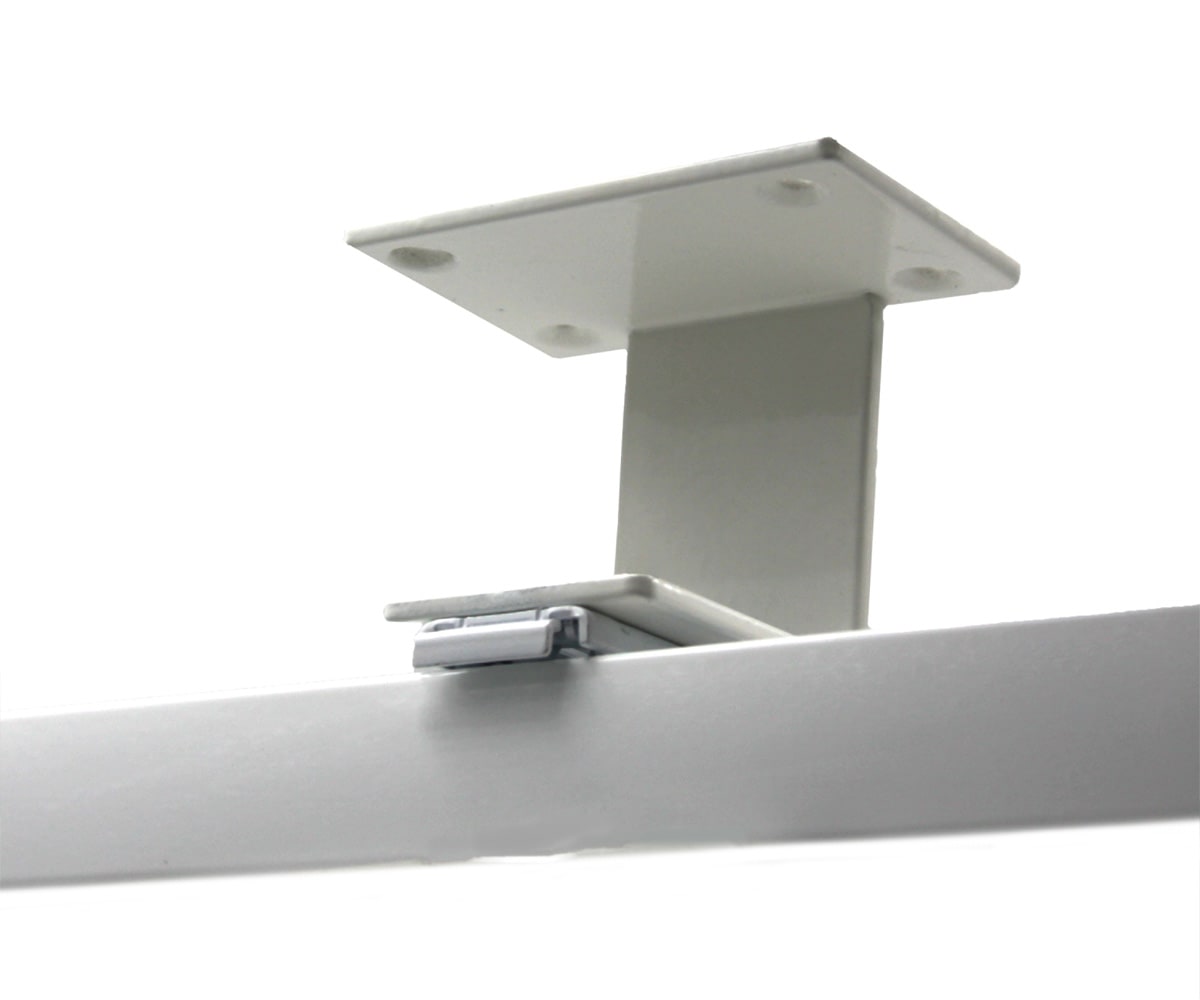

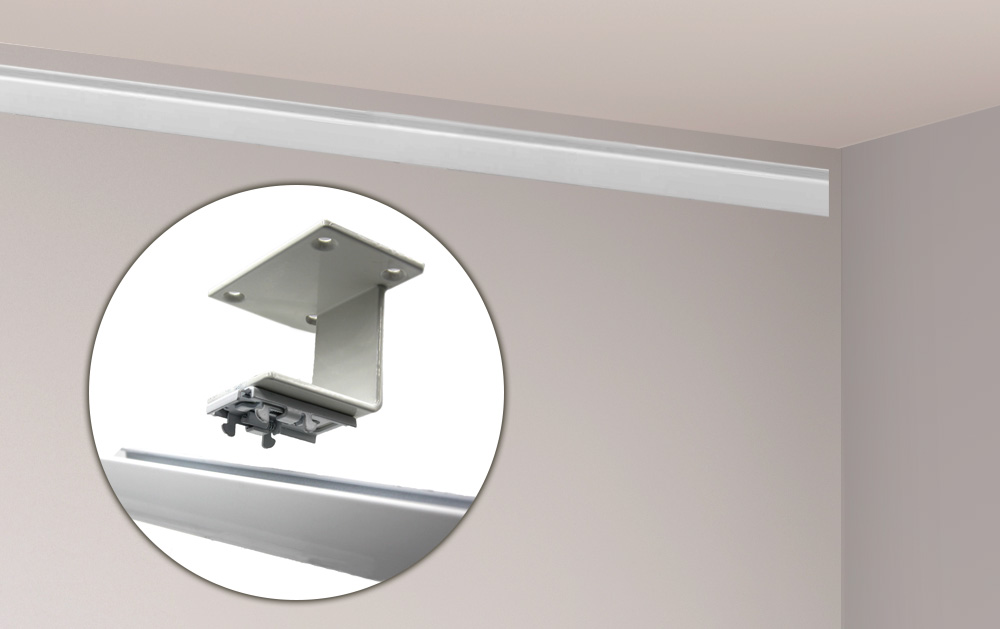

Ceiling Extended Mount

ALL NECESSARY HARDWARE INCLUDED
Based upon the rod length you've entered above, you will receive . To add additional brackets beyond this number, indicate the number of additional brackets you'd like below.

You must fix errors before proceeding

    Step 2 - Rod Configuration

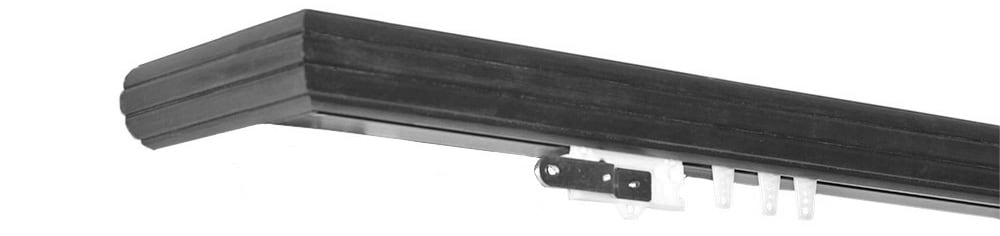

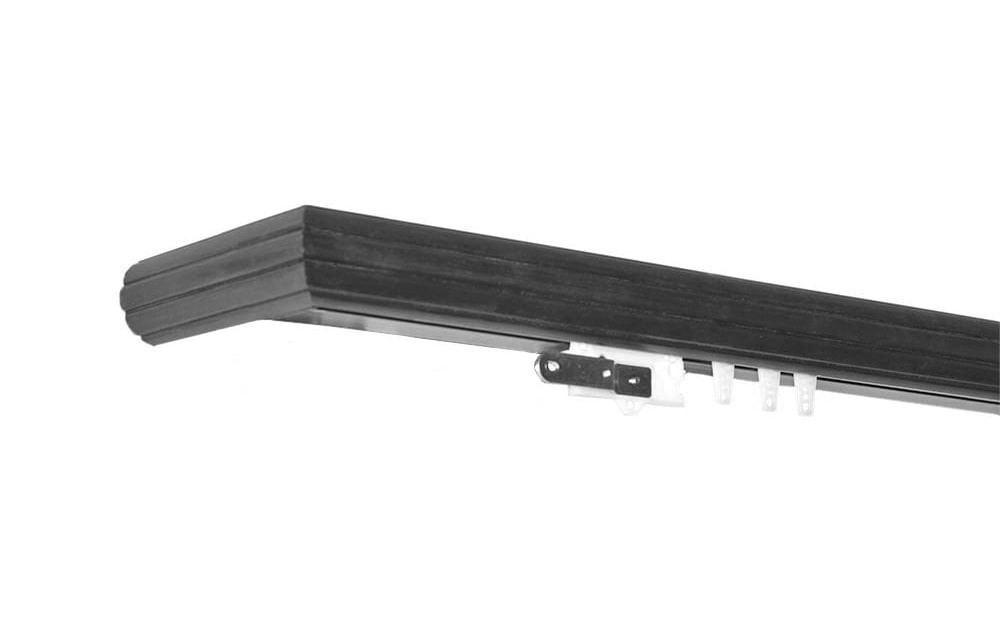

    Mitered Return

    Mitered returns (3.5" - 6")

    Yes, Mitered Returns (+ $45)

    No Mitered Returns

    Please enter a length for your mitered return in decimal form if less than a whole number. Acceptable values range from 3.5" - 6", as the Wall Mount Bracket allows for that range of adjustment.

    Rod Fascia Style

    Rod Fascias are custom spliced diagonally in the center and permanently attached to a color coordinated dual-glide track. Wood rod fascia’s may be selected in 2” smooth or fluted designs. 1-3/8” wood rod fascia’s may be selected in smooth, reeded, and square designs, and metal rods may be selected in a 1-1/4” compatible smooth design.

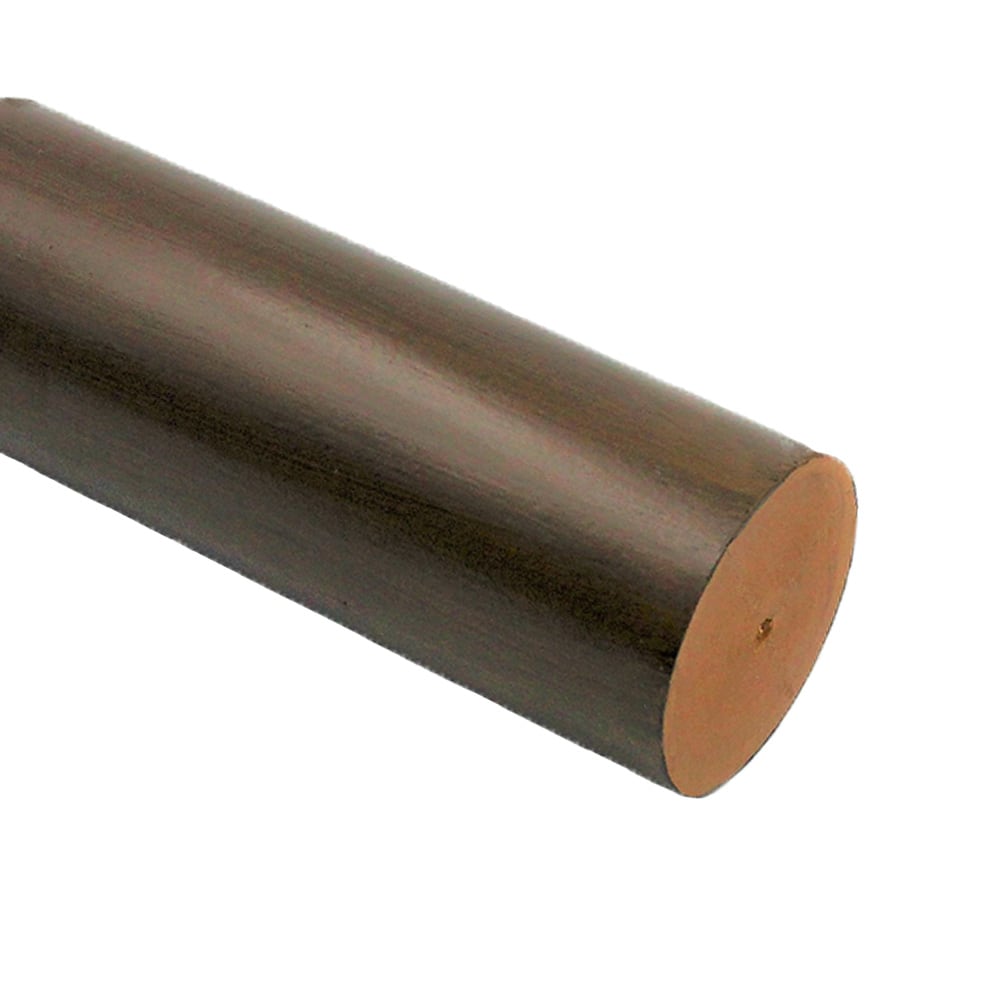

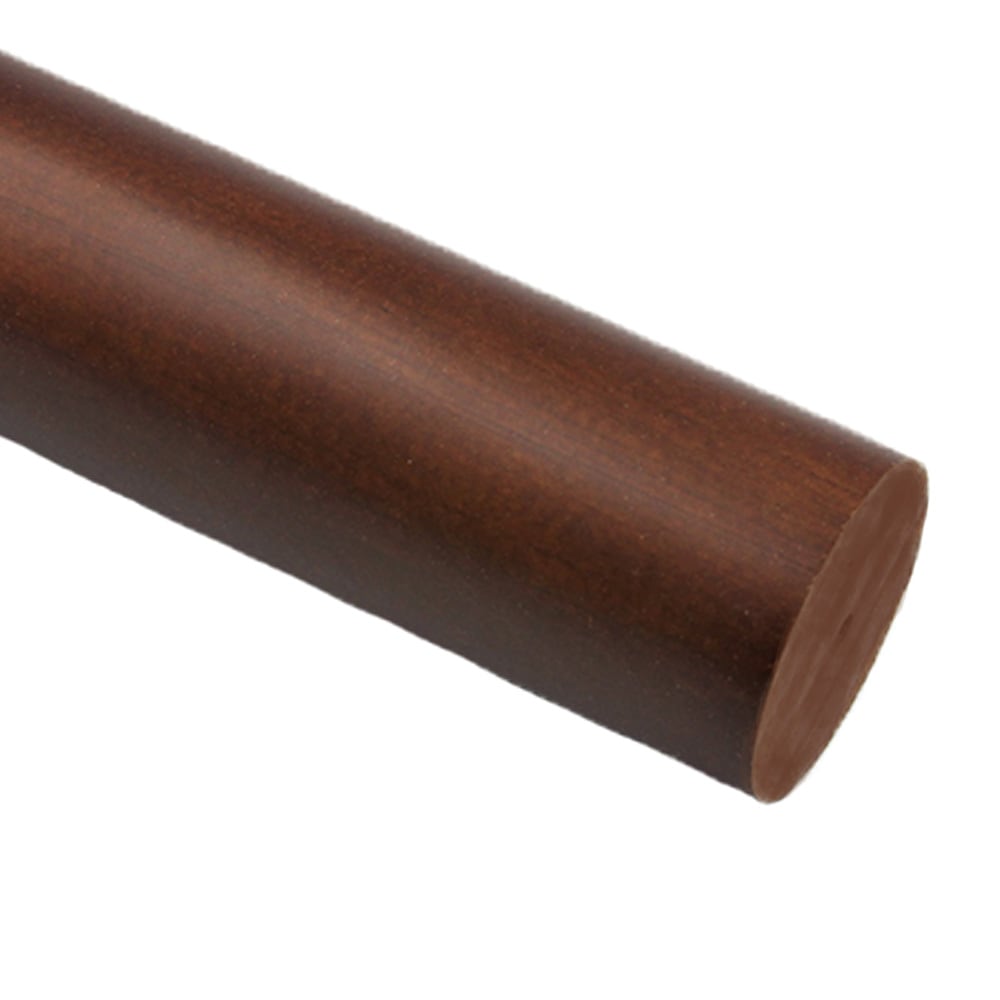

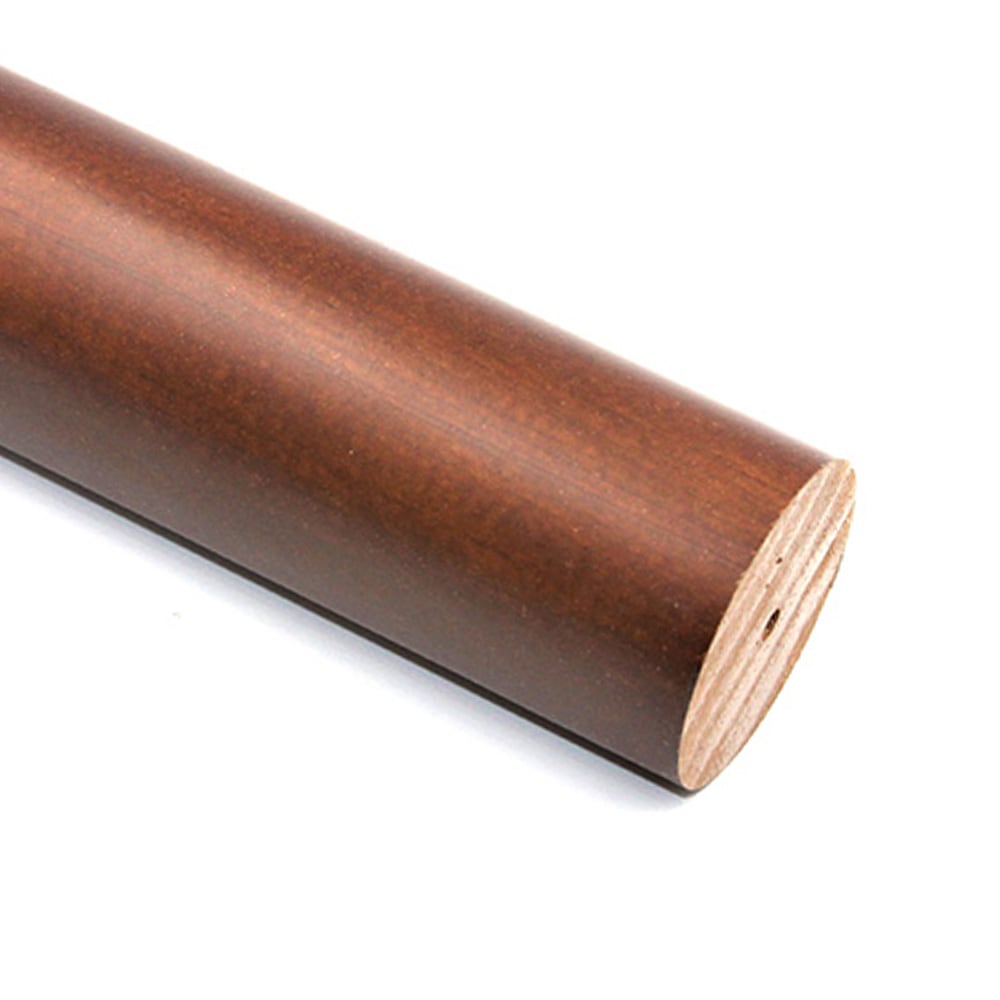

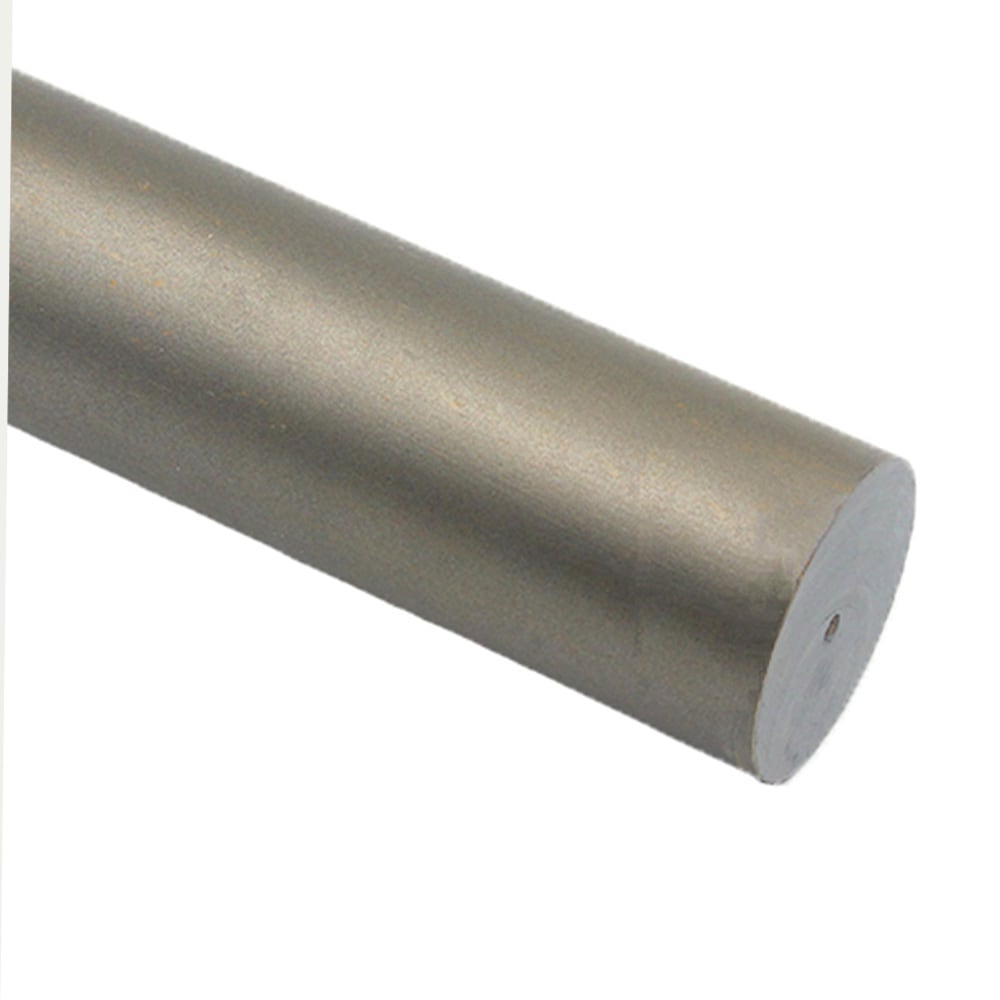

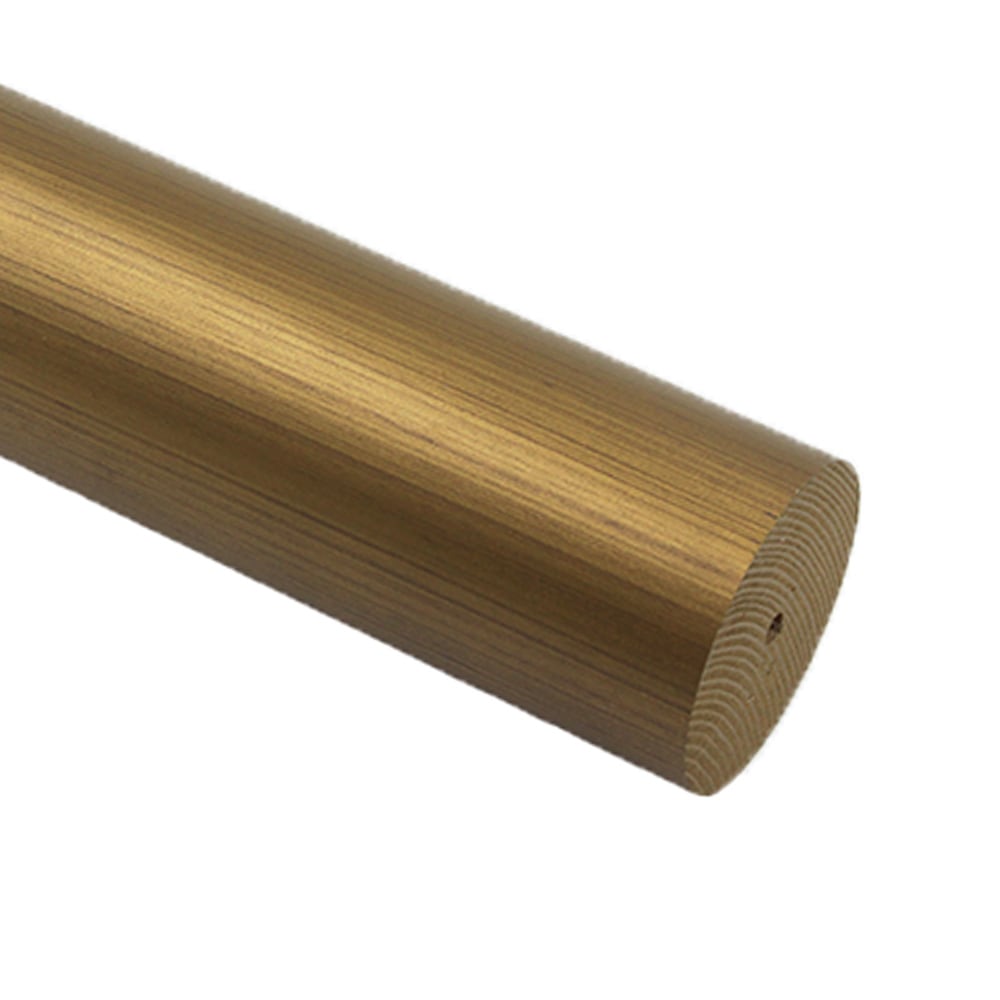

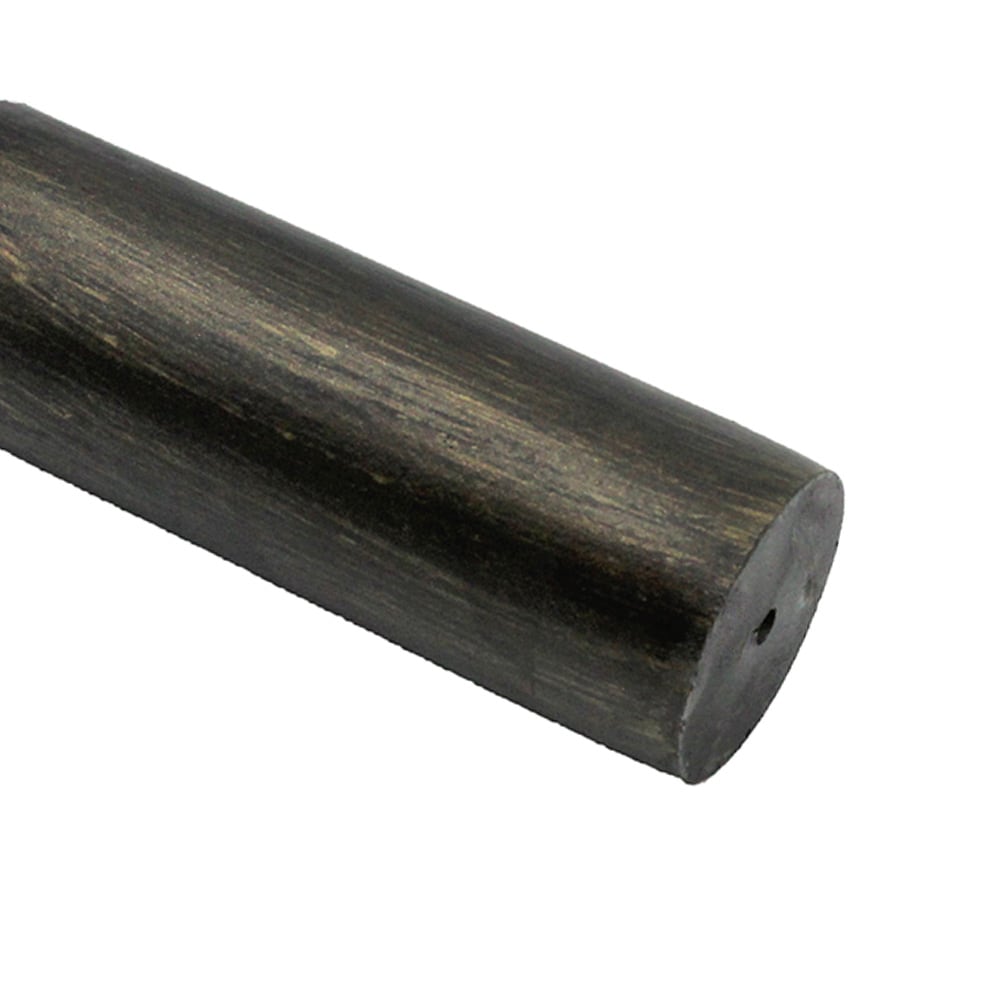

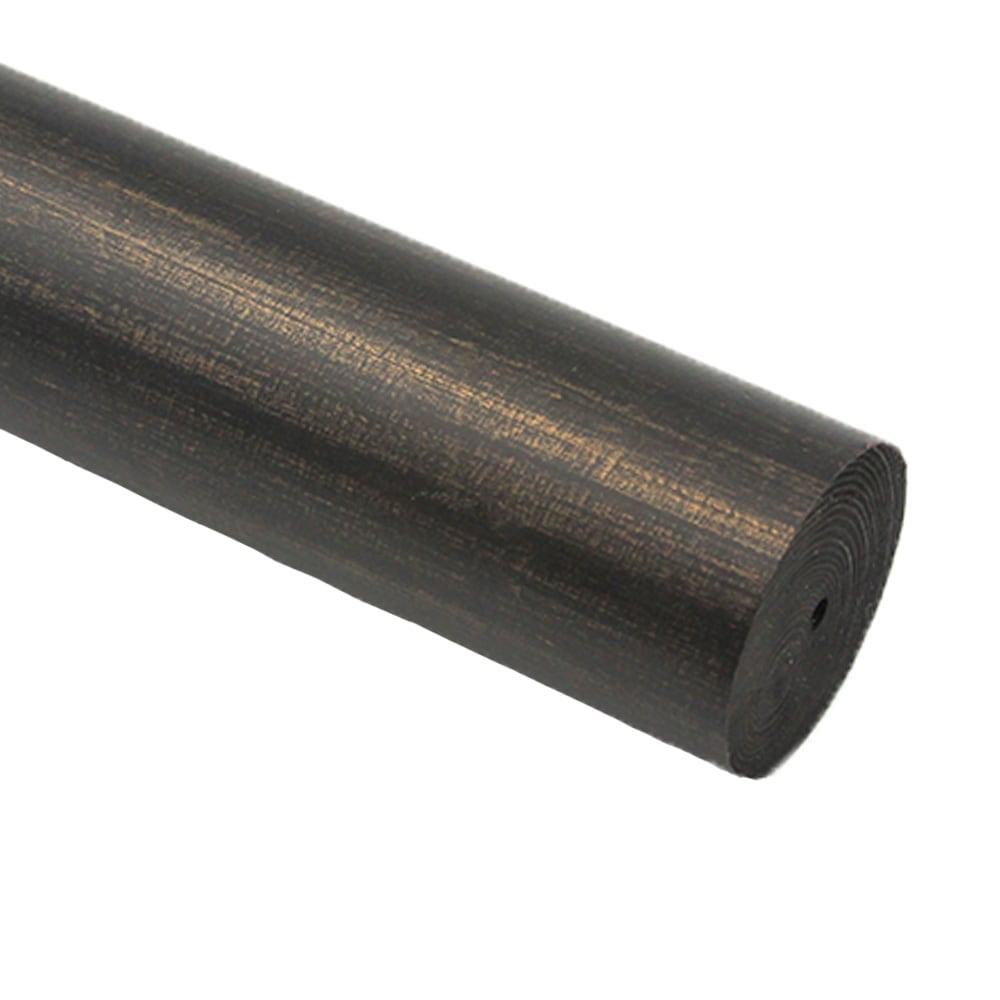

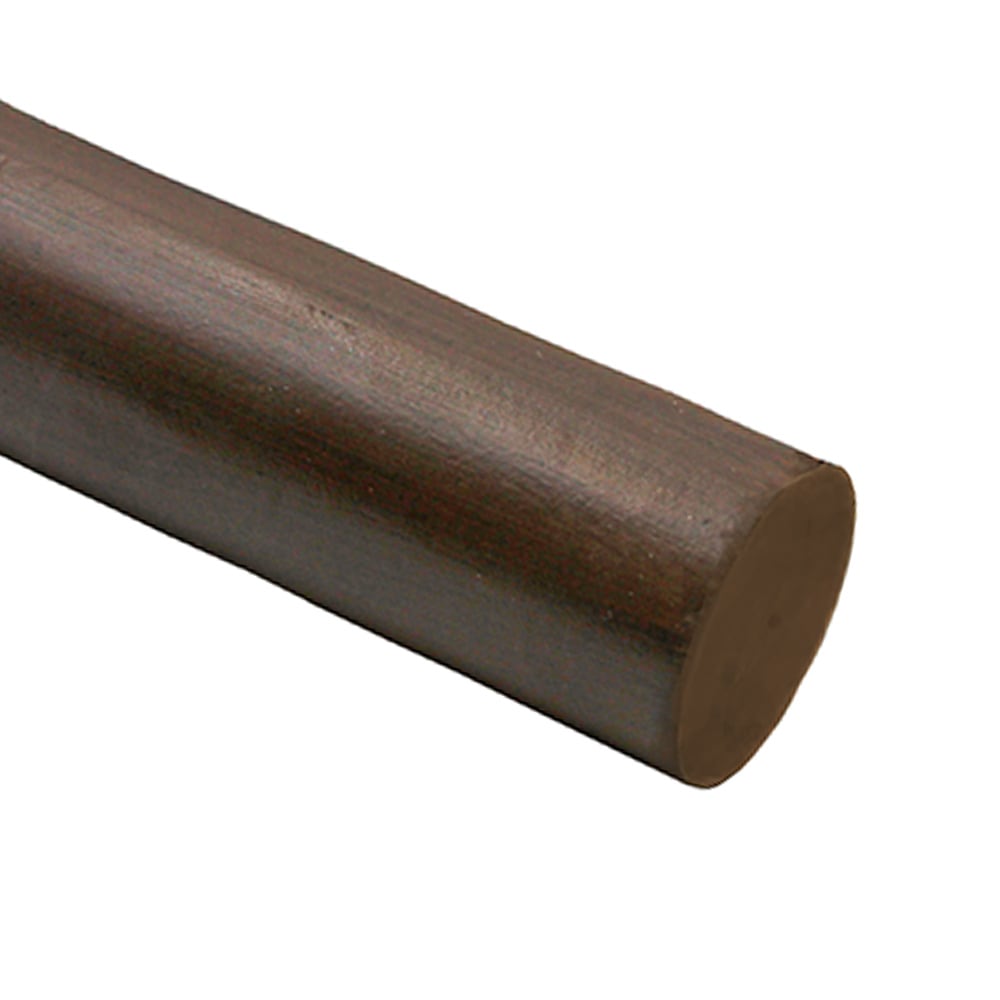

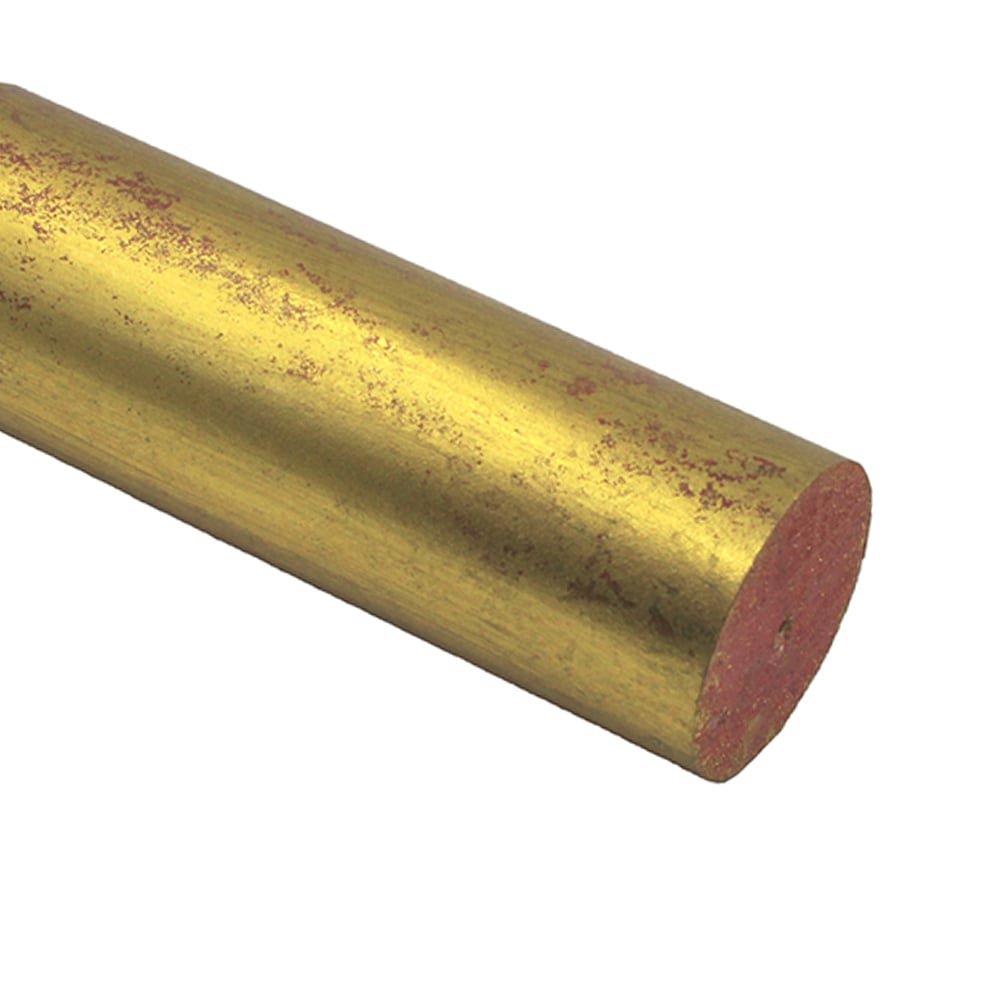

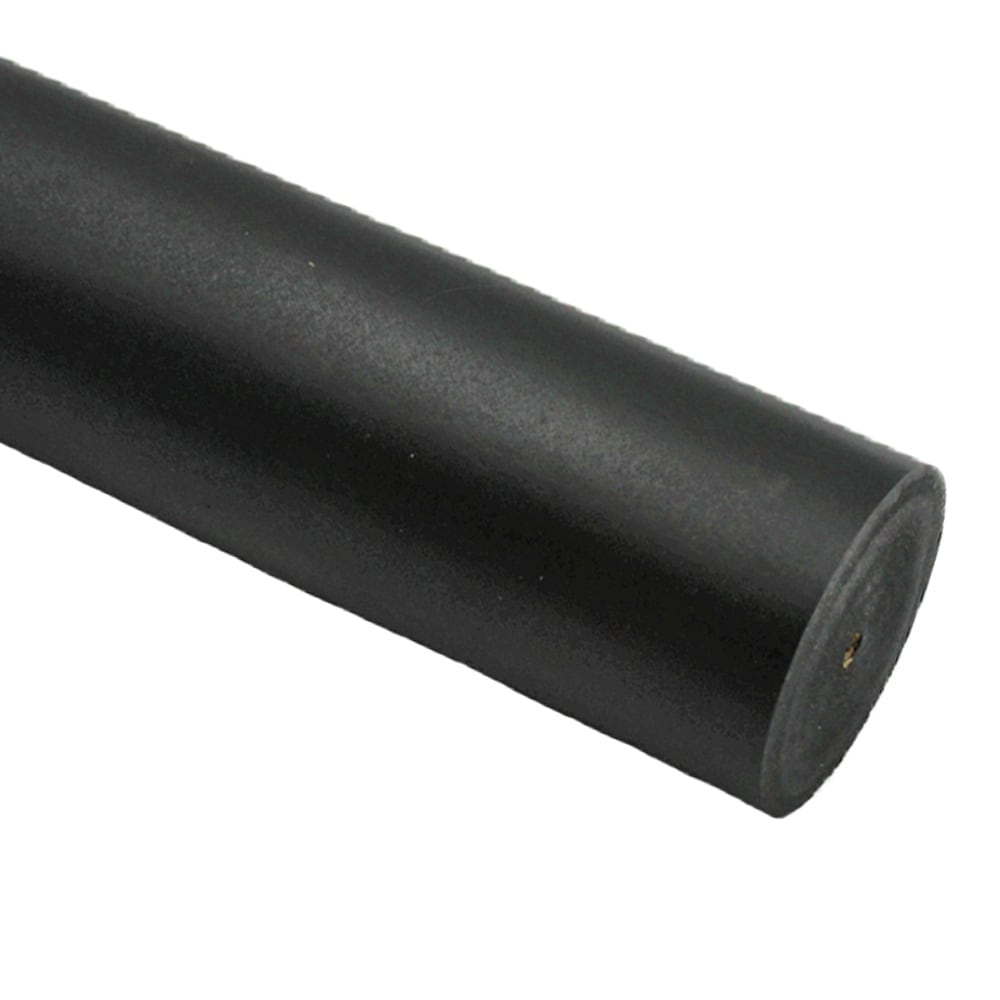

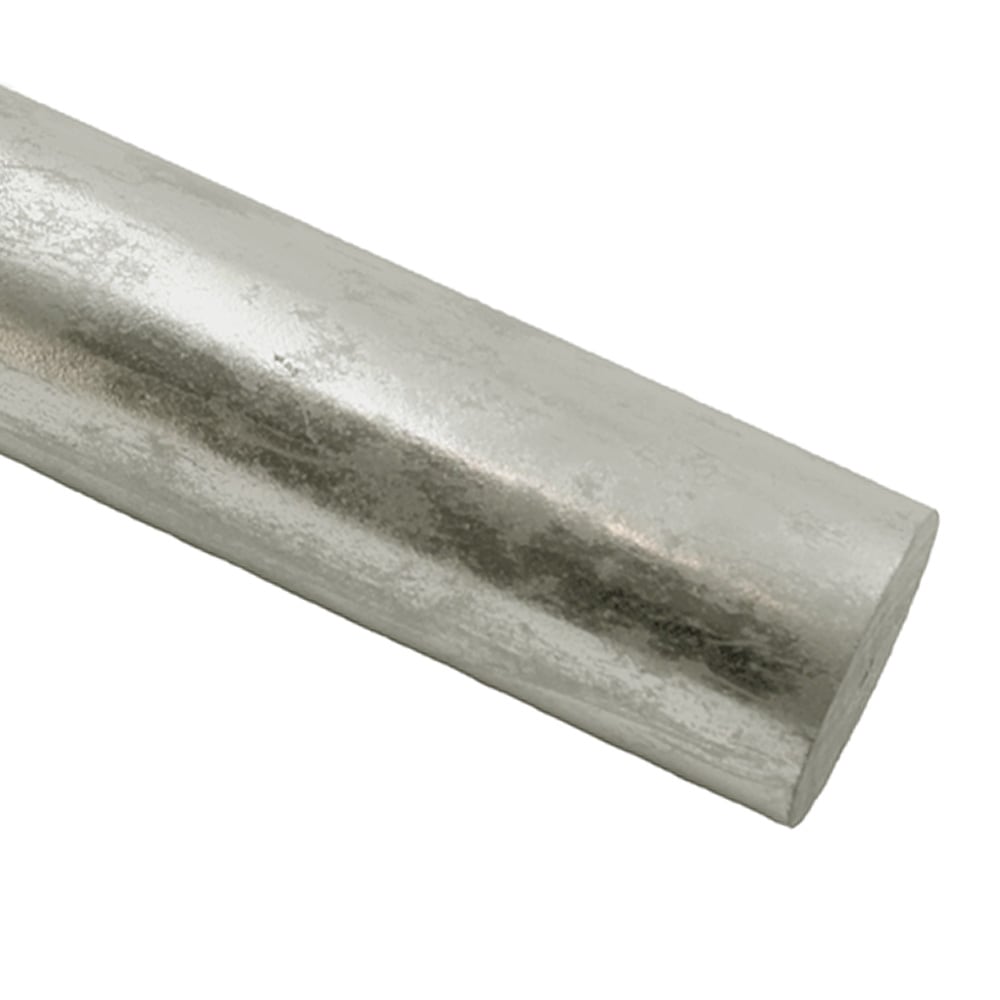

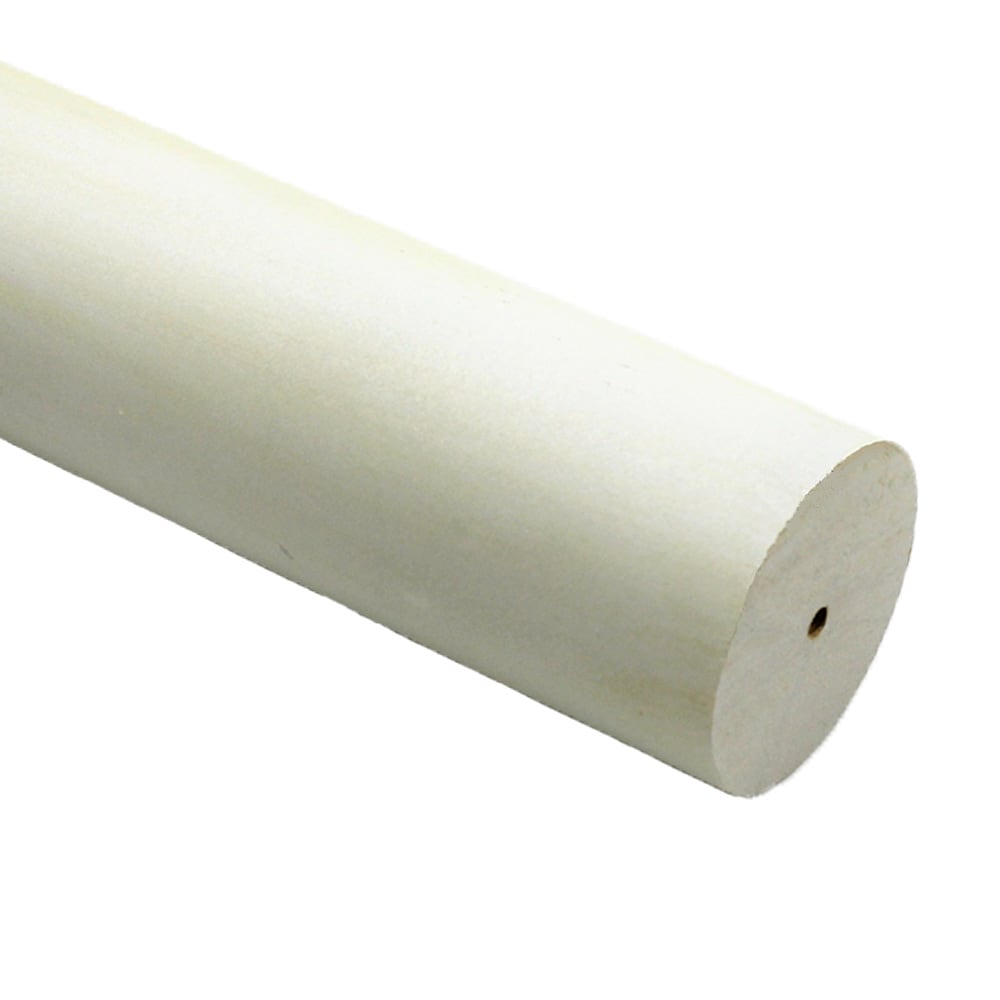

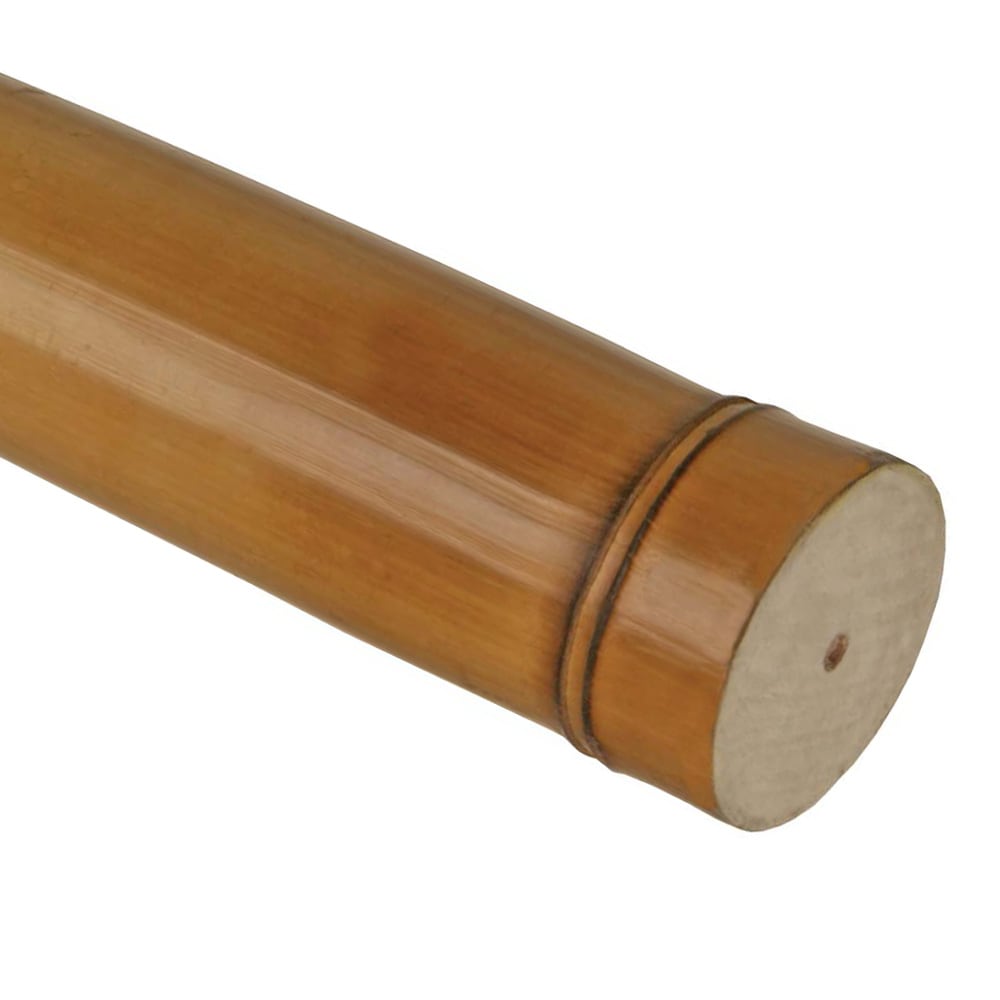

    2" Smooth Wooden Rod

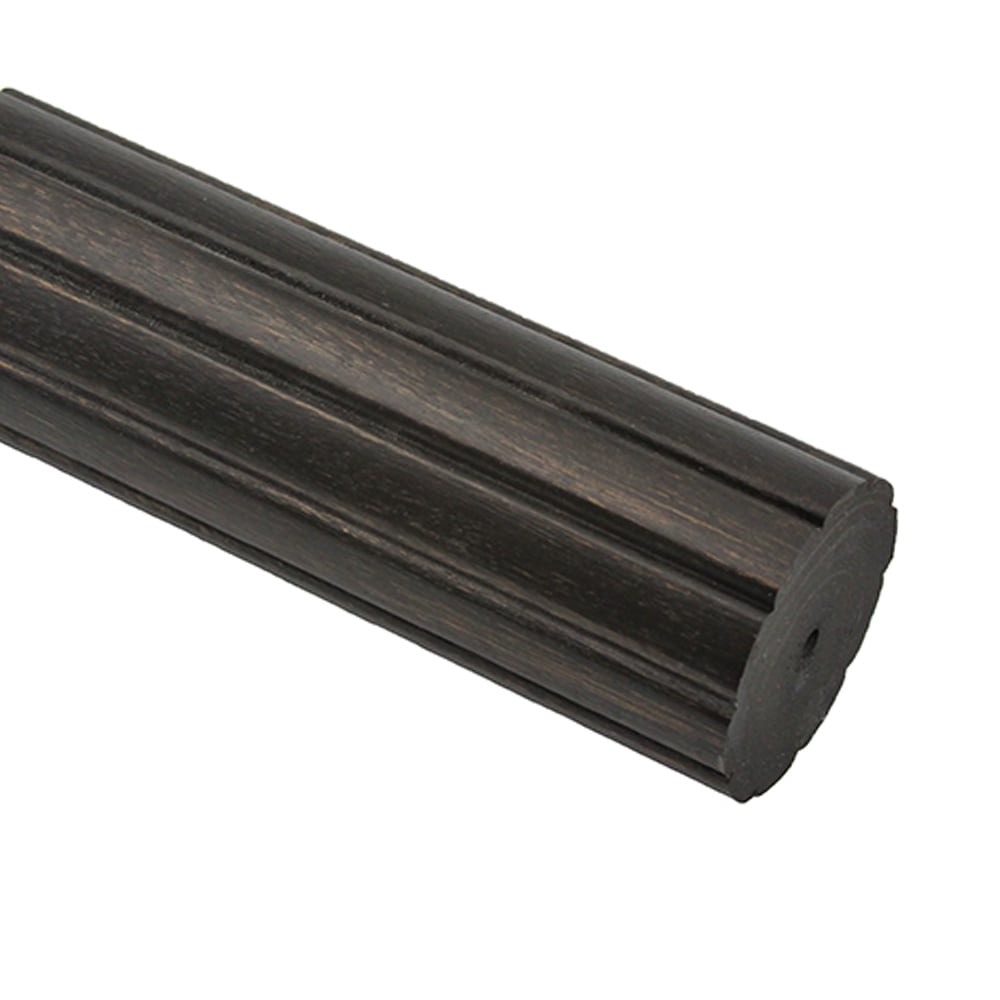

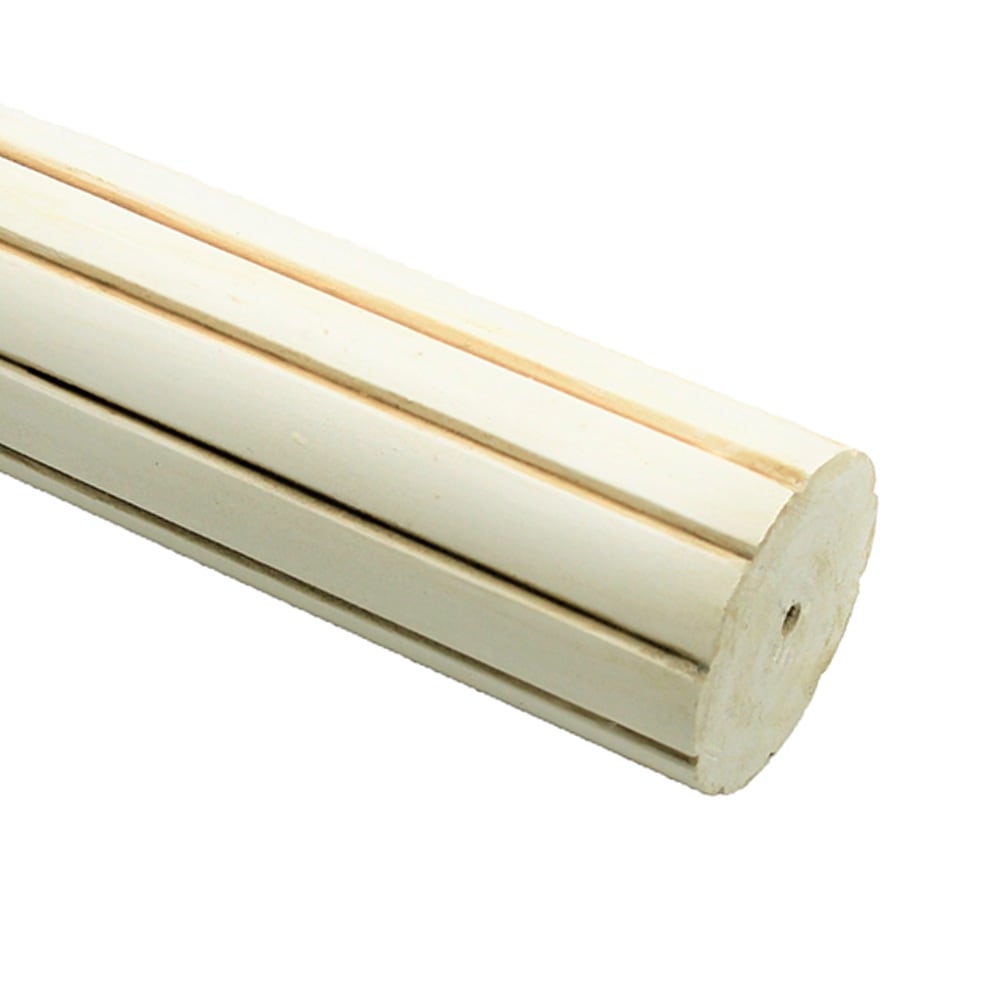

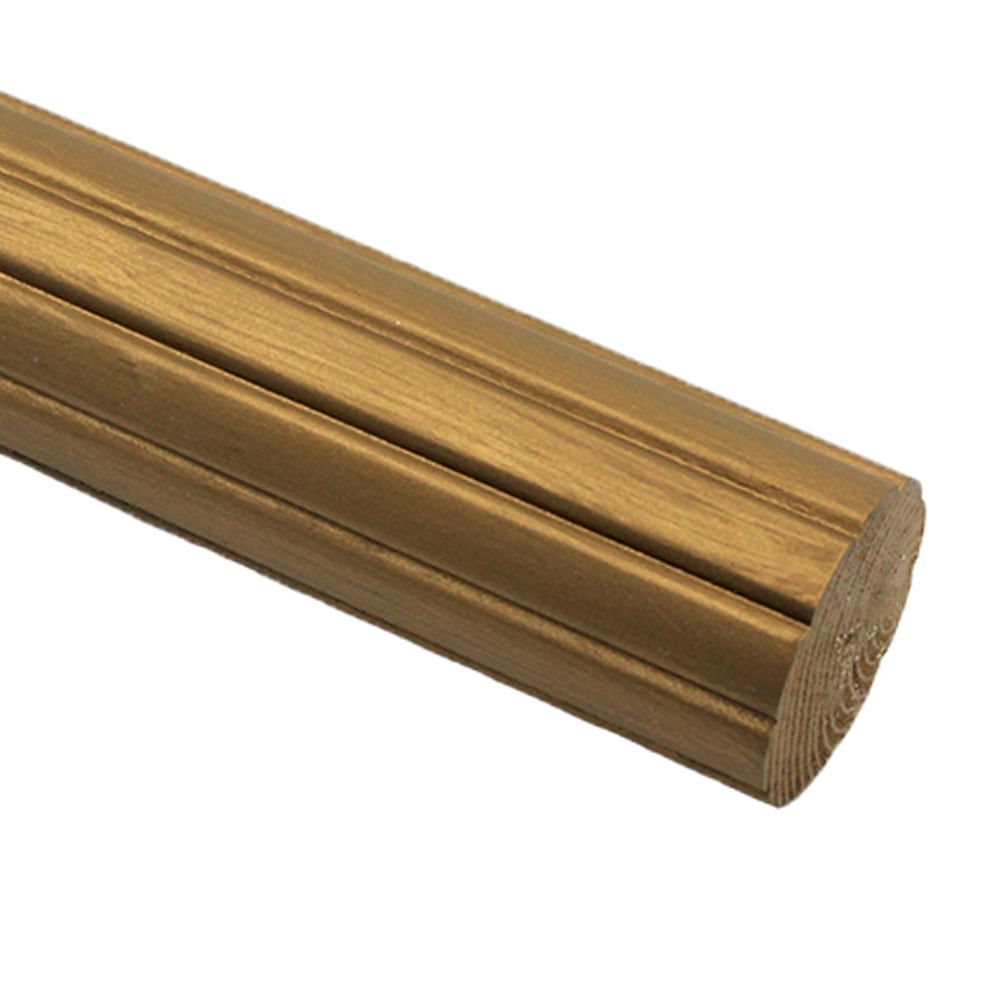

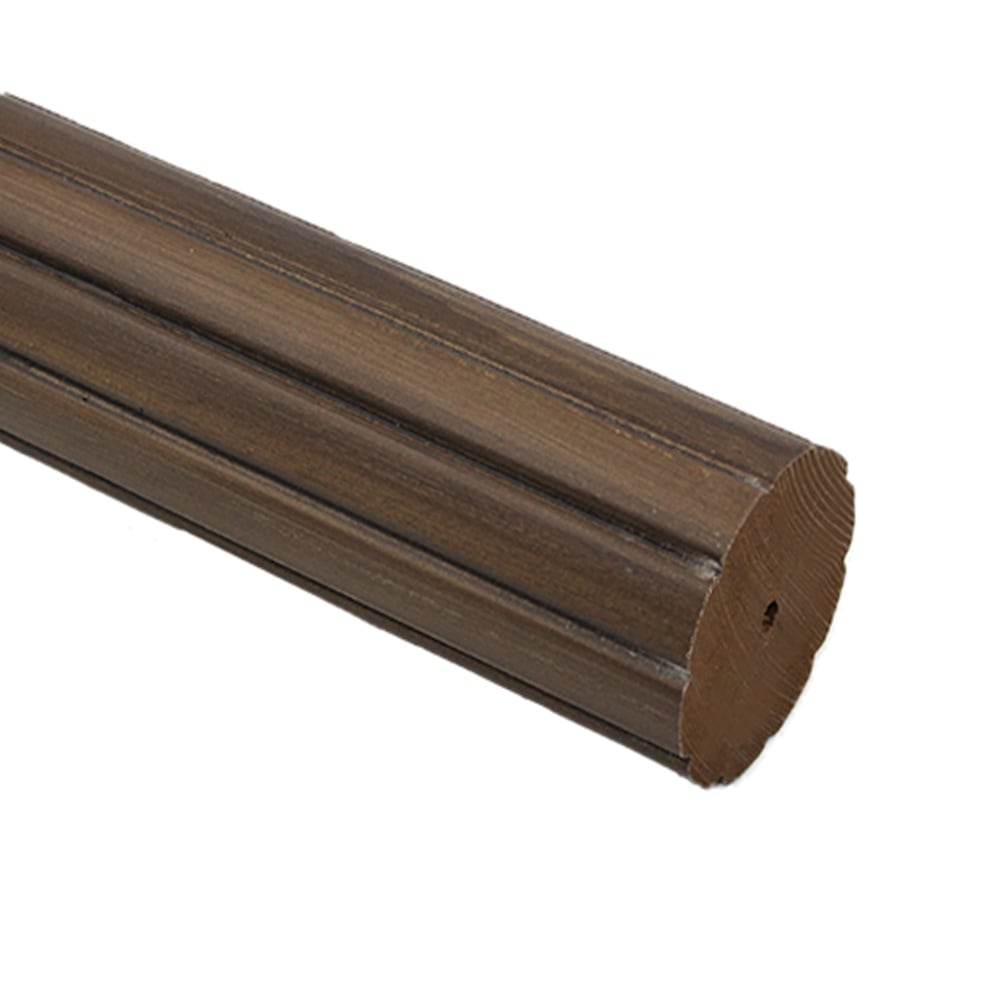

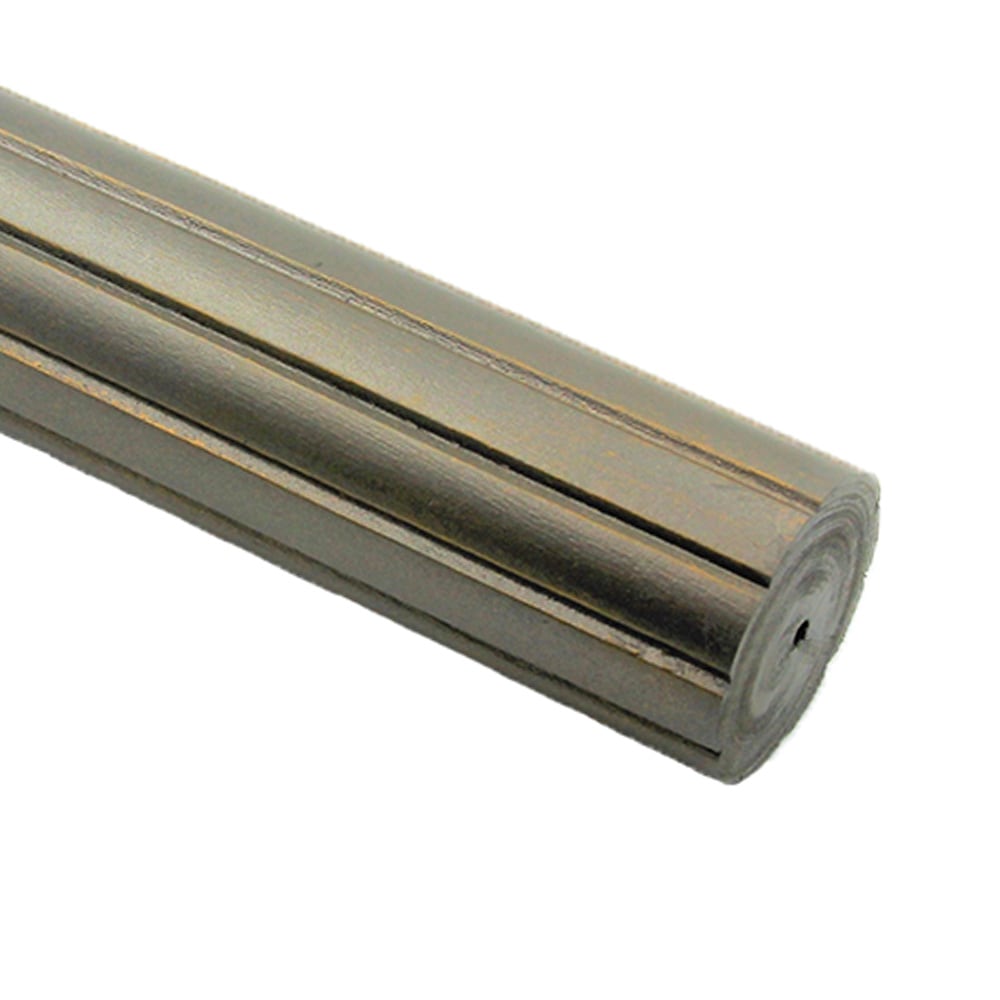

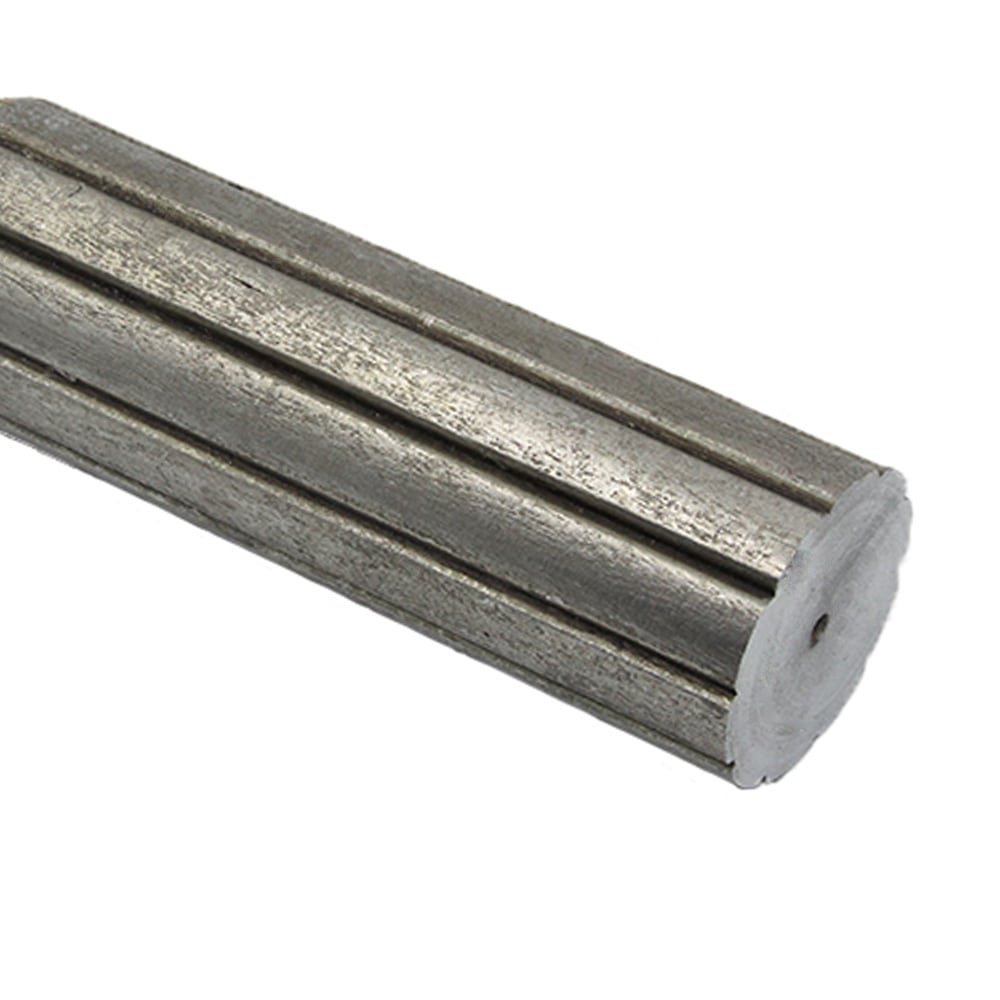

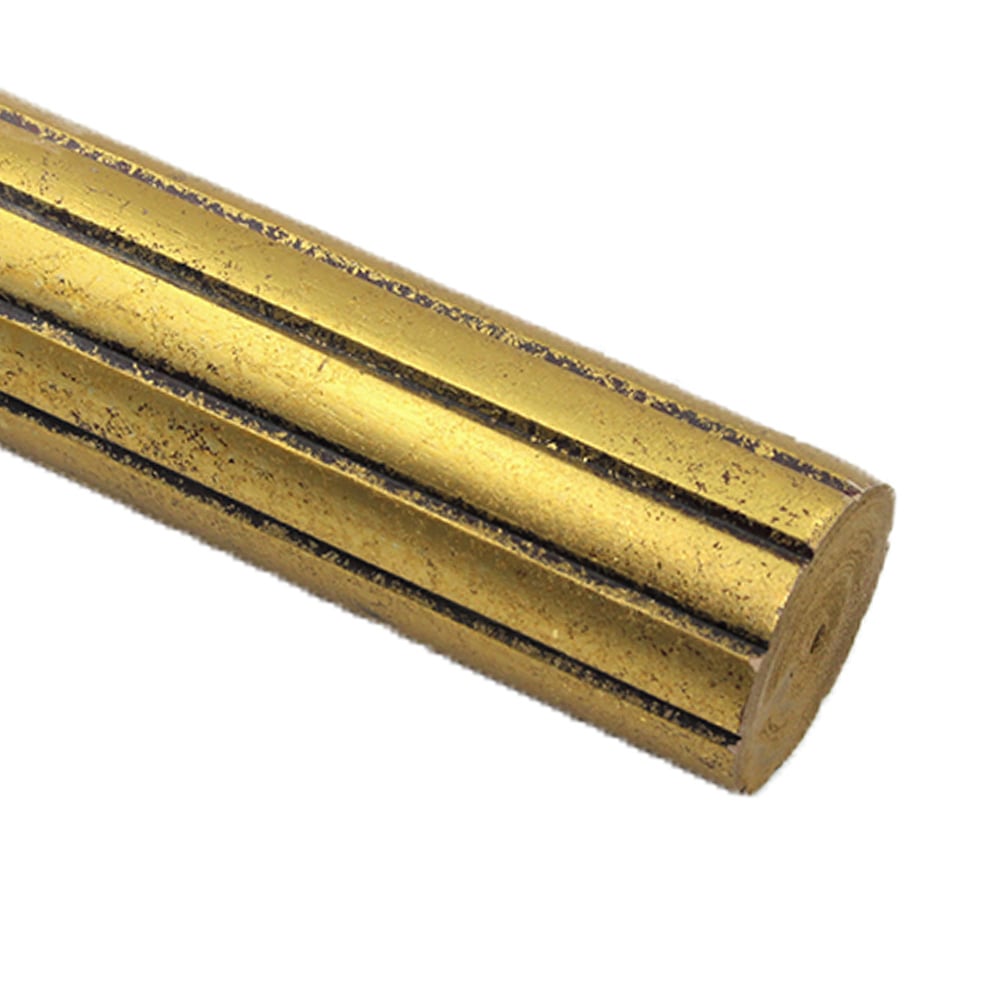

    2" Fluted Wooden Rod

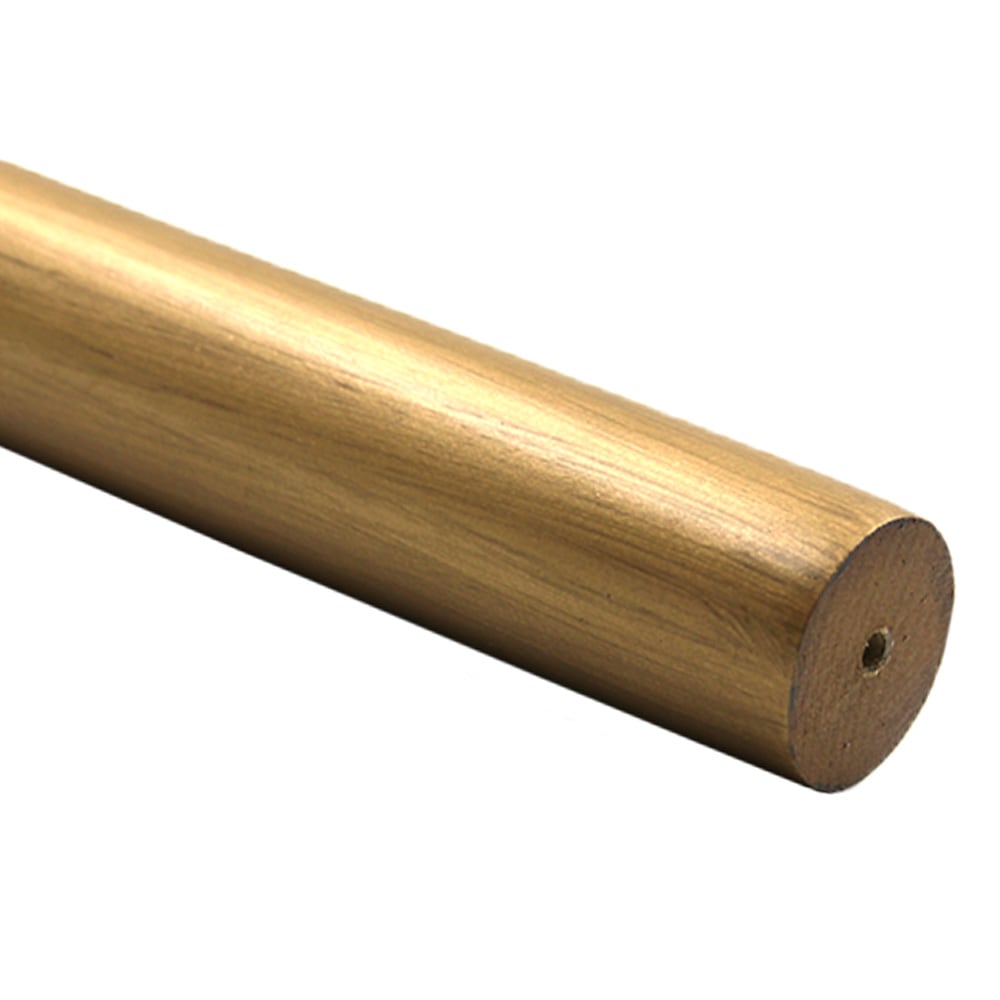

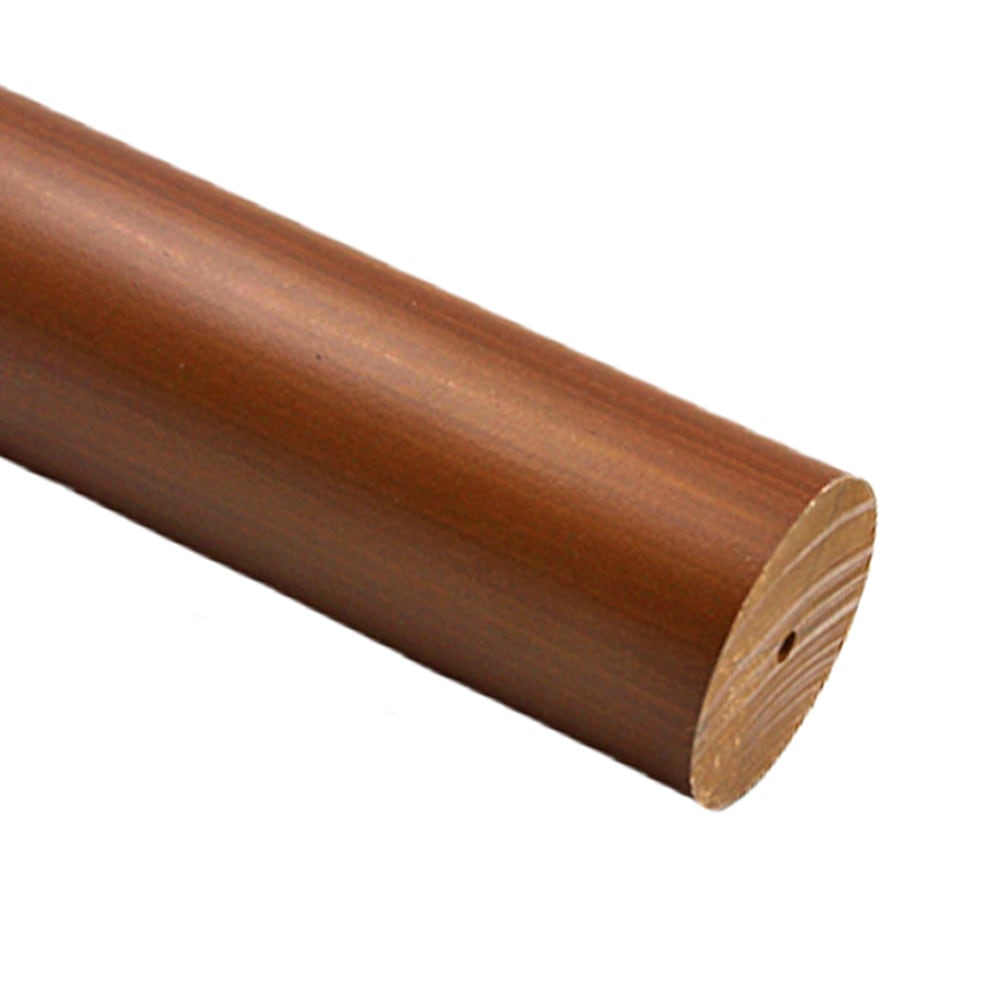

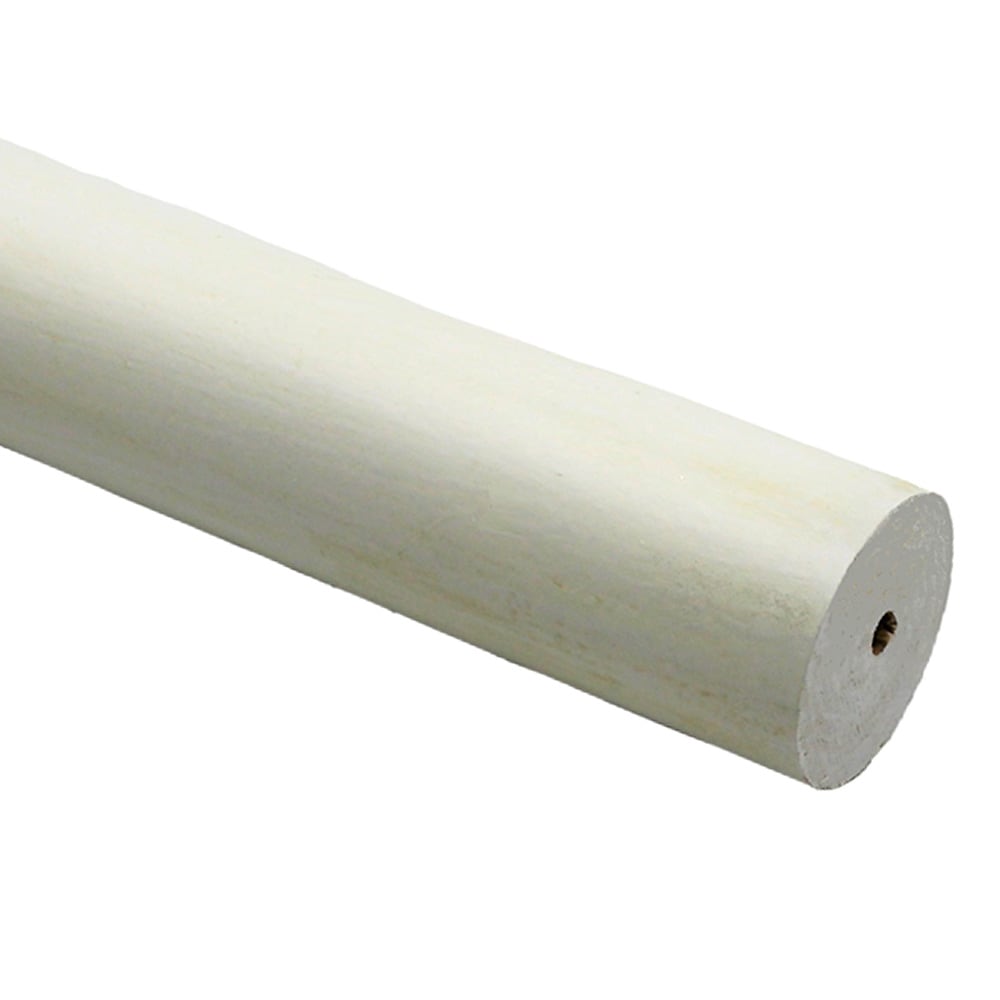

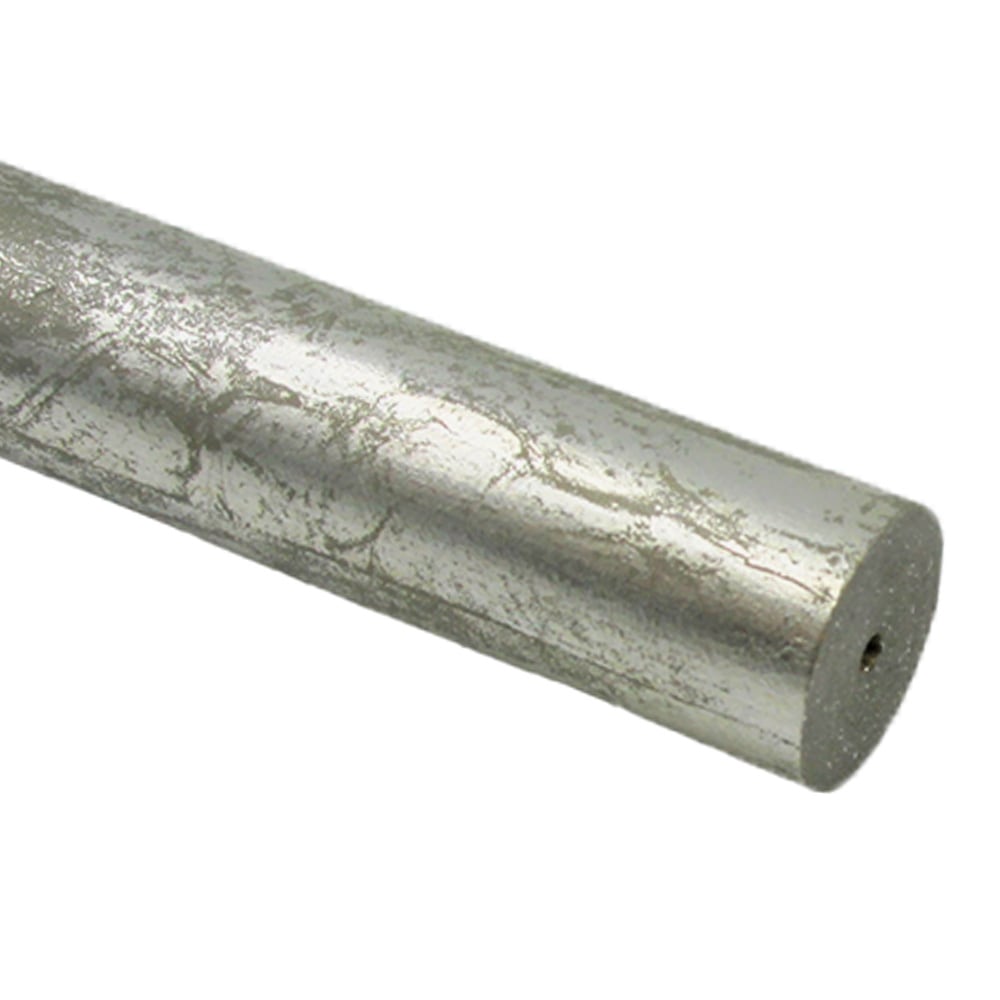

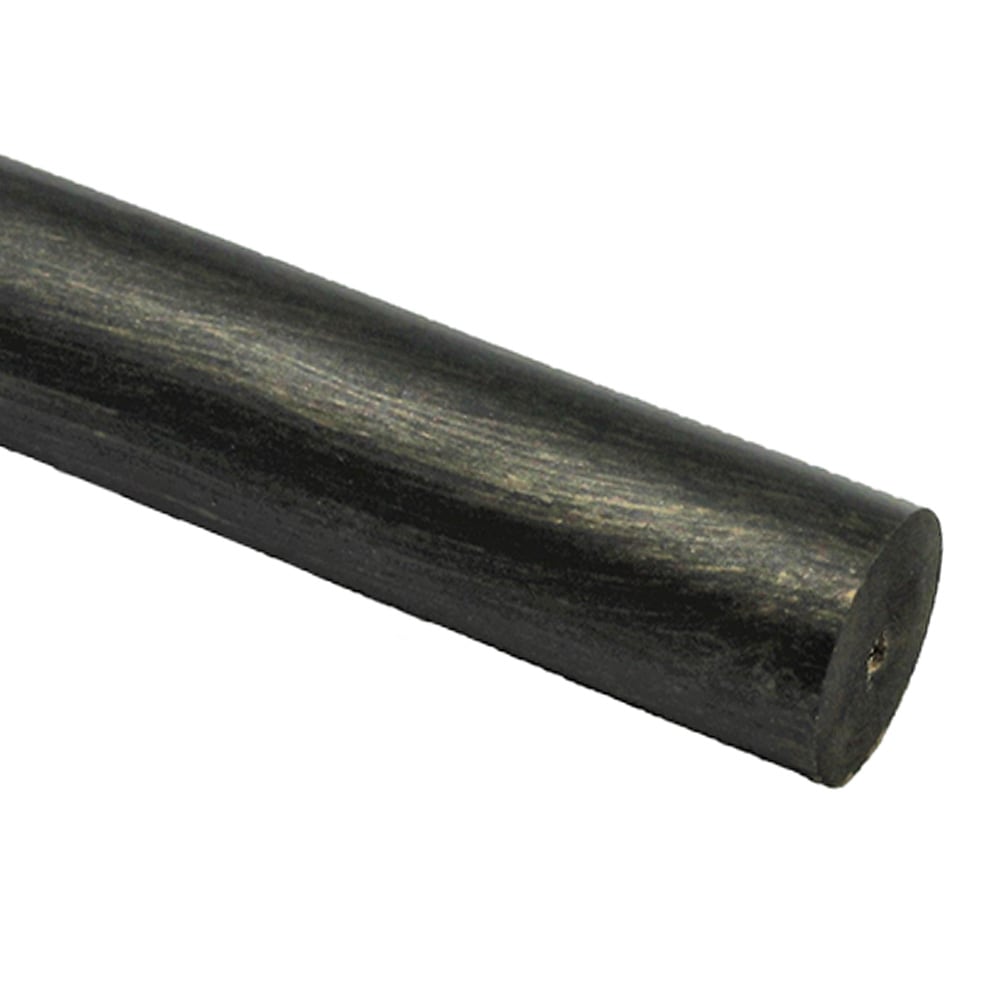

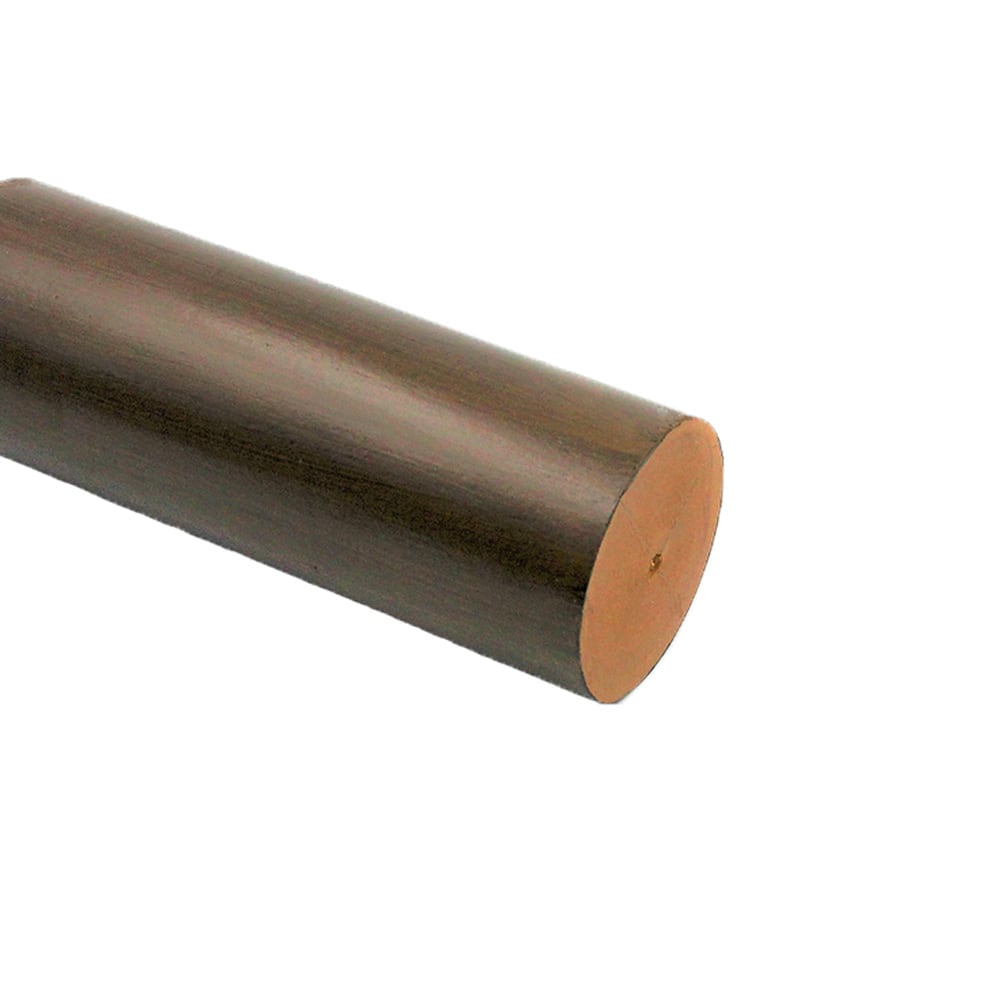

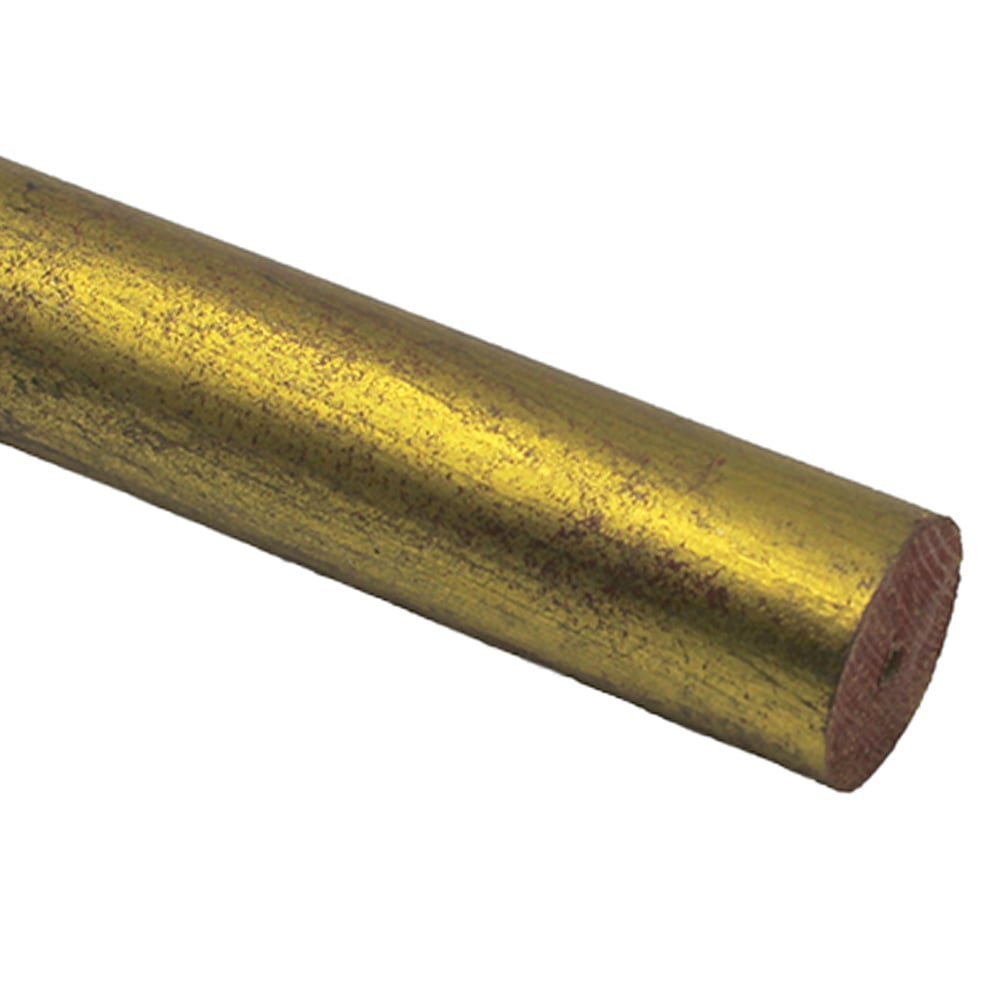

    1-3/8" Smooth Wooden Rod

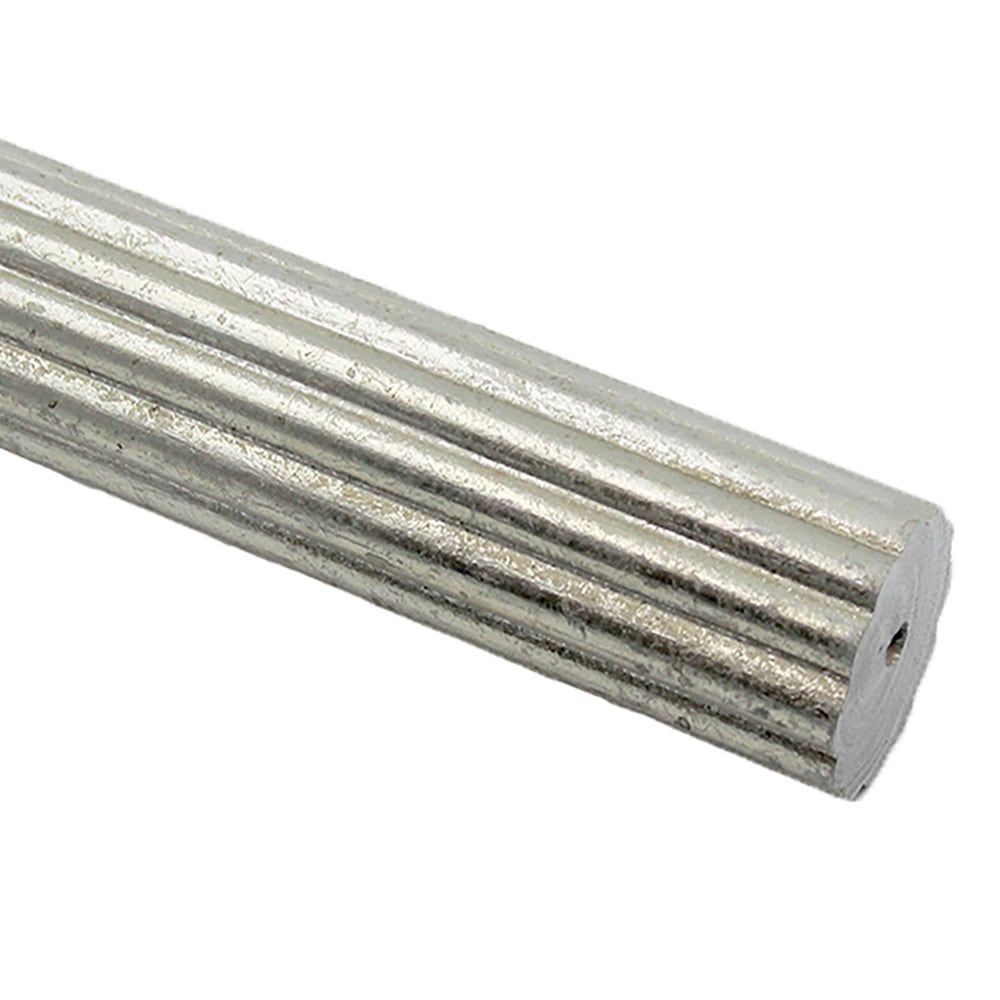

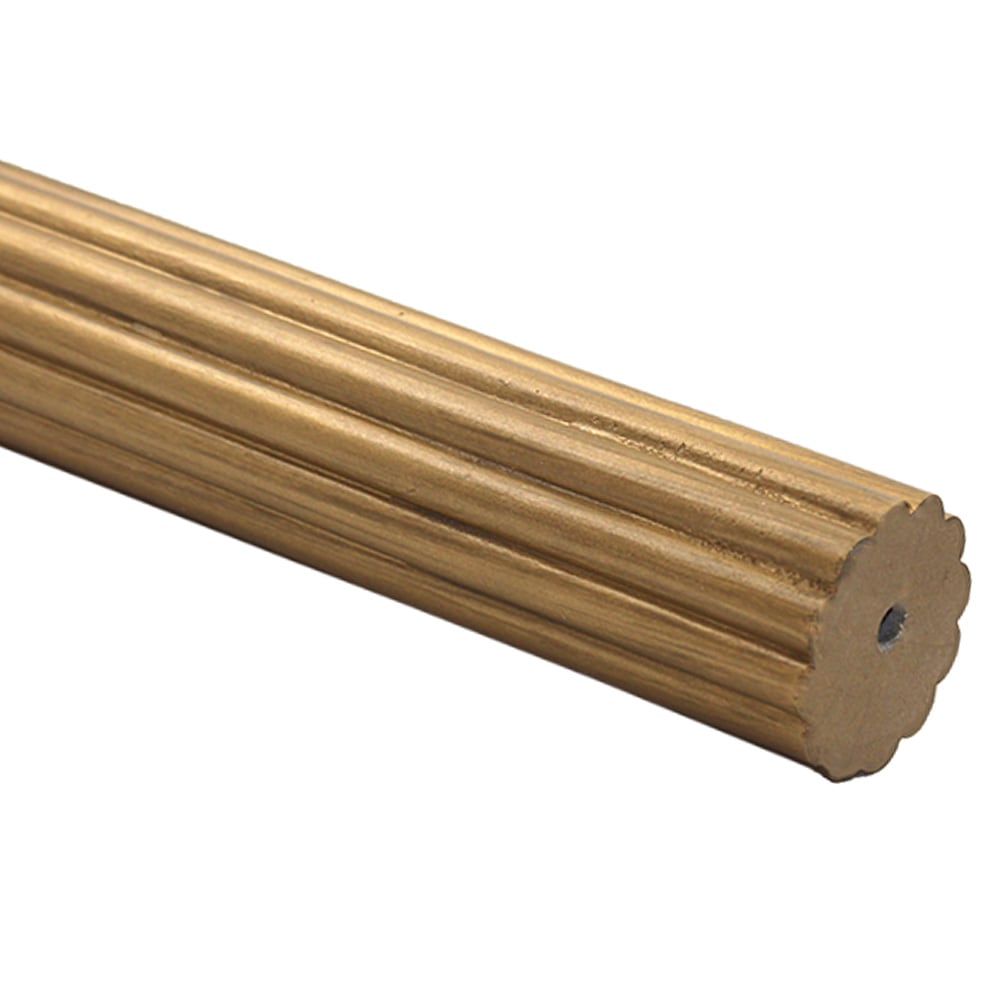

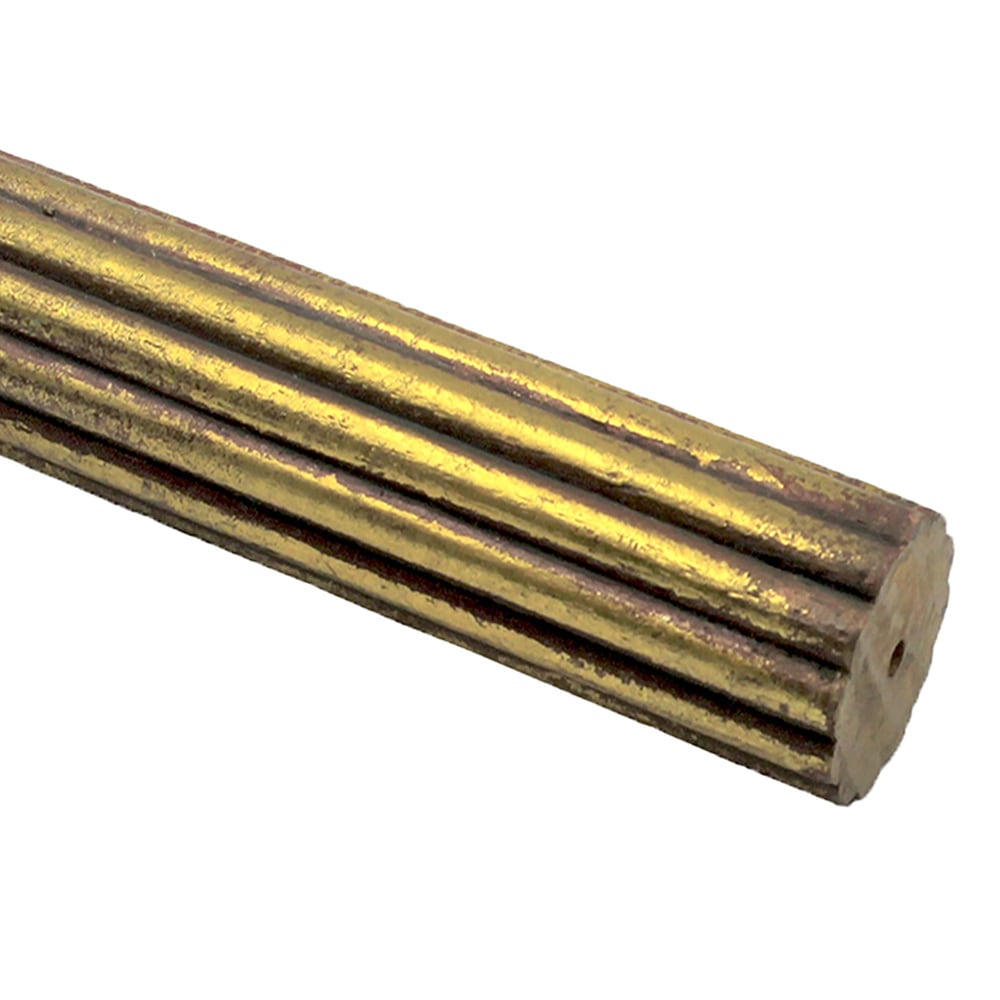

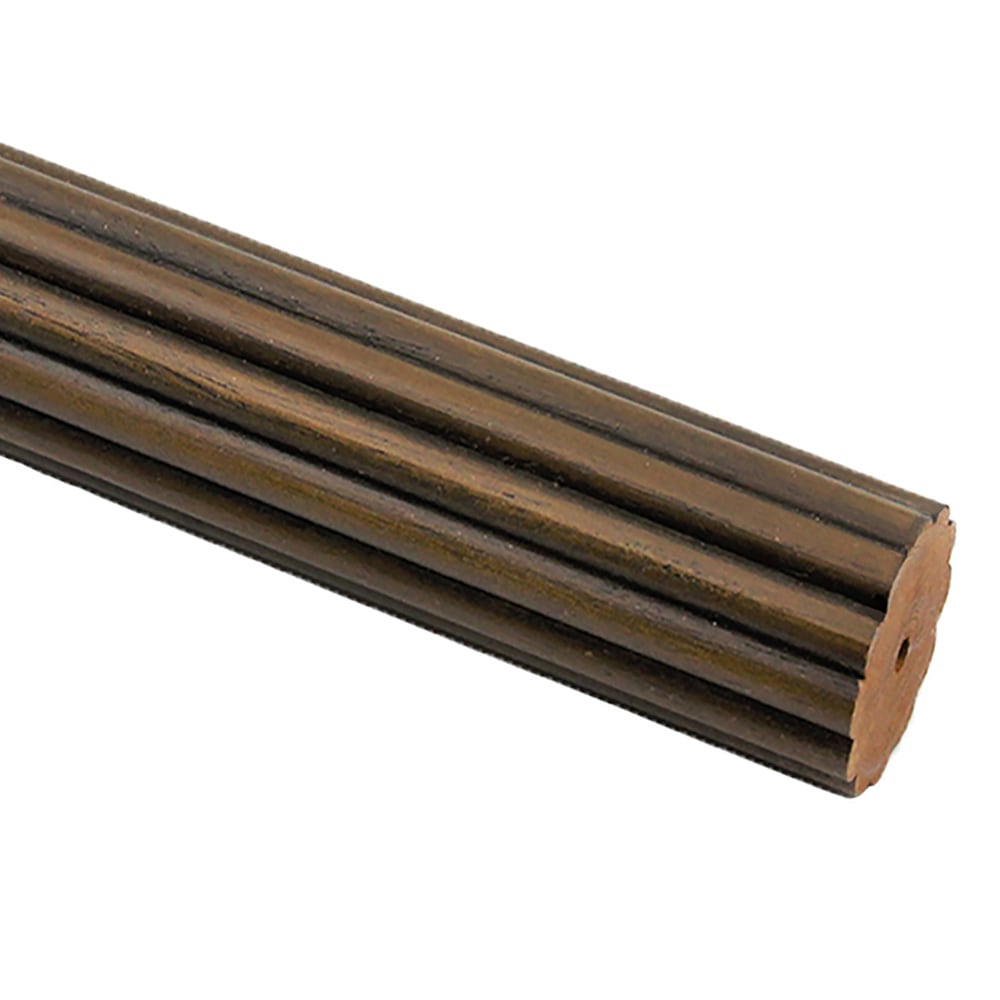

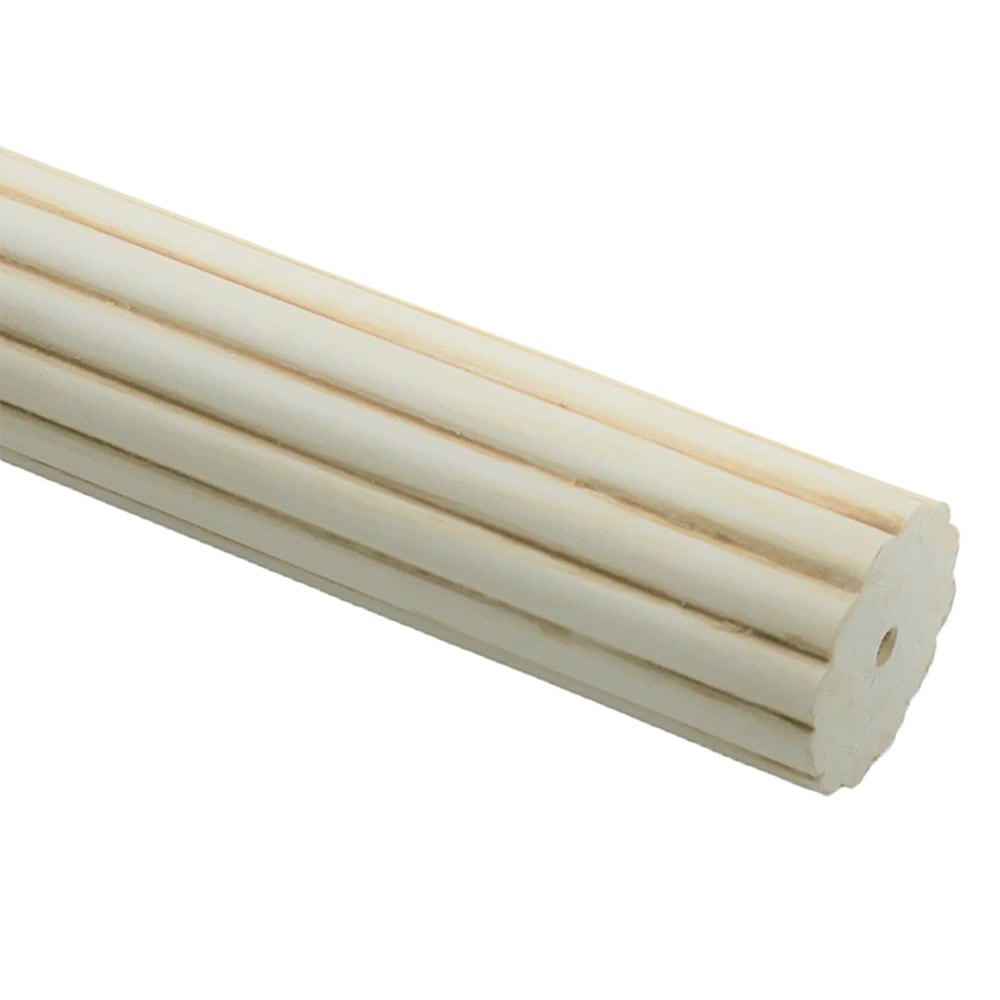

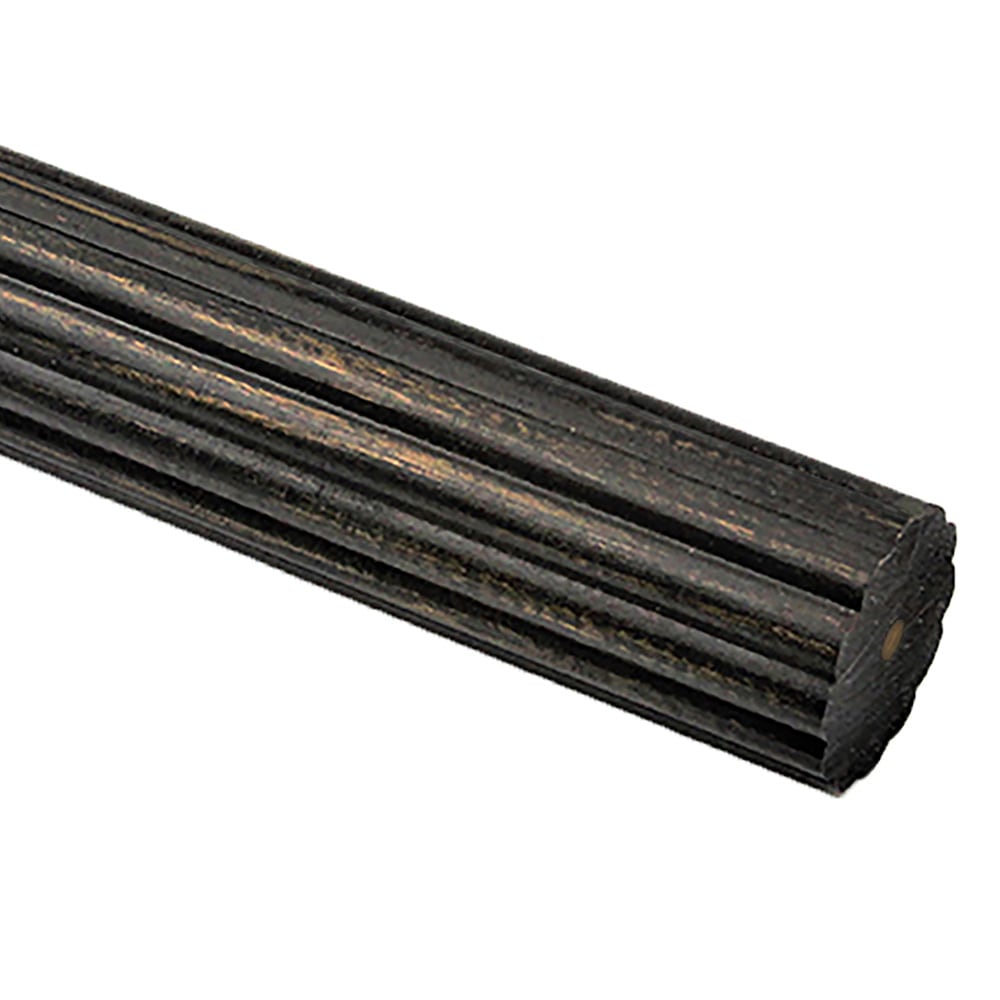

    1-3/8” Reeded Wooden Rod

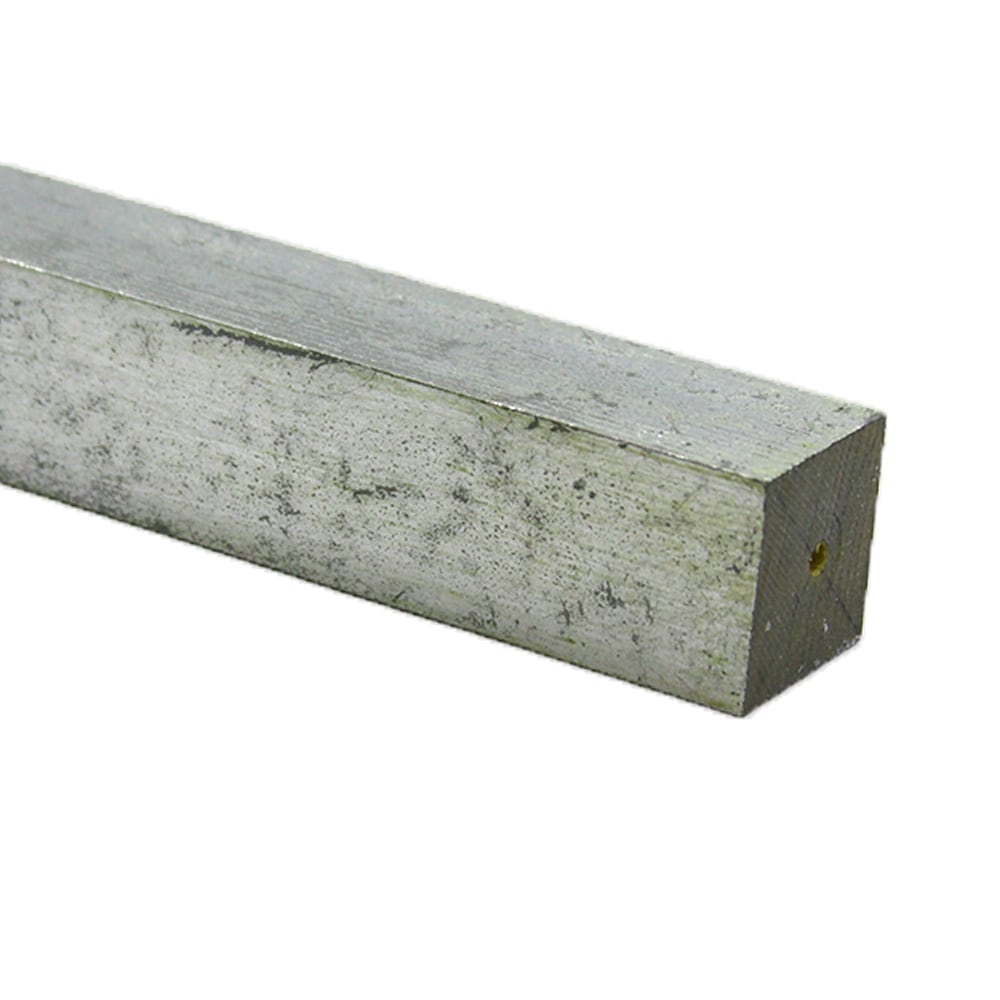

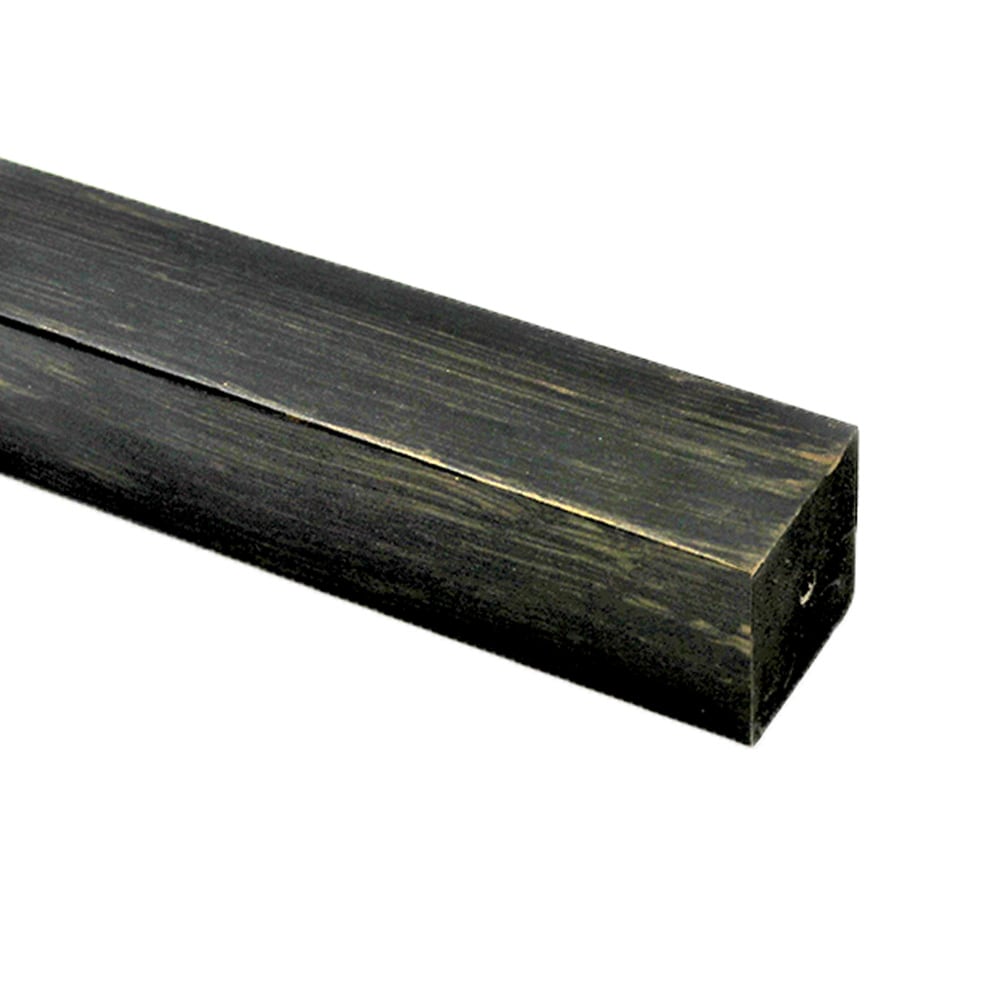

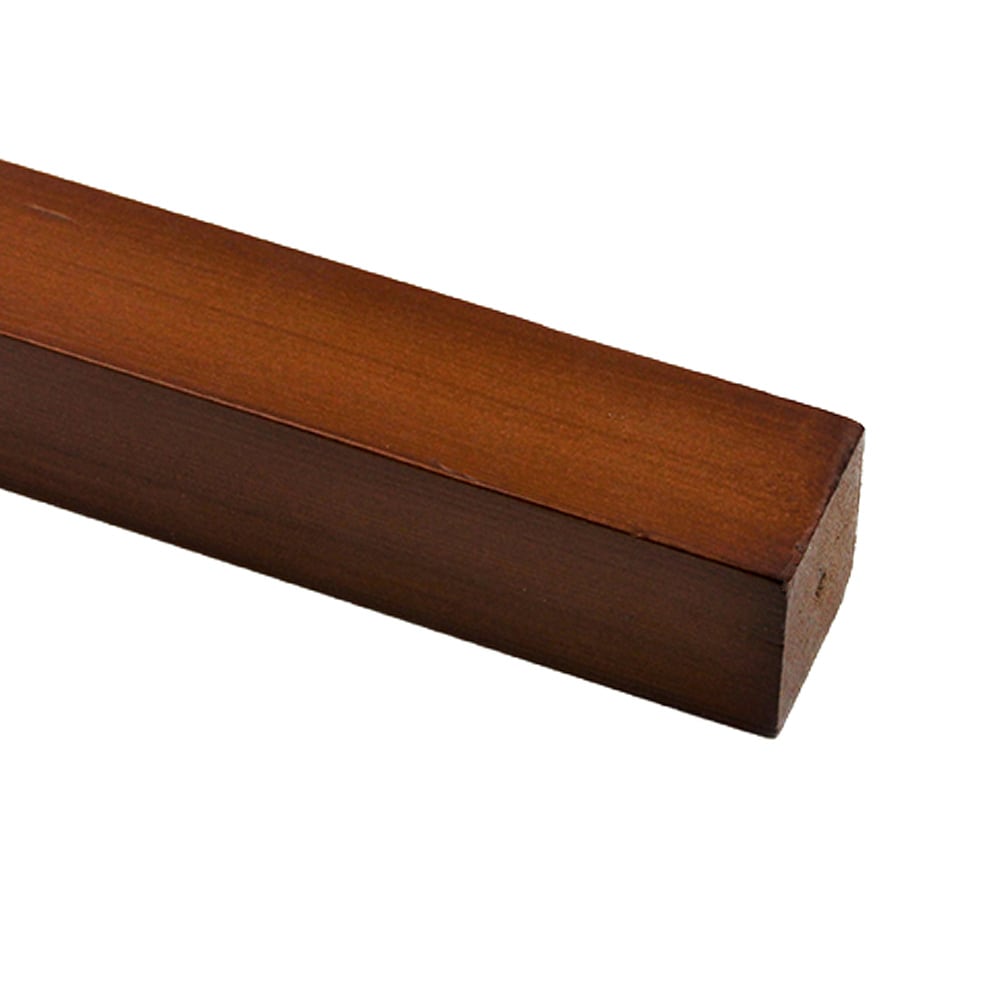

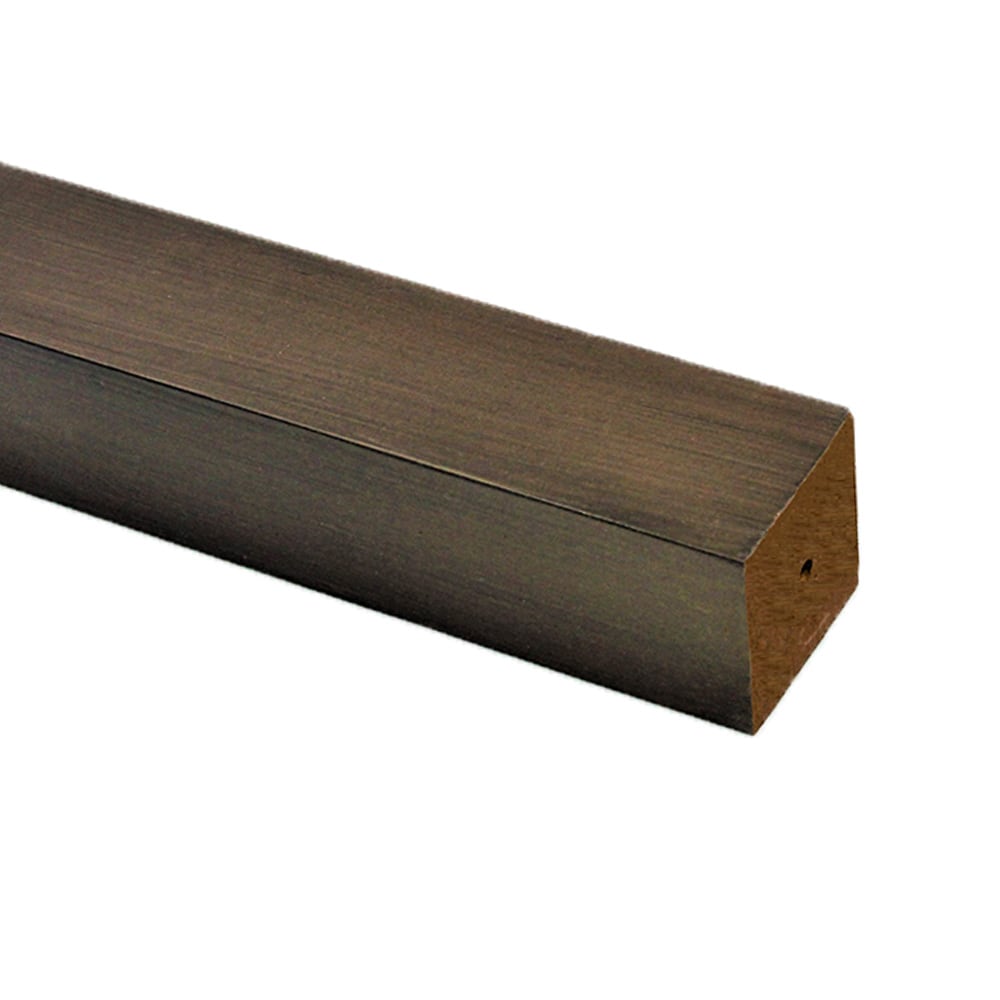

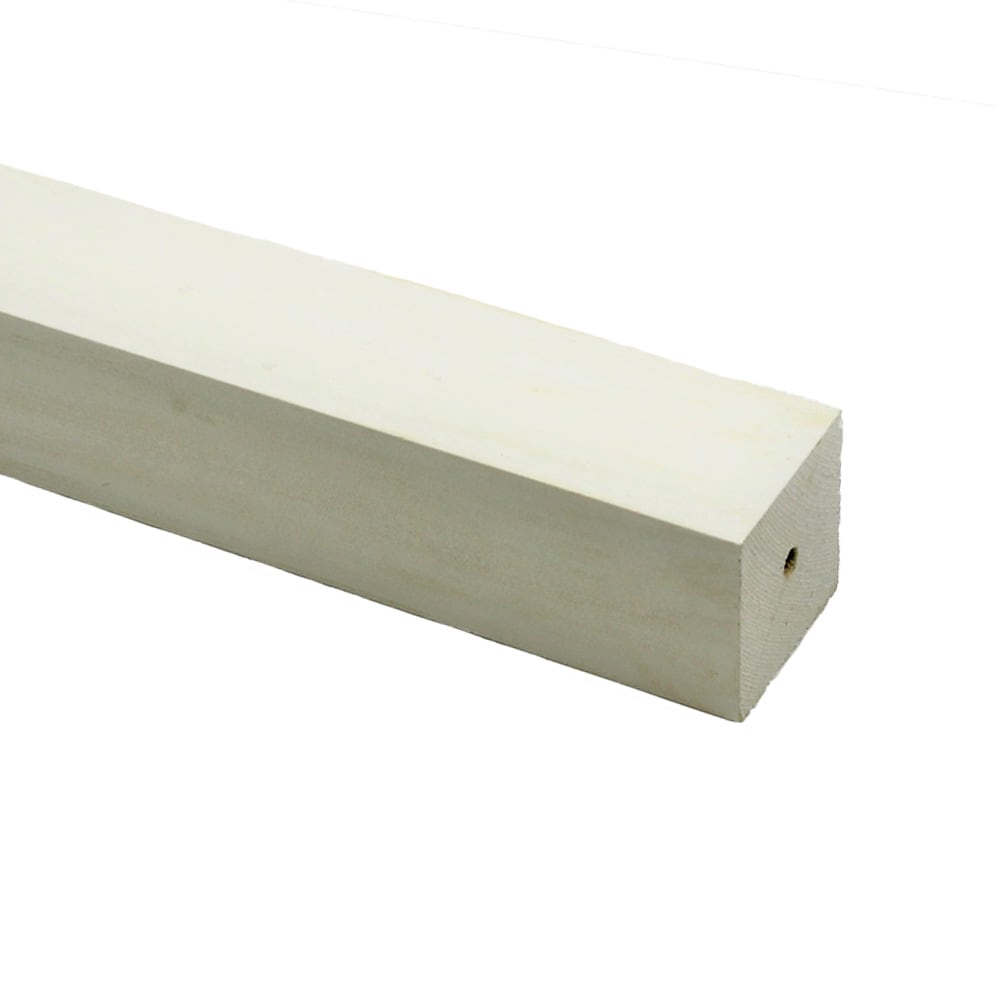

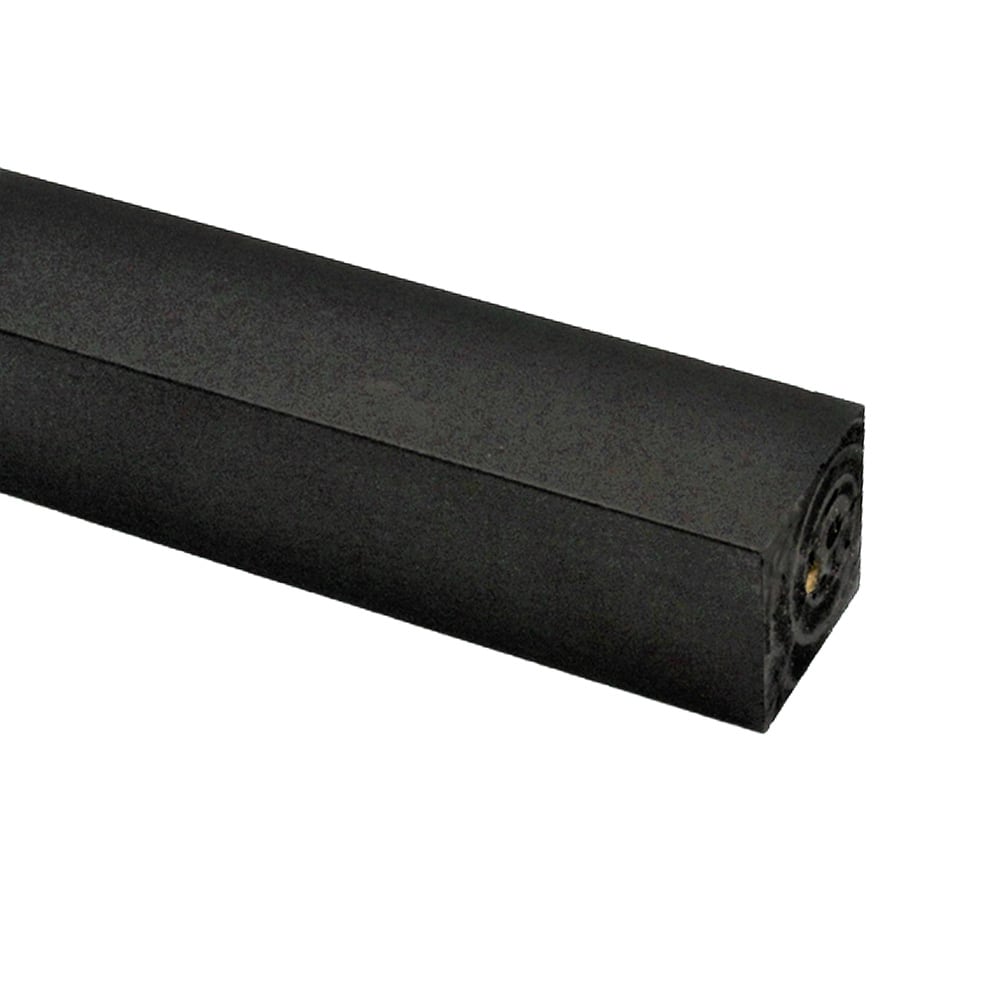

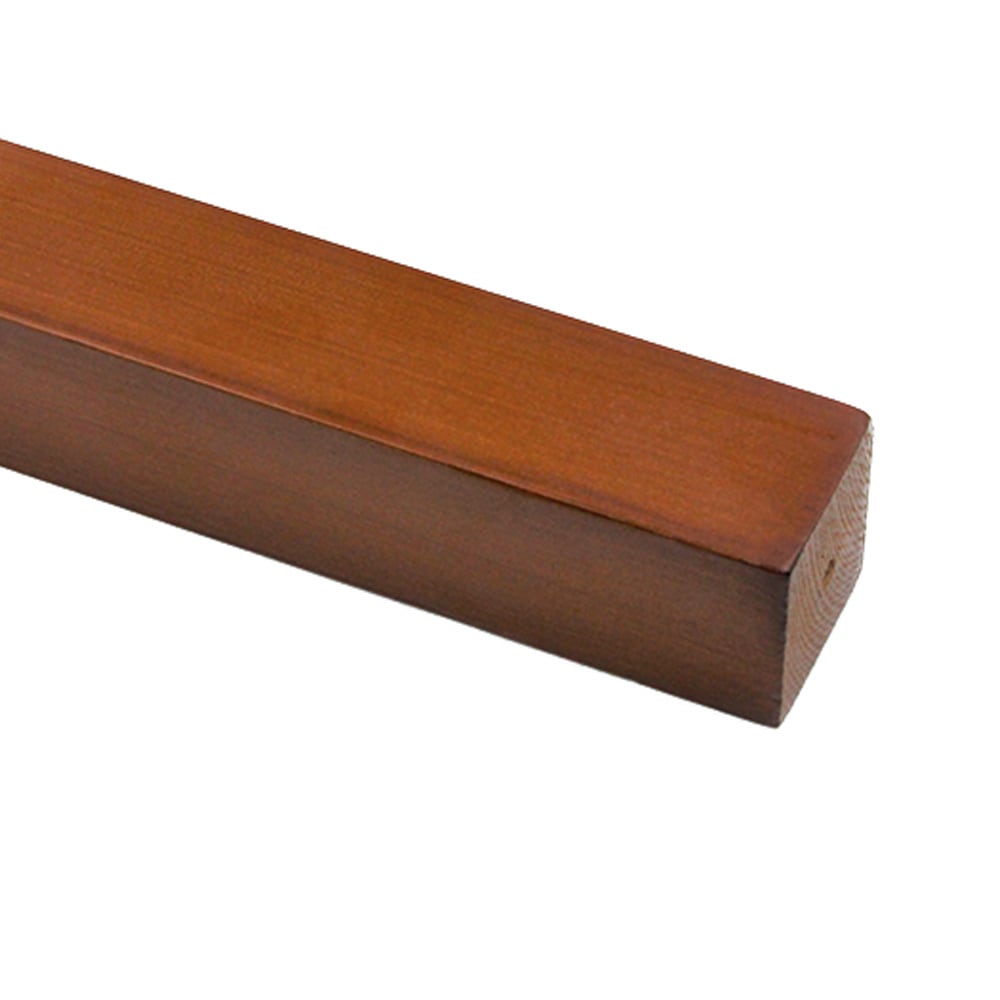

    1-3/8" Square Wooden Rod

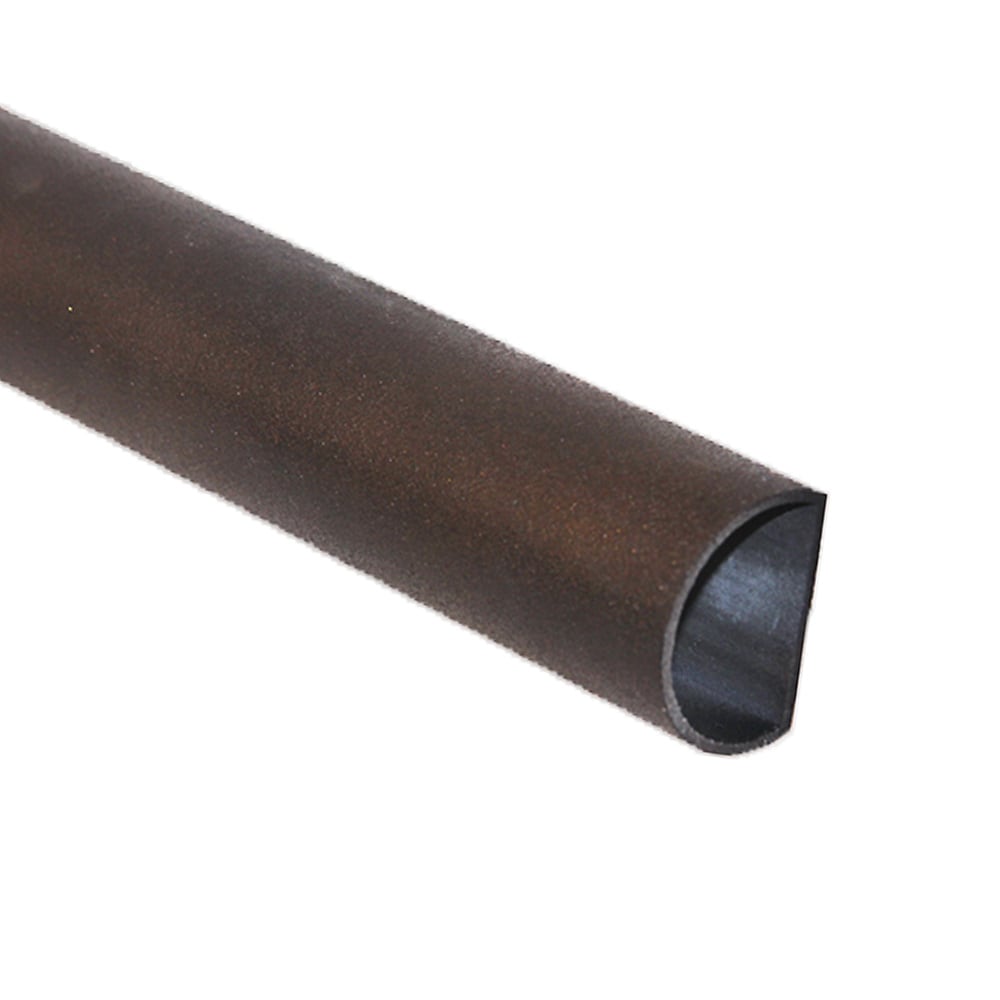

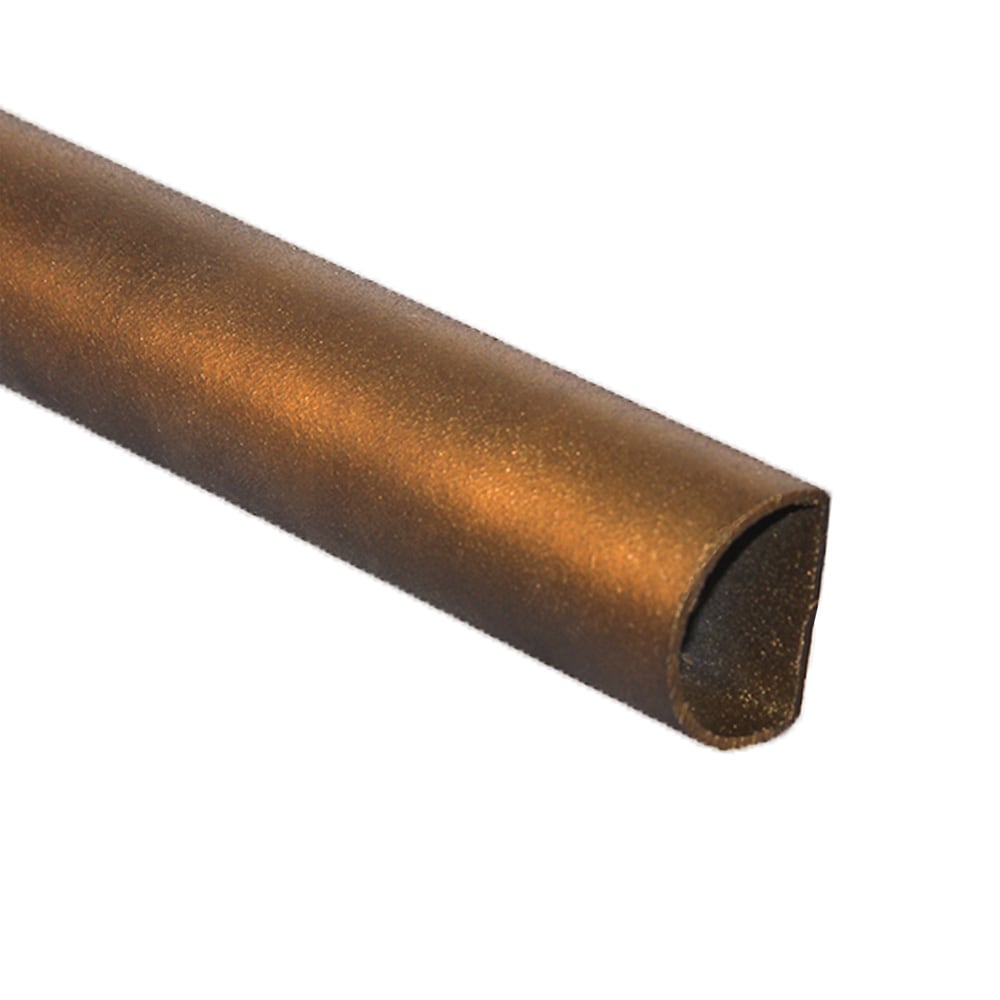

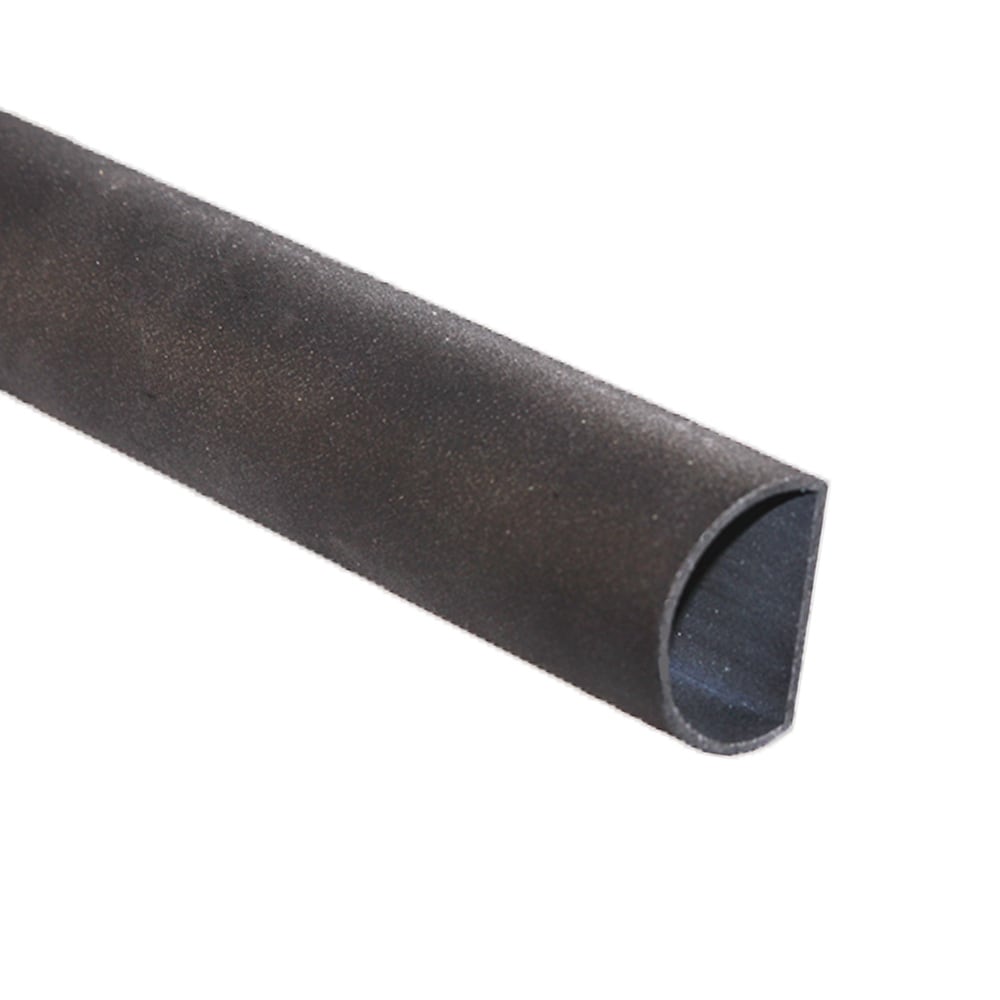

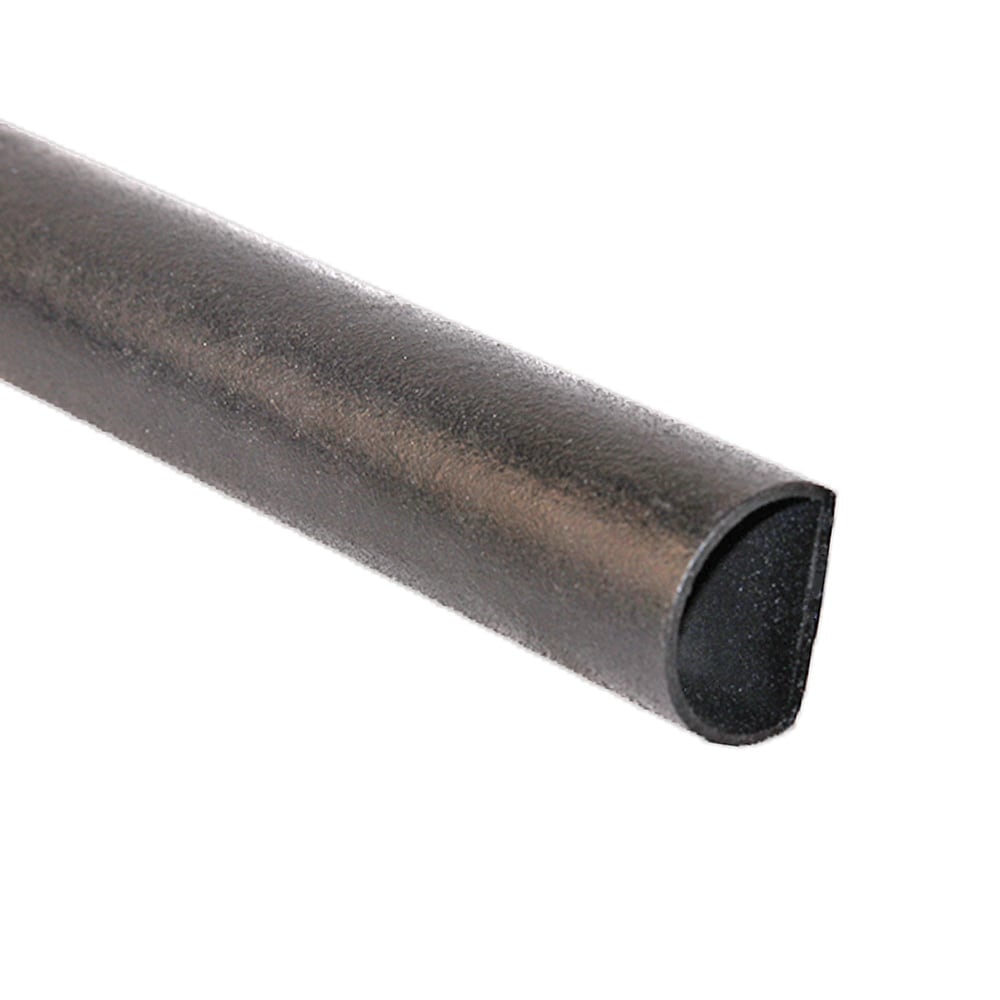

    1-1/4" Metal Rod

    No Fascia - Track Only

    Rod Fascia Finish

    Rod fascia will be 1/2" longer than the track so that the base of the finial can overlap the rod

    Antique Silver
    aw
    Faux Wood
    Black Walnut
    Fruitwood
    Gilded Gold
    Vintage Gold
    Soho Ebony
    Urban Bronze
    Aged White
    Walnut
    Bronze/Black
    Grey/Gold
    Bamboo
    Antique Silver
    aw
    Faux Wood
    Gilded Gold
    Vintage Gold
    Aged White
    Grey/Gold
    Bronze/Black
    Antique Silver
    Faux Wood
    Fruitwood
    Gilded Gold
    Vintage Gold
    Soho Ebony
    Aged White
    Walnut
    Bronze/Black
    Urban Bronze
    Antique Silver
    Faux Wood
    Gilded Gold
    Vintage Gold
    Aged White
    Bronze/Black
    Antique Silver
    Fruitwood
    Gilded Gold
    Soho Ebony
    Urban Bronze
    Aged White
    Walnut
    Faux Wood
    Flaxen Gold
    Old World Bronze
    Old World Black
    Gunmetal

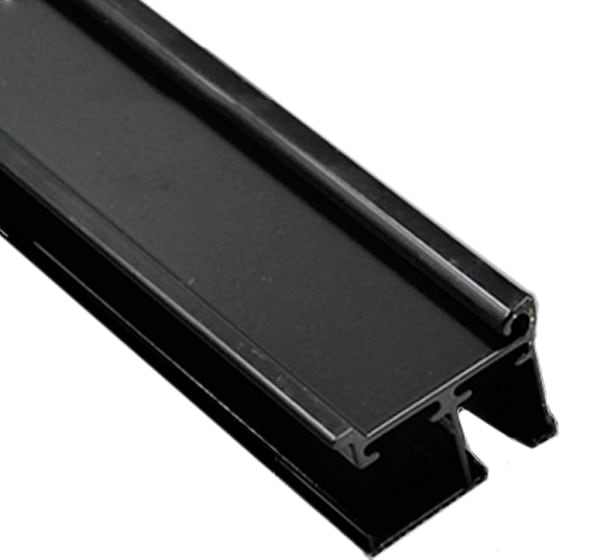

    Track Finish

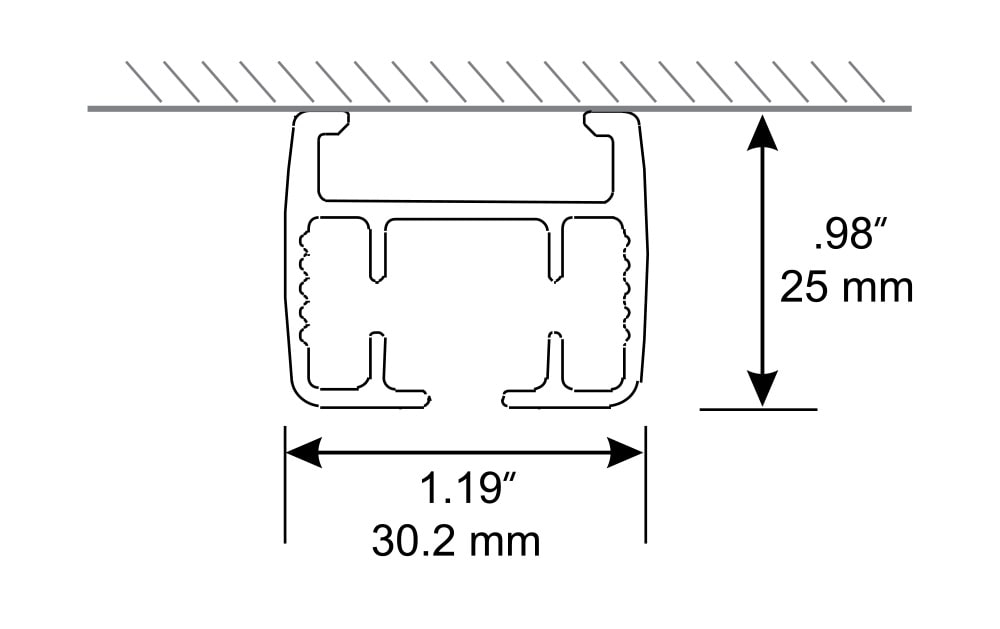

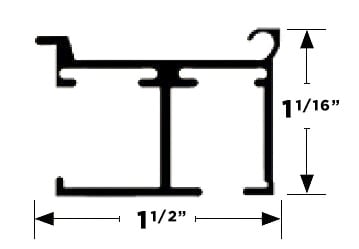

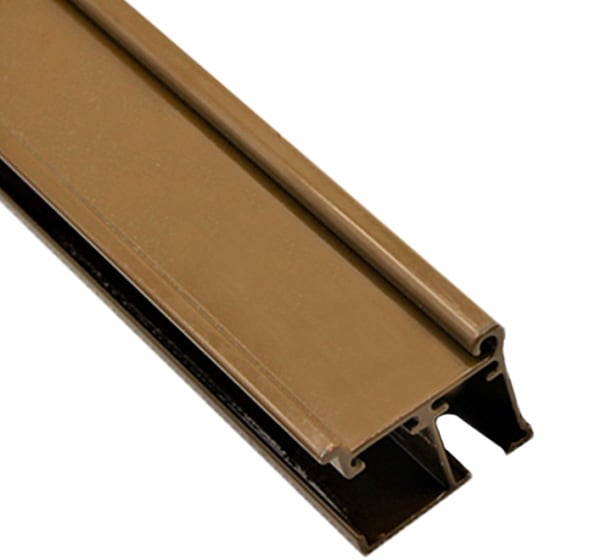

    Track Measurements

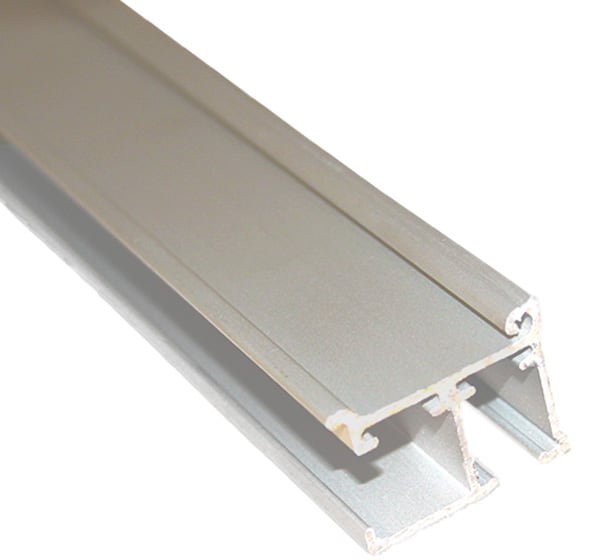

    Track is available in three powder coated finish colors (medallion gold, dark bronze, and white), or anodized aluminum.

    NOTE: We have provided the recommended powder-coated finish for the dual-glide traverse track that will be used in the fabrication of your traverse rod. This track finish will color coordinates with the rod fascia you have selected. You may choose to change the dual-glide track finish to any of the four powder coated finishes by selecting a different option below.

    Medallion Gold
    Dark Bronze
    Aluminum
    White

    You must fix errors before proceeding



      Step 3 - Draw & Carrier Options

      Draw Direction

      Right

      Left

      Center

      Drapery Carrier Type
      CARRIER INFO

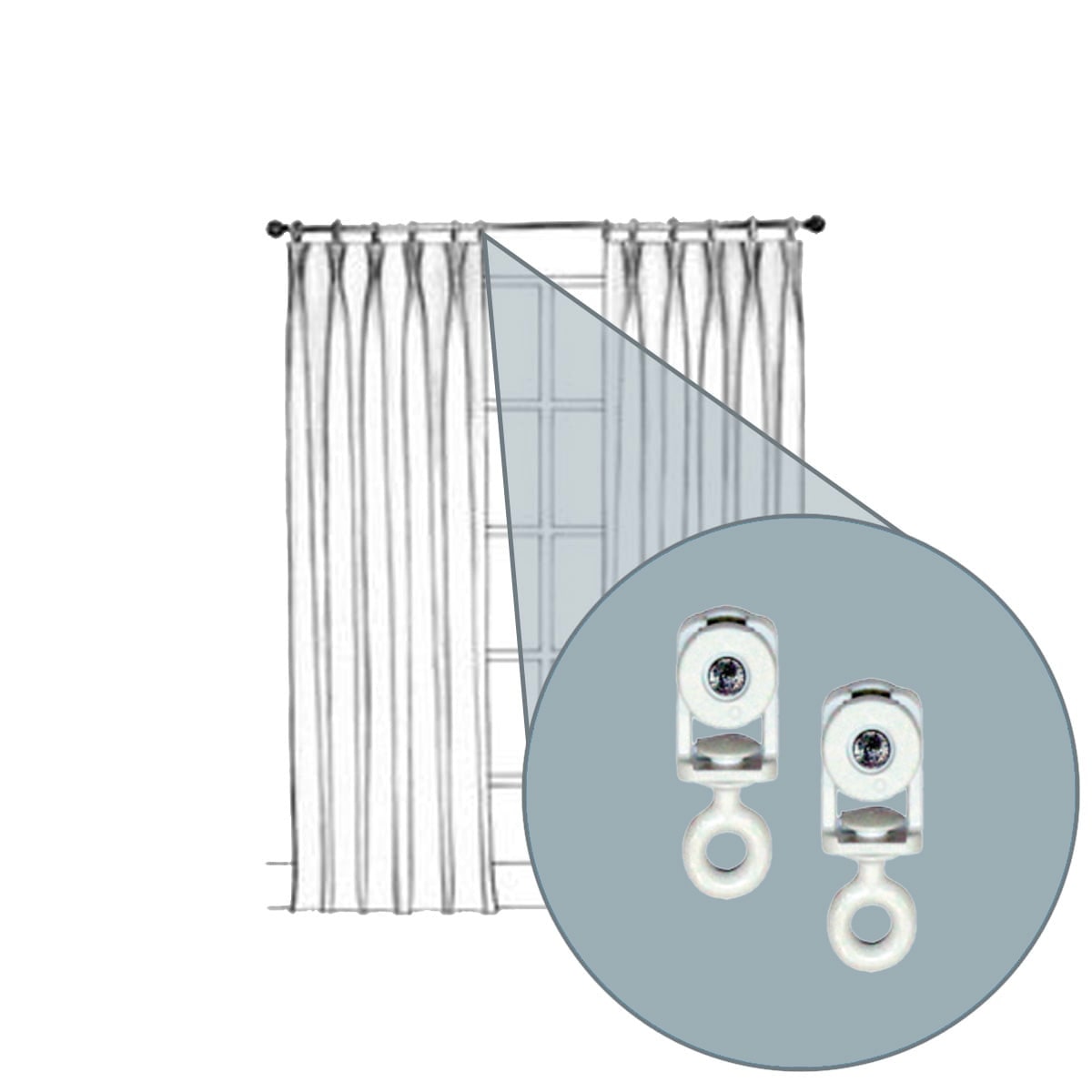

      Pinch Pleat

      CARRIER INFO

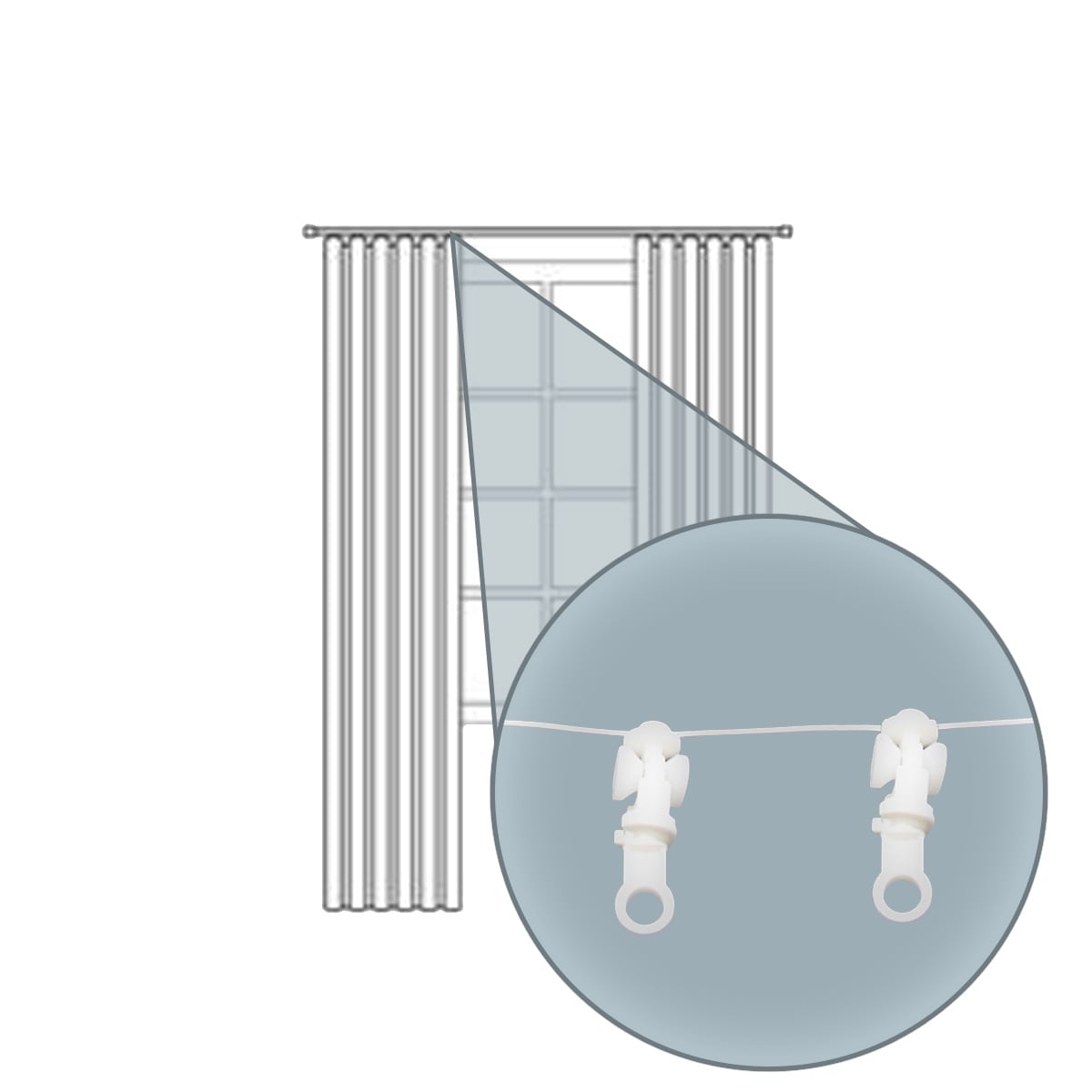

      Ripple Fold

      Ripple Fold Fullness
      Understanding Ripplefold Fullness

      60%
      Ball Bearing Roller Ripple Carrier 60% Fullness 2-5/8"

      80%
      Ball Bearing Roller Ripple Carrier 80% Fullness 2-3/8"

      100%
      Ball Bearing Roller Ripple Carrier 100% Fullness 2-1/8"

      120%
      Ball Bearing Roller Ripple Carrier 120% Fullness 1-7/8"

      Knowledge Article: Understanding Ripplefold Fullness (Login Required)
      Ripple Fold Carrier Options

      Butt Master

      Overlap Master

      Carrier Options

      NOTE: Based upon the rod length you've selected, you will receive carriers. To add additional carriers beyond this number, indicate the number of additional carriers you'd like below.

      Additional preloaded carriers desired above and beyond the standard 3 per foot included by default.

      You must fix errors before proceeding



        Step 4 - Draw Type

        Draw Type

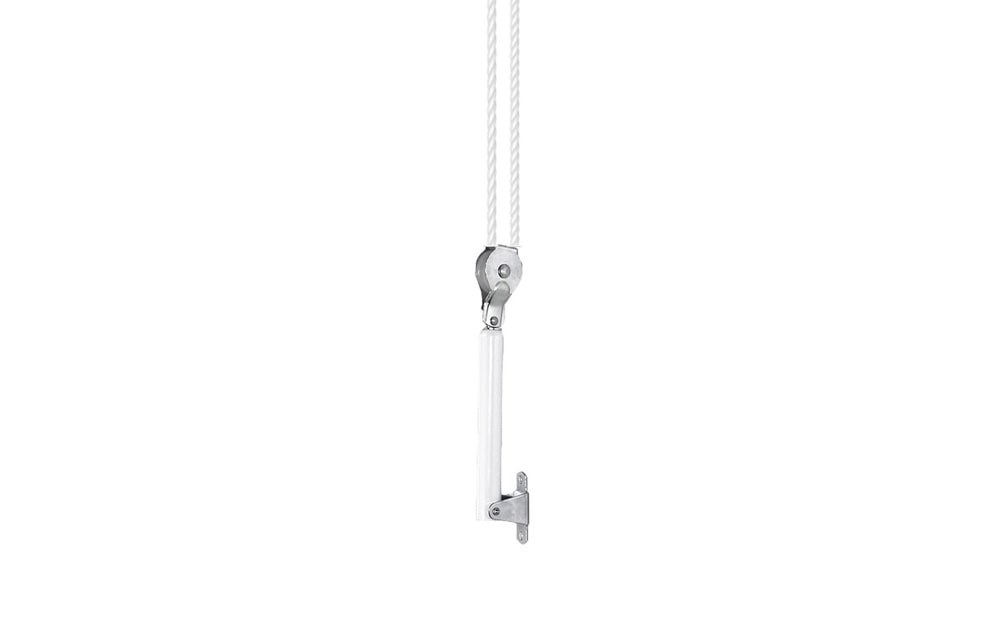

        Corded

        Baton

        Cord Options
        Cord Drop

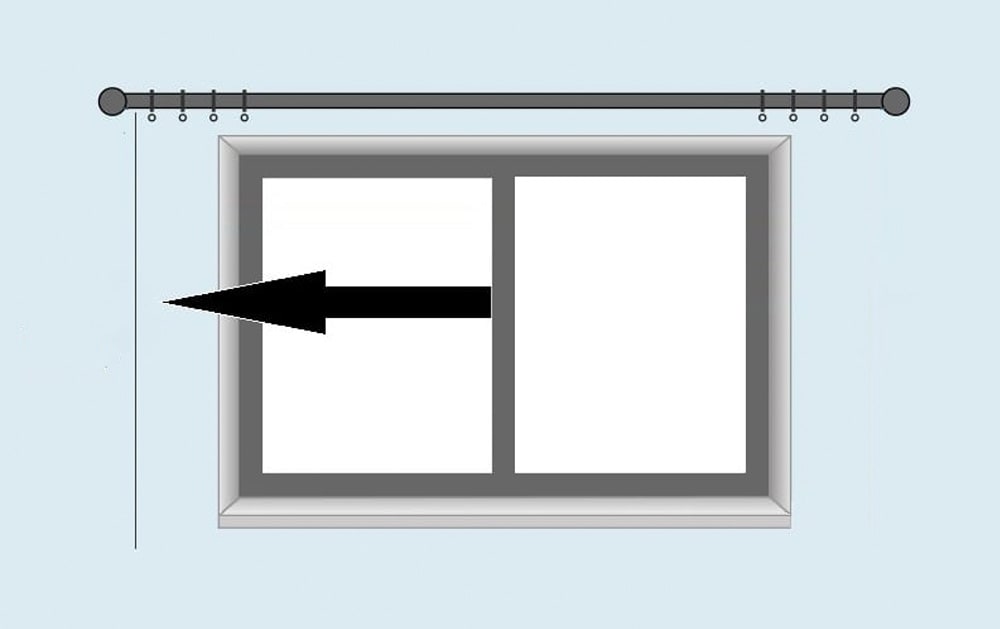

        Left Drop

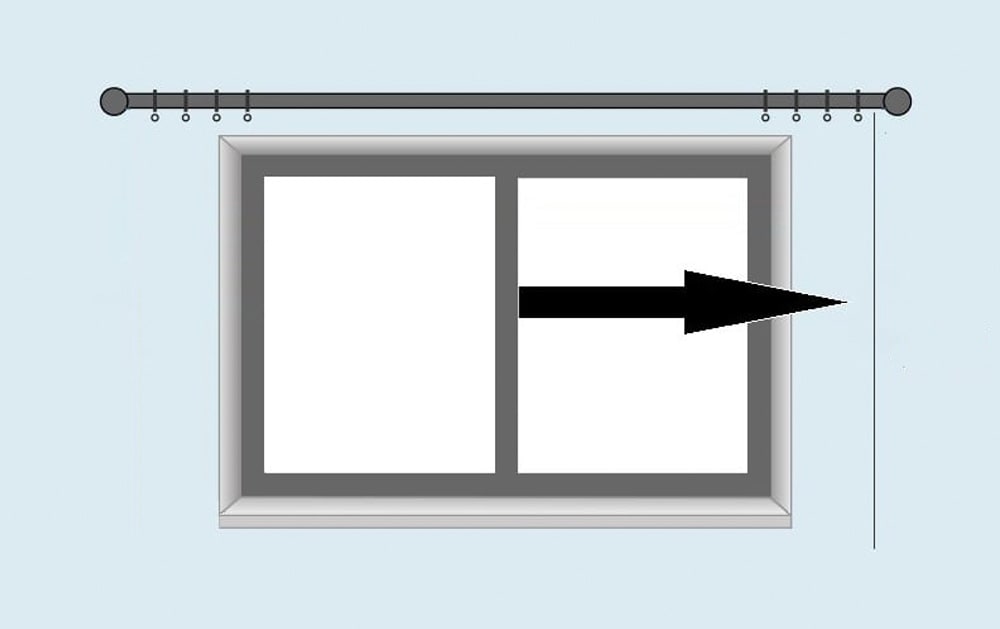

        Right Drop
        Cord Length
        measuring tape

        Standard 96 Inches

        Custom

        Custom Cord Length

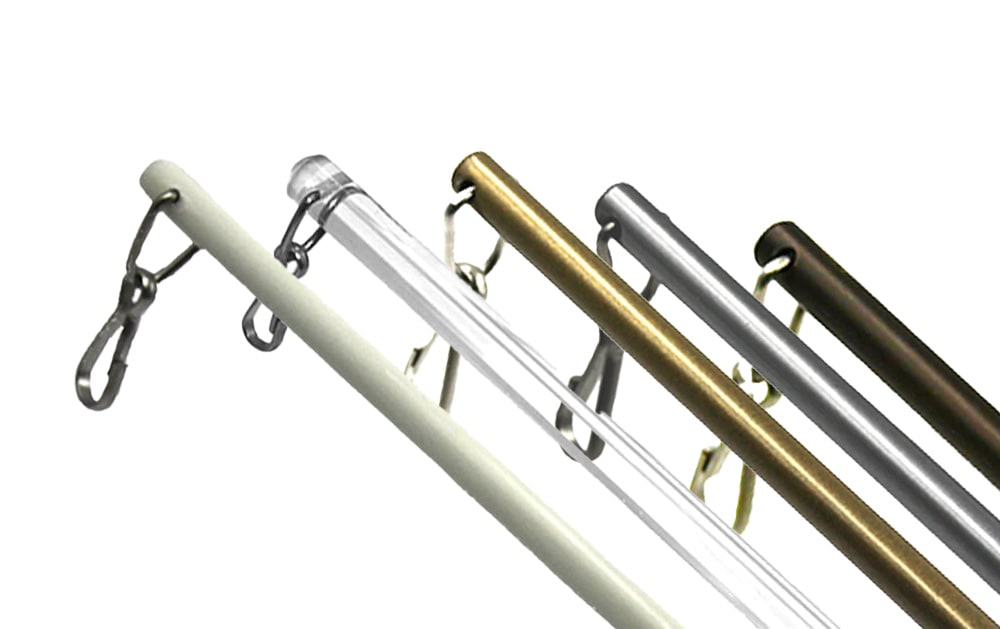

        Baton Options
        36"
        $12.00 /ea
        48"
        $15.00 /ea
        60"
        $18.00 /ea
        72"
        $22.00 /ea
        Specify Quantity

        Clear only.

        36"
        $12.00 /ea
        48"
        $12.00 /ea
        60"
        $12.00 /ea
        72"
        $12.00 /ea
        Specify Quantity

        White only.

        36"
        $25.00 /ea
        48"
        $25.00 /ea
        60"
        $35.00 /ea
        72"
        $35.00 /ea
        Specify Quantity
        Specify Finish
        Dark Bronze
        Ebony
        Dijon Gold
        Brushed Nickel
        Chrome

        Available in 5 powder coated finishes.

        You must fix errors before proceeding



          Step 5 - Finials

          Finials

          The finials below are shown in the finish that you selected for your traverse rod. Please select the Finial(s) you would like for your order.

          You have chosen a track-only configuration, and therefore finials may not be added to your rod. Please continue to the review step below.

          Please select a finial design

          Loading Finial Options

          Please scroll up and correct the errors

          You must fix errors before proceeding



            Step 6 - Review Configuration

            Review Your Single Traverse Rod Configuration

            Please review the options you have selected for your Single Traverse Rod below. If a correction is necessary, go back to previous steps using the navigation above.

            Loading Review

            Rod Finish & Style
            • Finish:
            • Style:
            Rod Length
            • Length: inches
            • Spice Options:
            Track Finish
            • Finish:
            Bracket Type
            • Type:
            • Included Brackets:
            • Add'l Wall Mount Brackets:
            • Add'l Center Support Brackets:
            • Add'l Flush Mount Brackets:
            • Add'l Extended Mount Brackets:
            Mitered Return
            • Mitered Return:
            • Return Length:
            Draw Direction
            • Direction:
            Drapery Type
            • Type:
            • Fullness:
            • Carrier Type:
            • Included Carriers:
            • Additional Carriers:
            Carrier Option
            • Carrier:
            Baton
            • Type:
            • Finish:
            • Quantity:
            • Length:
            Cord Options
            • Cord Drop:
            • Cord Length:
            Finial(s)
            • Type:
            • Quantity:
            • Add'l Cost:

            Cost Breakdown
              Total As Configured:


              Rod End Holders


              Rod End Holders additional description here.

              Rod End Holders
              Assembly Step 1
              Assembly Step 2

              Traverse Bracket Guide


              Your rod will come with brackets based upon the length of the rod. Please refer to the chart below for more info:

              < 73" 73" to 96" 97" to 144" 145" to 192"
              Brackets for Trav 1 & Trav 2 2 End Brackets 2 End Brackets, 1 Center Support 2 End Brackets, 2 Center Support 2 End Brackets, 3 Center Support

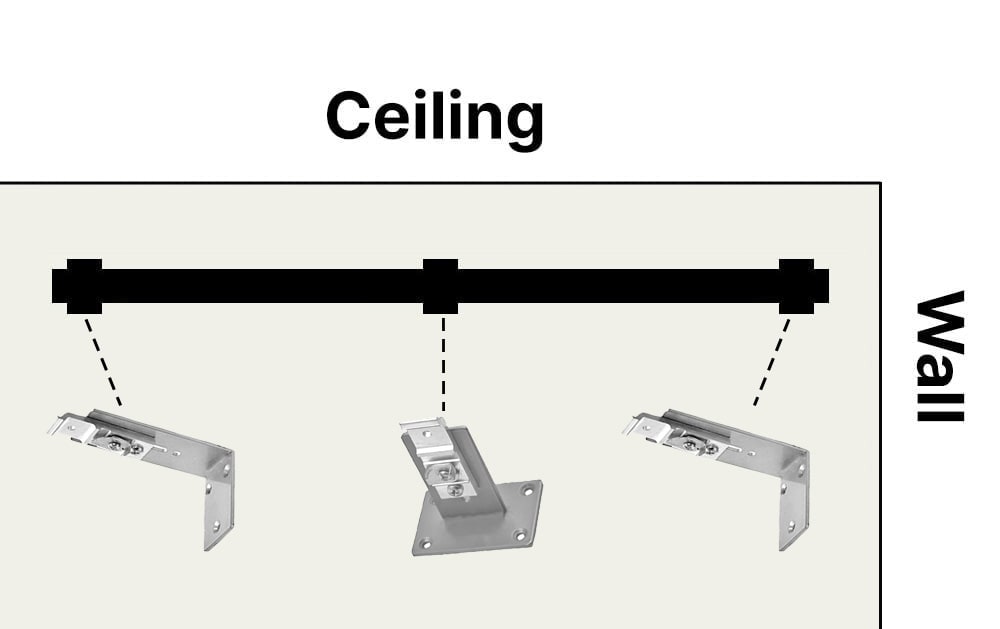

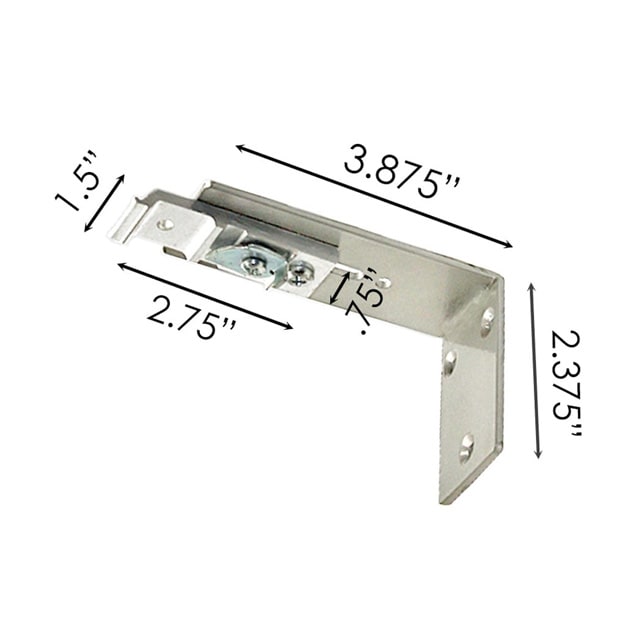

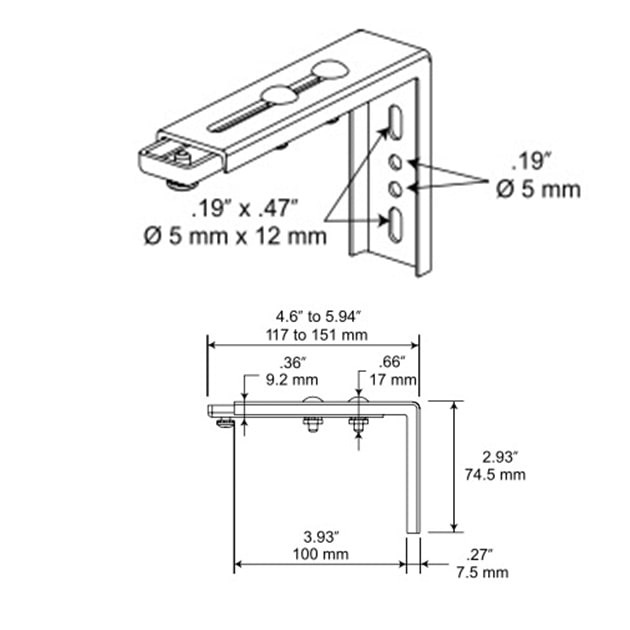

              Please refer to the diagram below for a better understanding of how the wall mount attaches to your traverse rod:

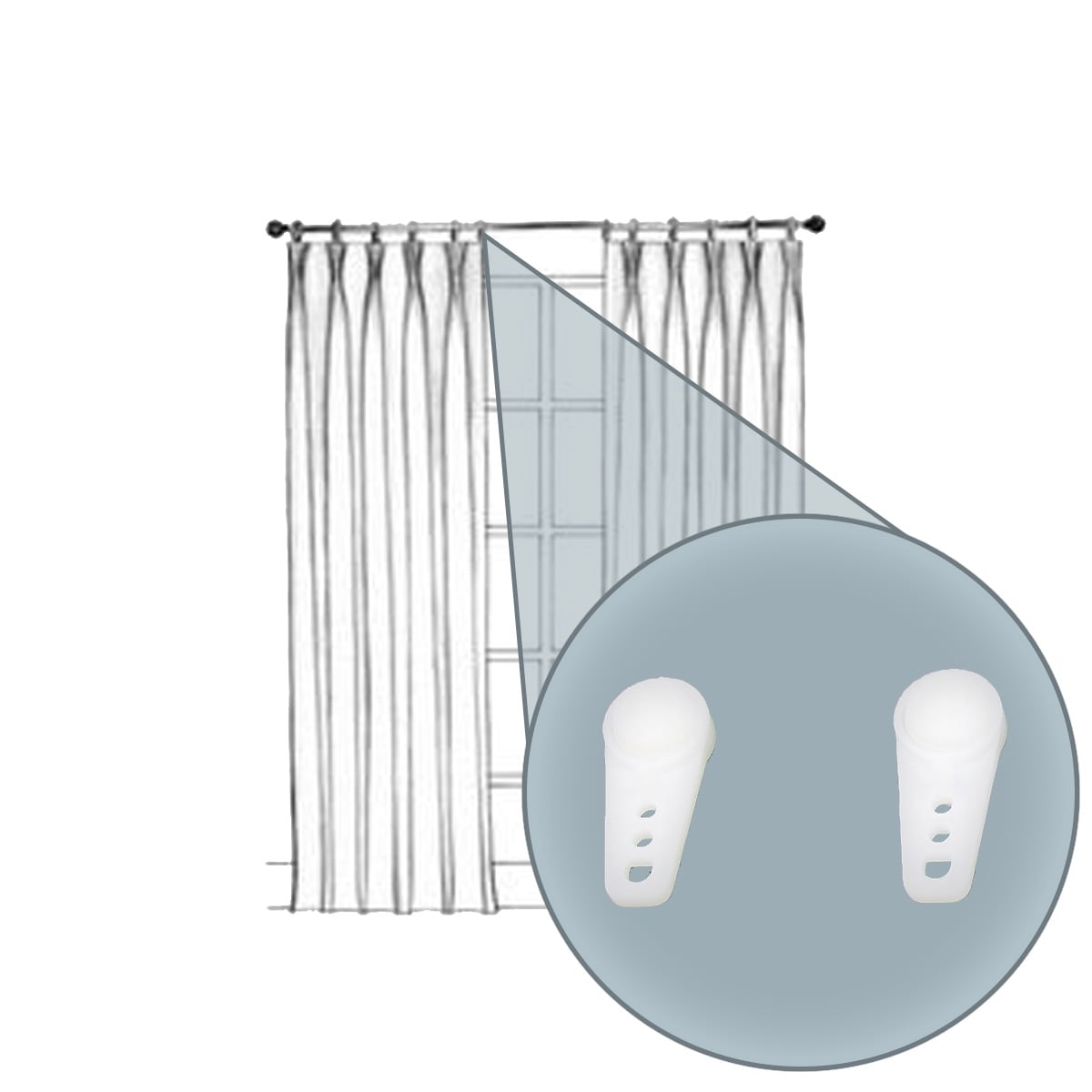

              Pinch Pleat Carriers


              Based upon your Draw Direction selection, you'll receive the following carrier:

              Pinch Pleat Left Draw Carrier

              Based upon your Draw Direction selection, you'll receive the following carrier:

              Pinch Pleat Right Draw Carrier

              Based upon your Draw Direction selection, you'll receive the following carriers:

              Pinch Pleat Center Draw Carriers

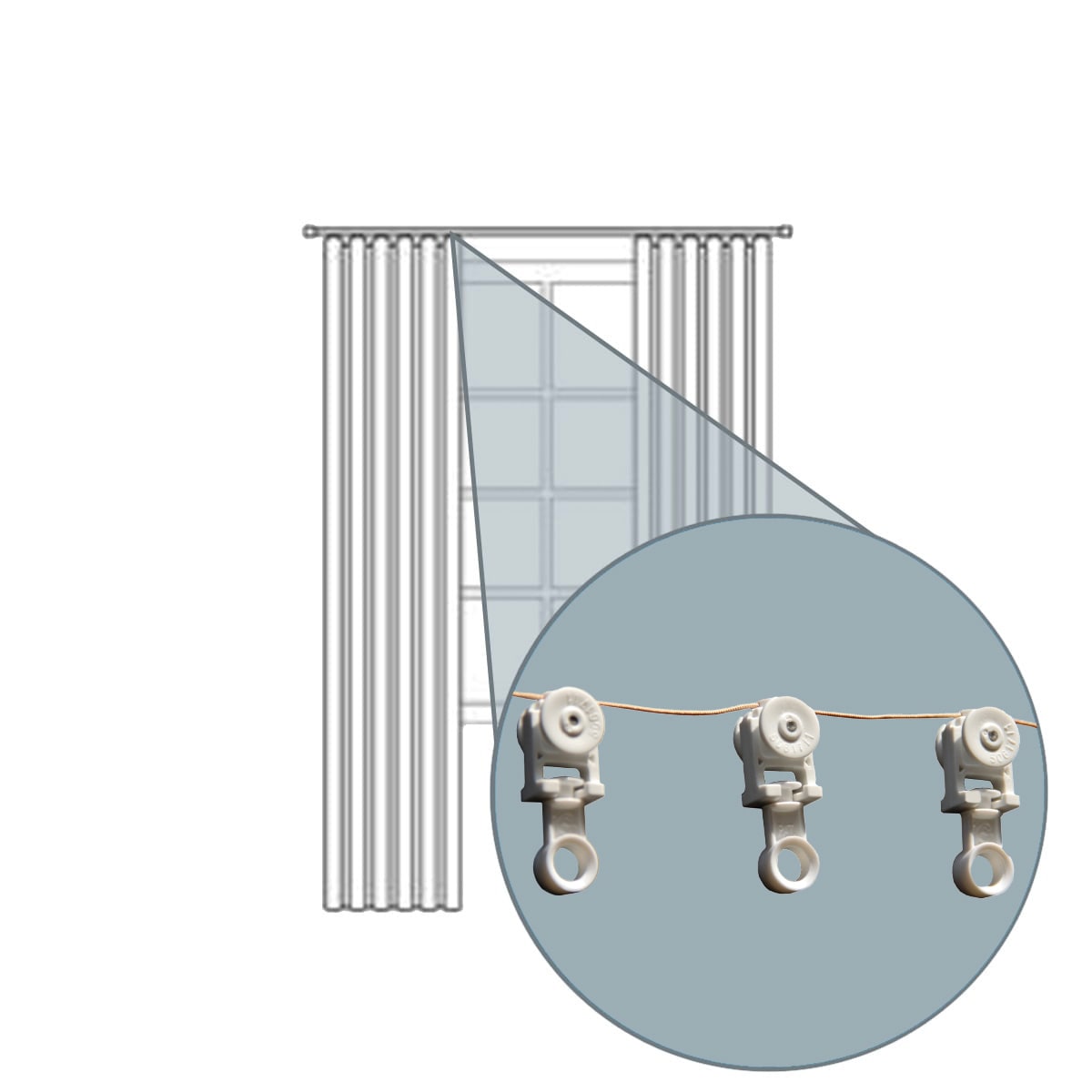

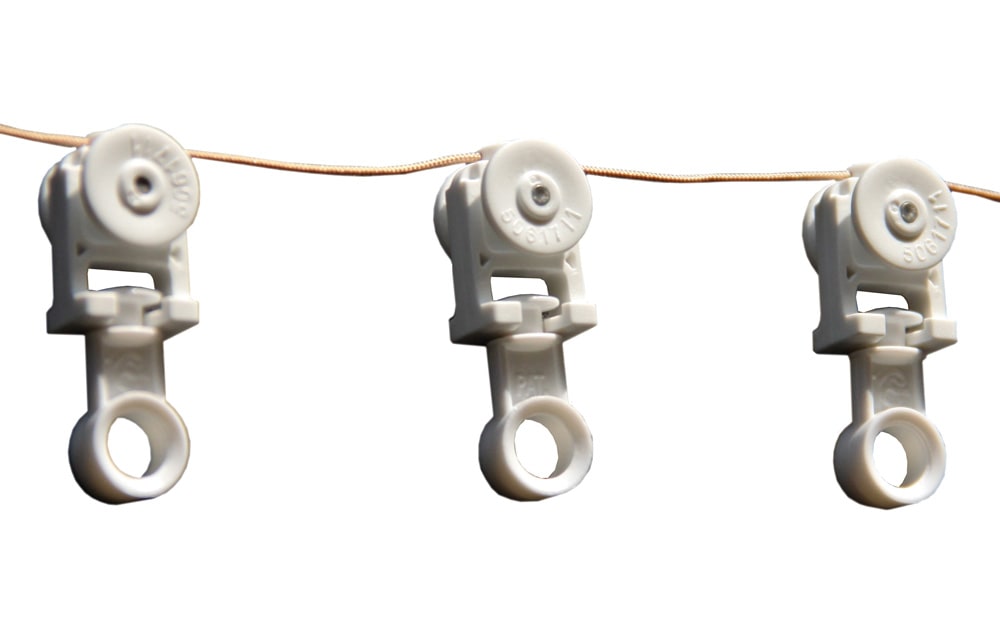

              Ripple Fold Carriers


              Based upon your Draw Direction selection, you'll receive the following carrier:

              Ripple Fold Left Draw Carrier

              Based upon your Draw Direction selection, you'll receive the following carrier:

              Ripple Fold Right Draw Carrier

              Based upon your Draw Direction selection, you'll be able to select from one of the following two carrier options:

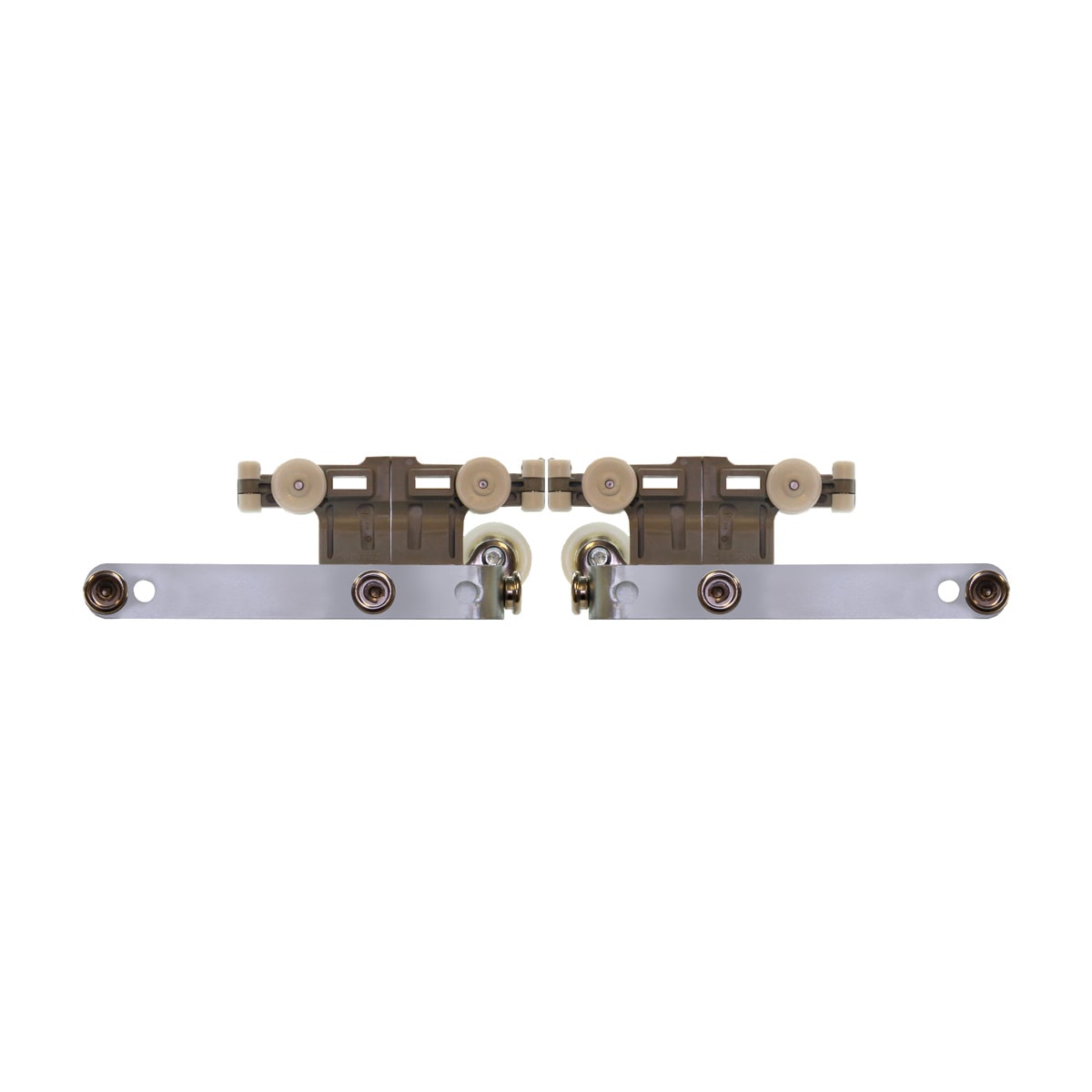

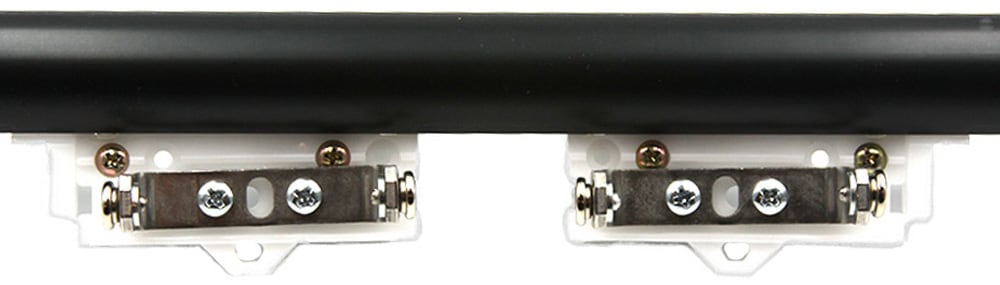

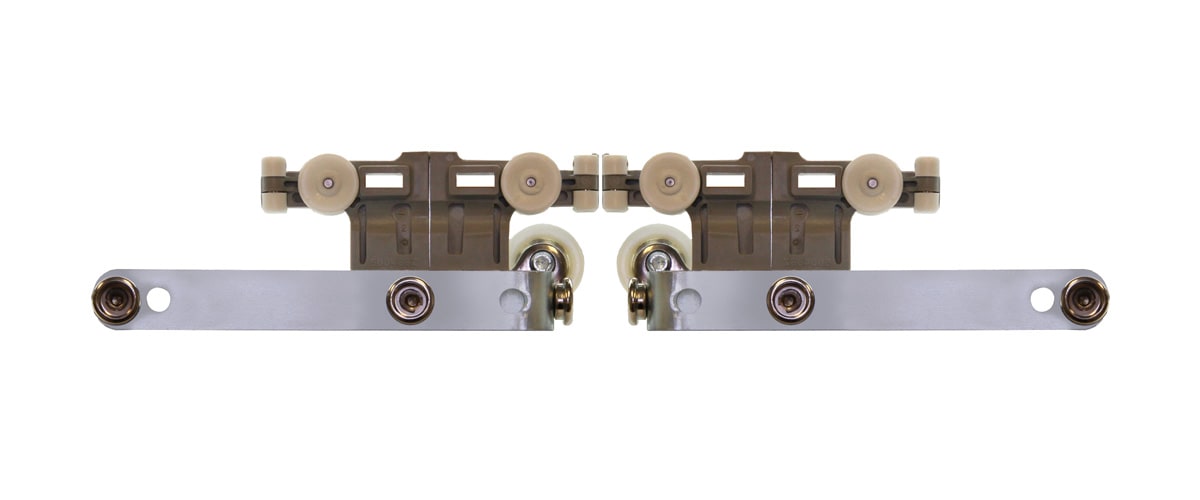

              Ripple Fold Center Draw Butt Master Carriers

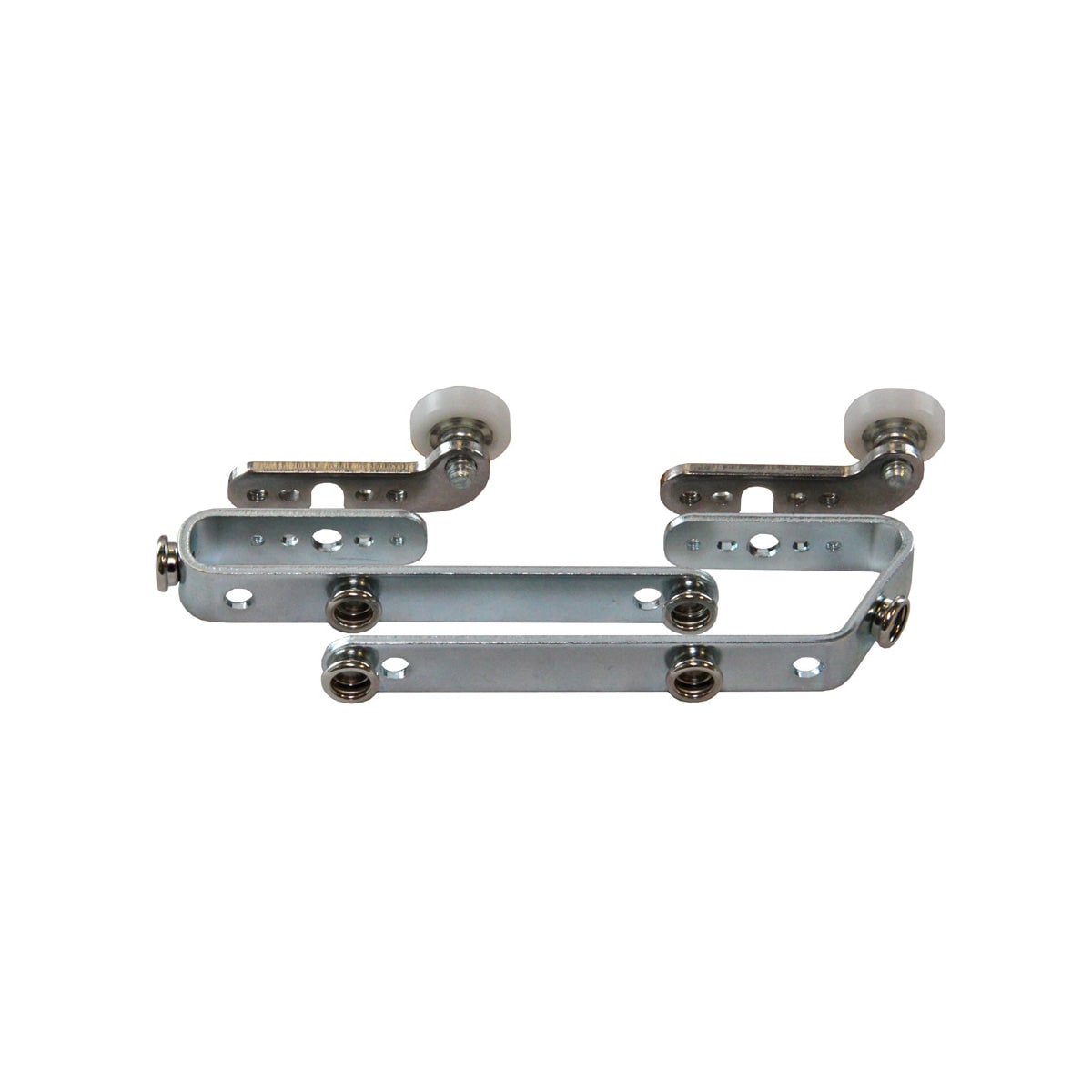

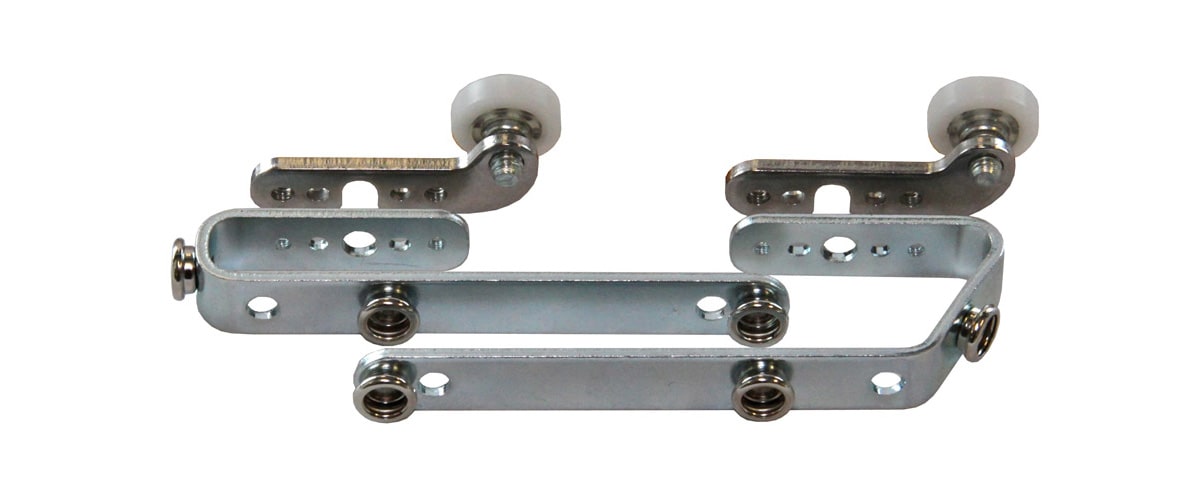

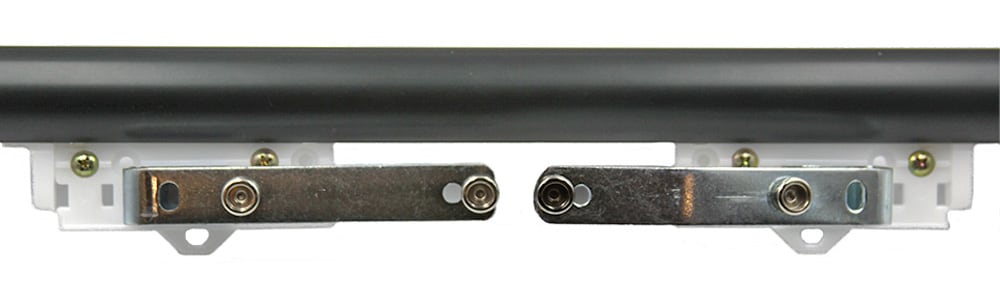

              Ripple Fold Center Draw Overlap Master Carriers

              Traverse Rod Bracket Assembly


              Return Bracket Assembly


              Rod Length Help


              Track Measurements


              Understanding Ripplefold Fullness


              The fullness of the Ripplefold is determined by the spacing of the Ripplefold carriers.

              For more information, please review this Knowledge Base article: Understanding Ripplefold Fullness (Login Required).

              Adjustable Center Brackets Assembly
