Customize Your Combination Traverse Rod

Combination Traverse Configuration Tool

Combination Traverse Configuration Tips

  1. This configuration tool will allow you to specify exactly how you want your combination traverse rod configured.
  2. This tool will guide you, ensuring that your selections are fully compatible.
  3. Throughout the configuration, additional information is provided to help your decision making process.
  4. Your selections are always saved, even if you navigate away from this page or come back later.
  5. As always, if you need help, our support team is just a click away.
Please note that all custom products may take up to 14 days to produce.

Step 1 - Rod Length

Rod Length

Maximum continuous track available up to 16 feet one way draw, and up to 32 feet in a center draw.

Please select a Front Rod Length
Please select a Rear Rod Length

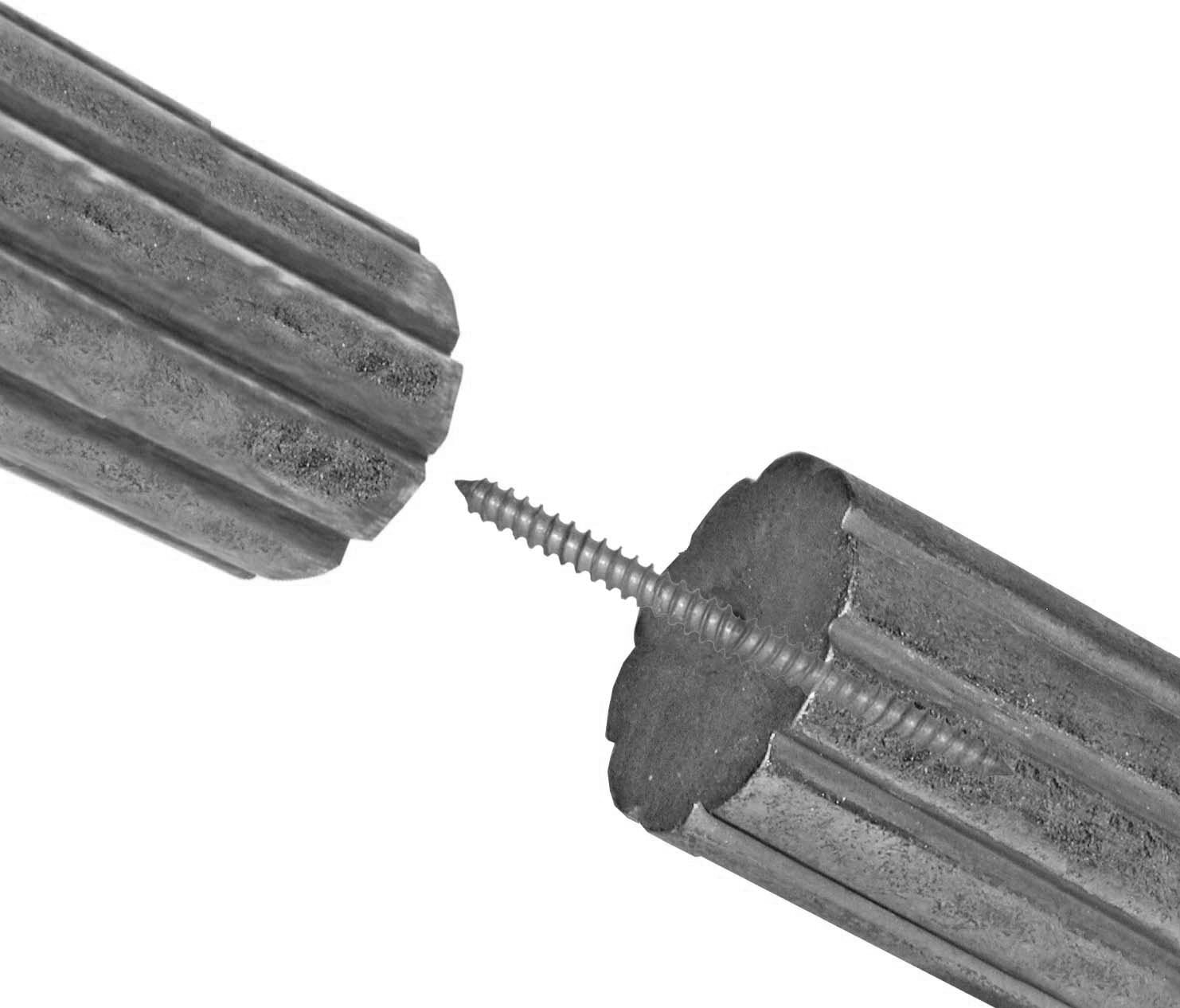

Rod Connector

Rod Connectors (Shown Above)
Used anywhere there is a cut to connect two sections of rod. All hardware included.

Stationary rods over 104 inches long are automatically cut in the center unless instructed otherwise. One-way draw tracks are not spliced when longer than 104 inches long.

Track Connector

Track Splice Connection (Shown Above)
Used anywhere there is a splice to connect two sections of track. All hardware included.

Splices are not recommended on one way draws. Center draw splices are only commended in the center of the track.

Please scroll up and correct the errors

Step 2 - Rod and Track Configuration

Front Stationary Rod Selection

Rods are may be selected in 2” smooth or fluted designs. 1-3/8” wood rods may be selected in smooth, and reeded, designs, and metal rods may be selected in a 1-1/4” compatible smooth design.

Please select a Front Stationary Rod Fascia Style

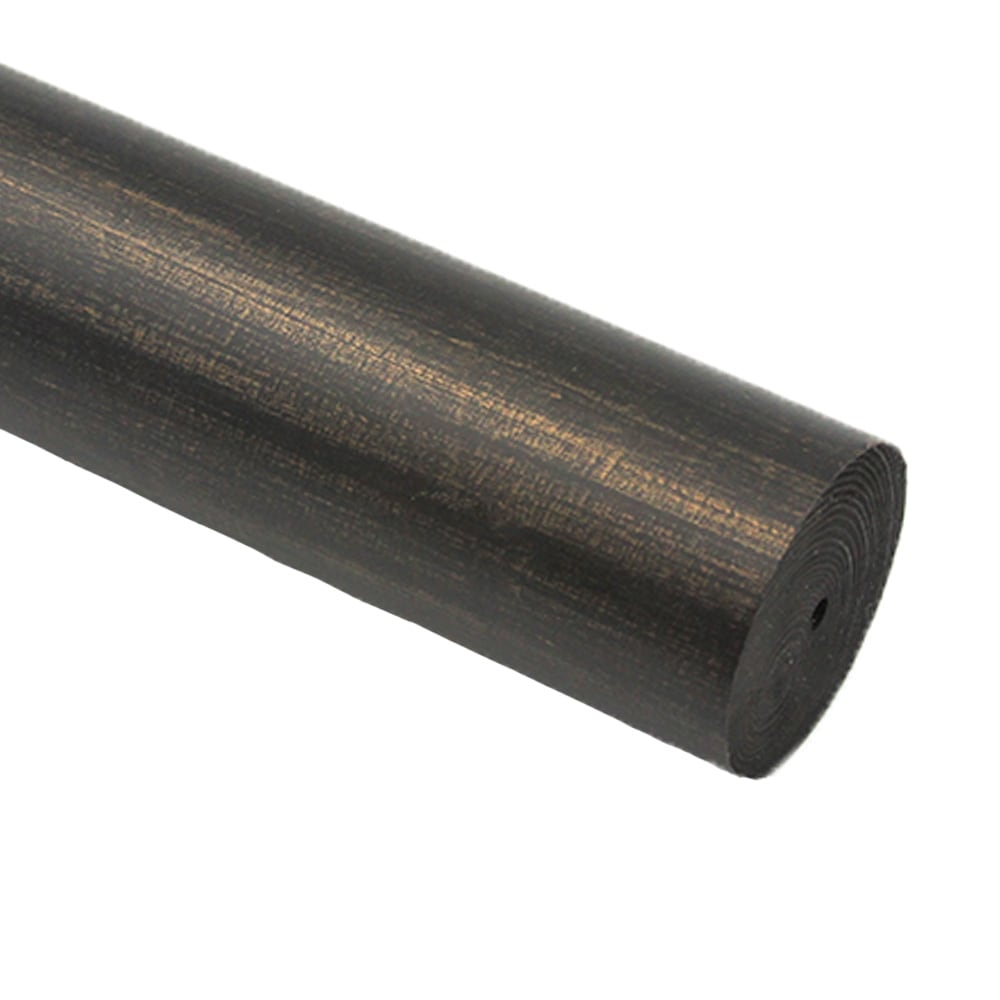

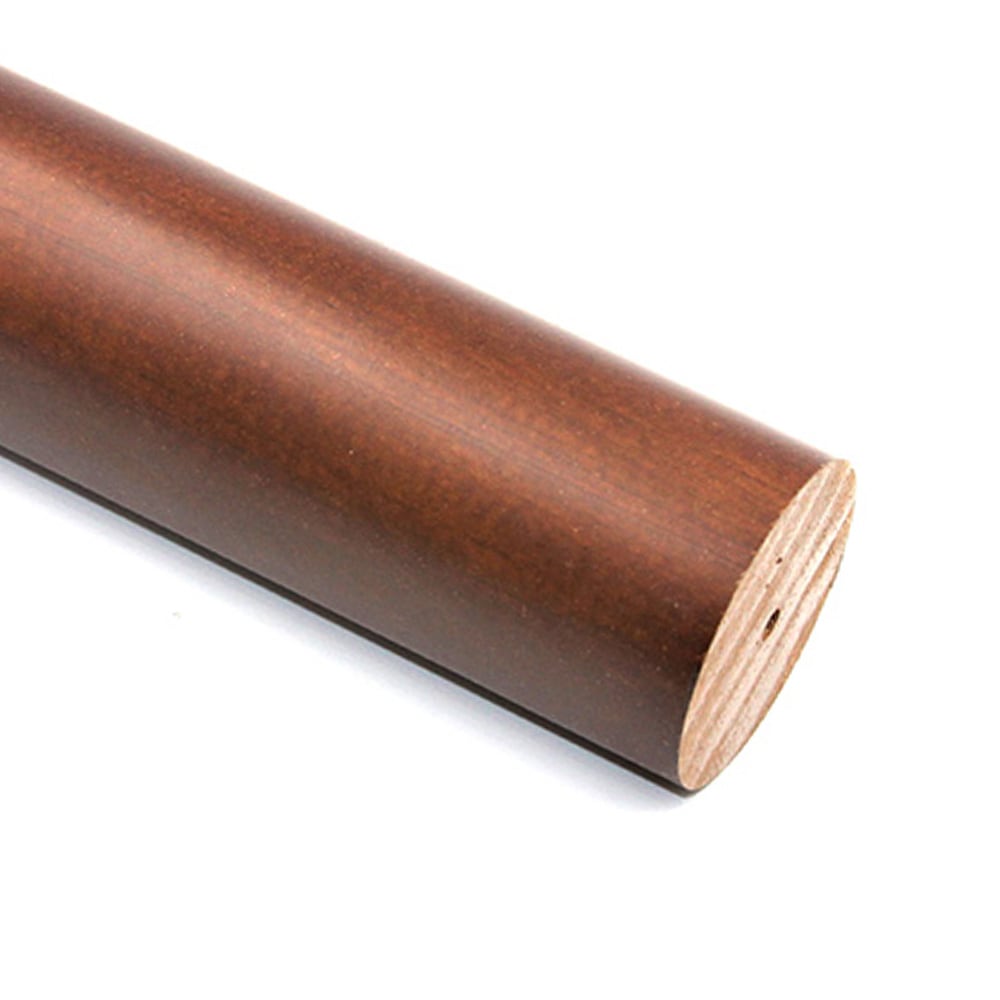

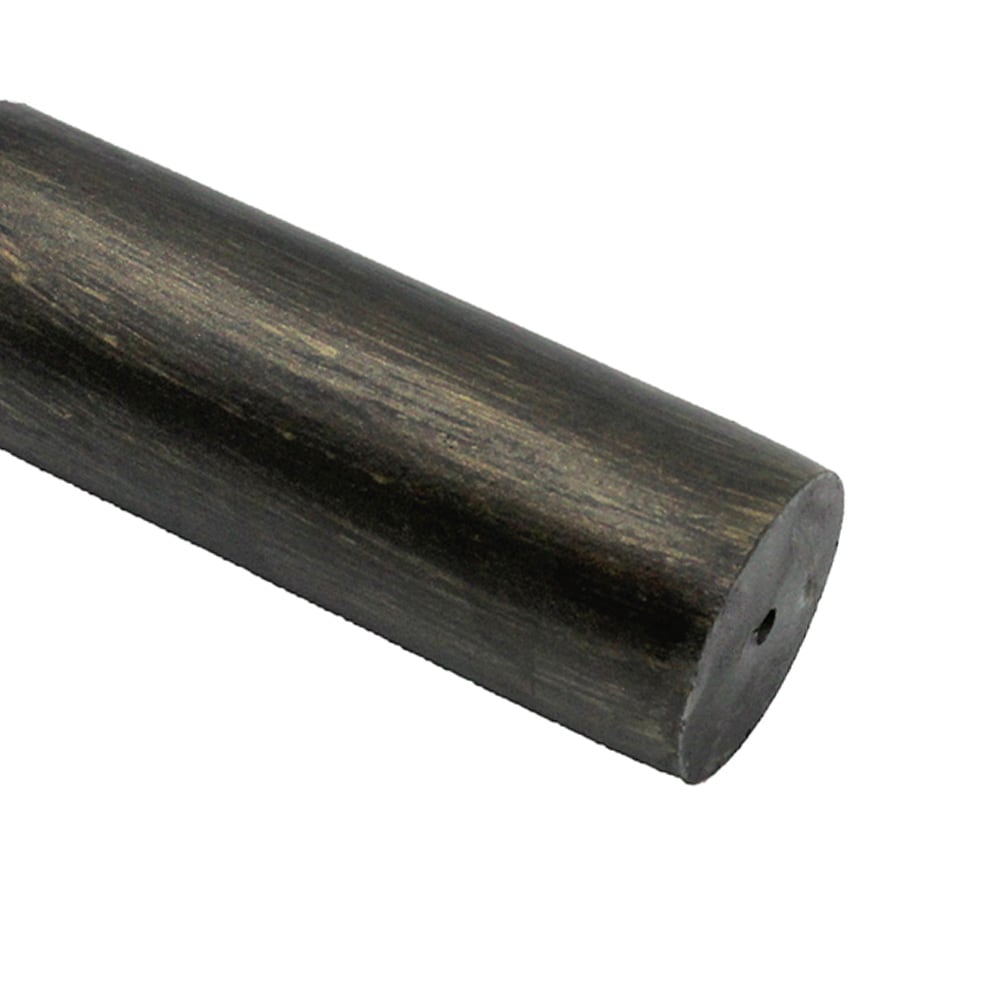

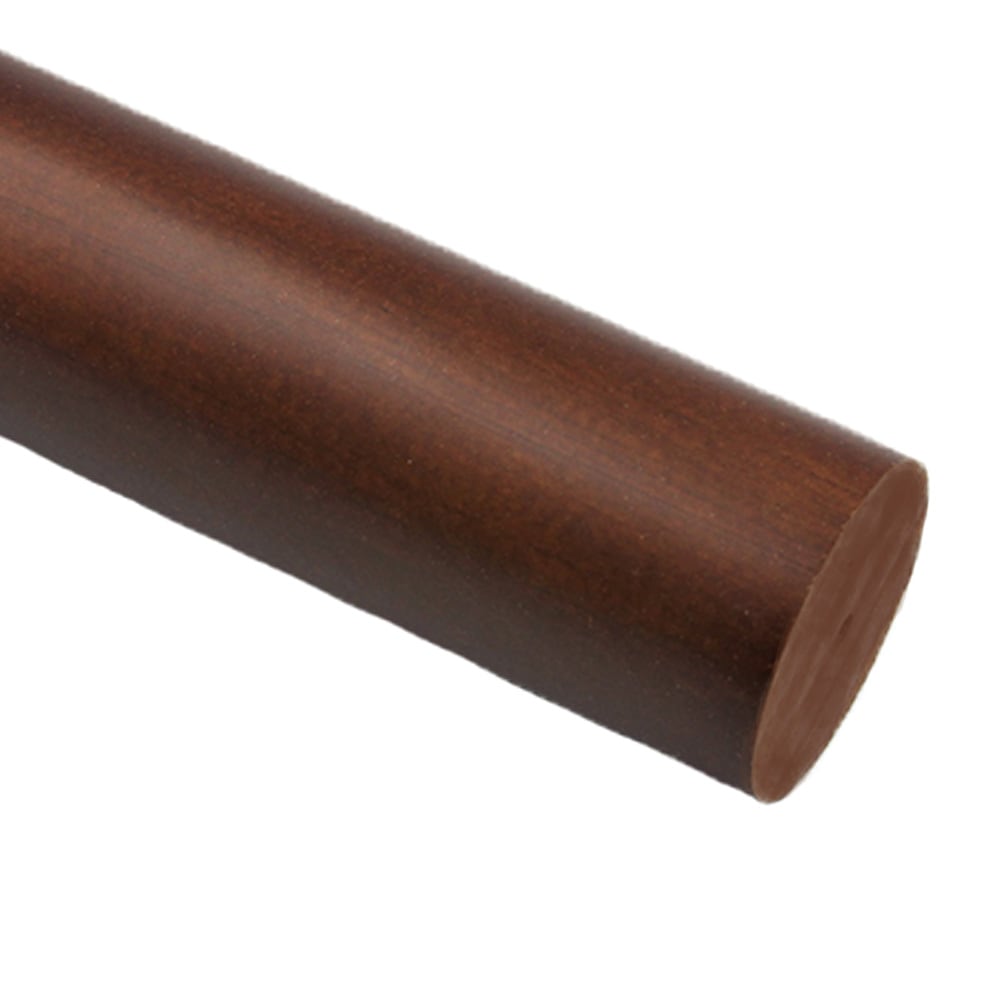

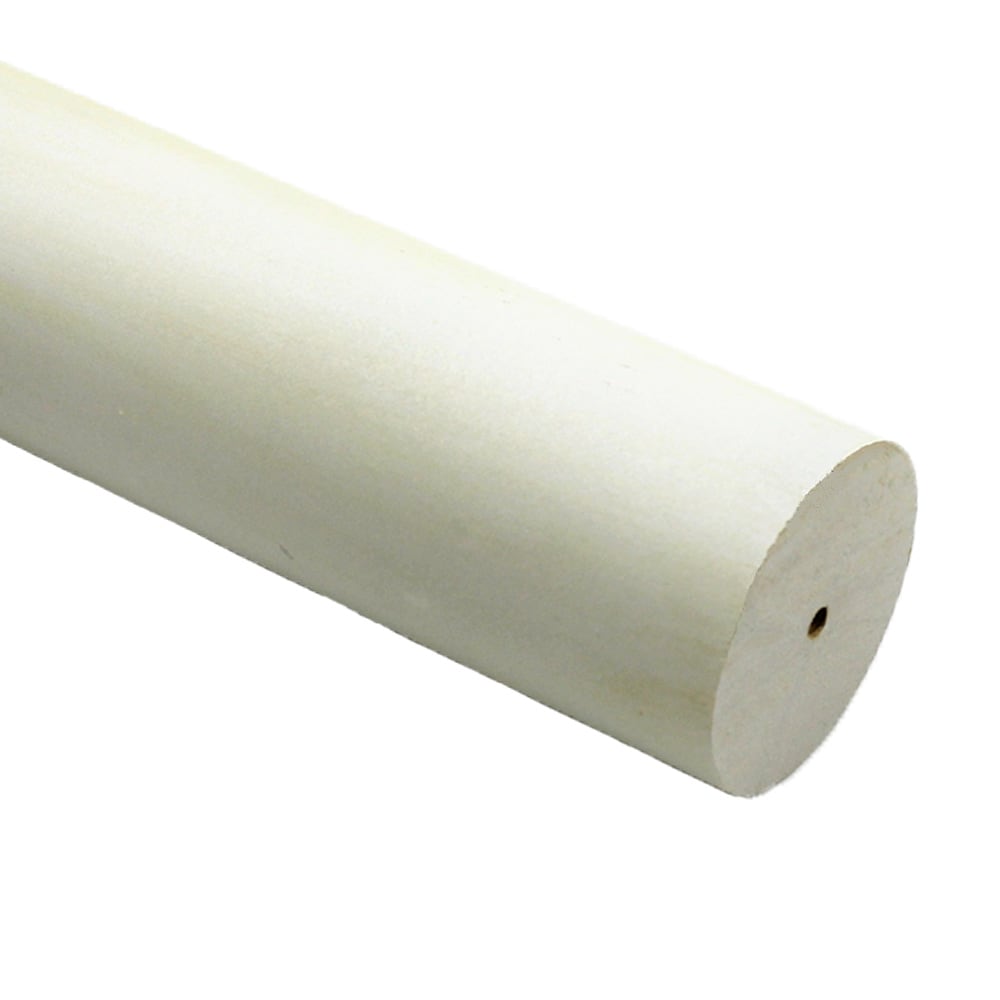

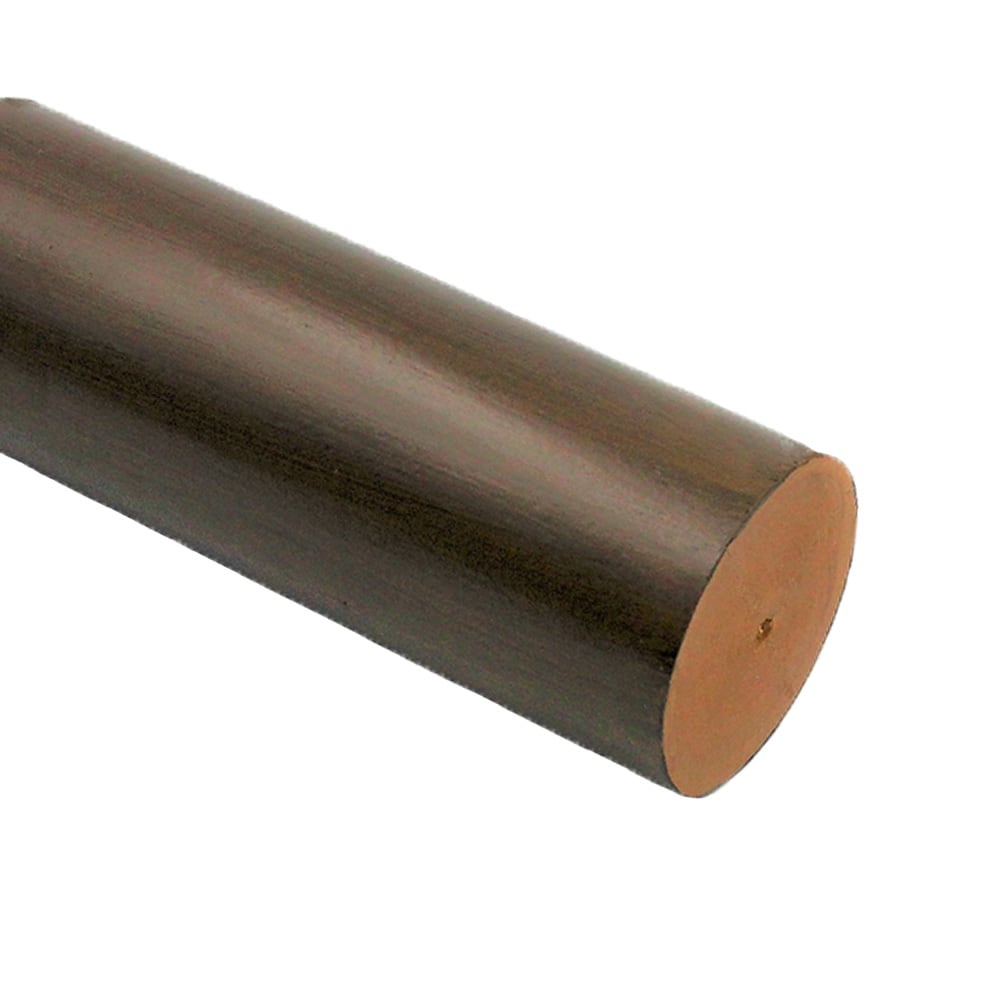

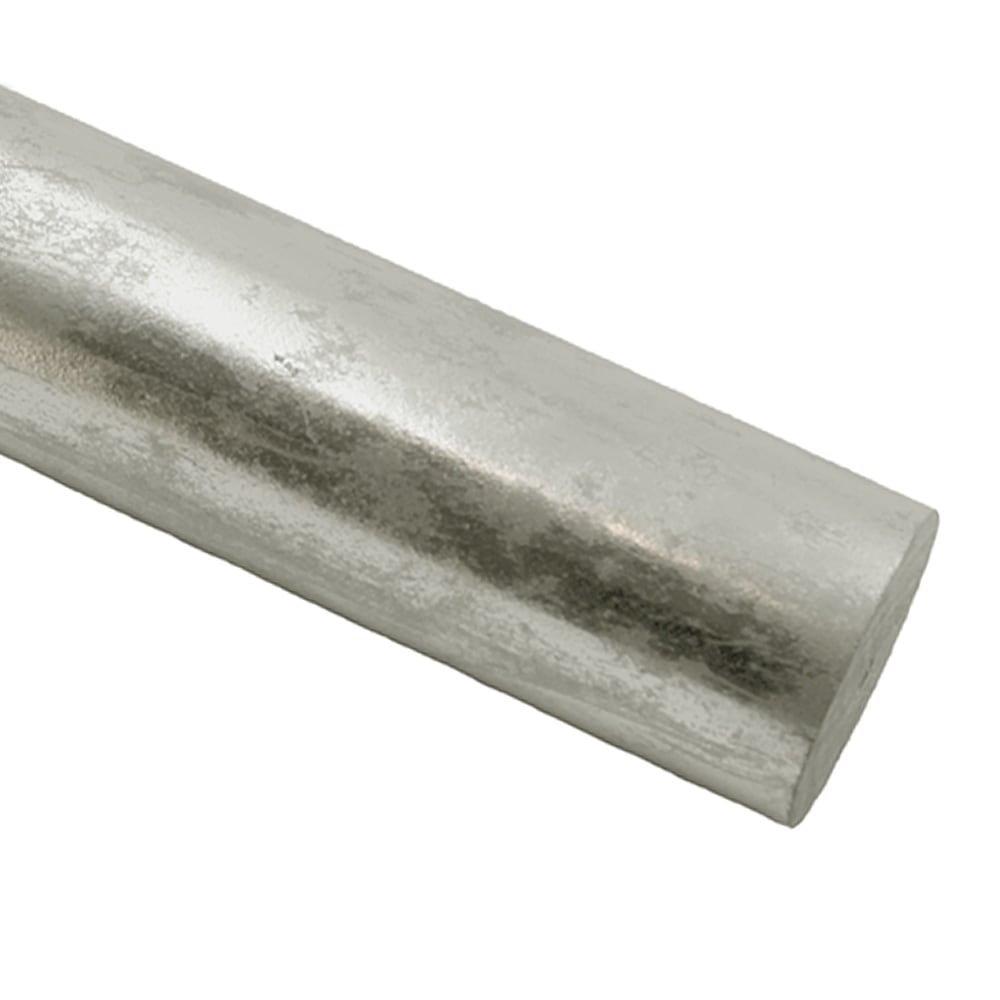

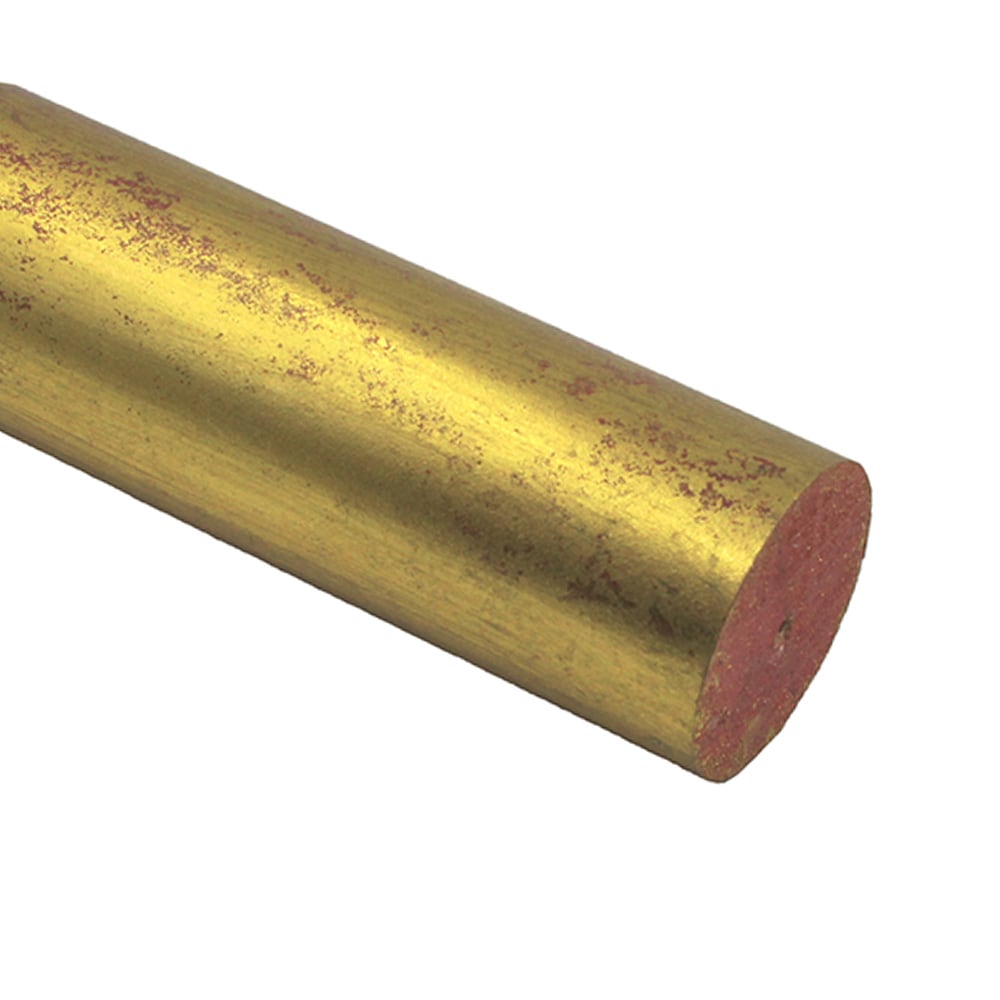

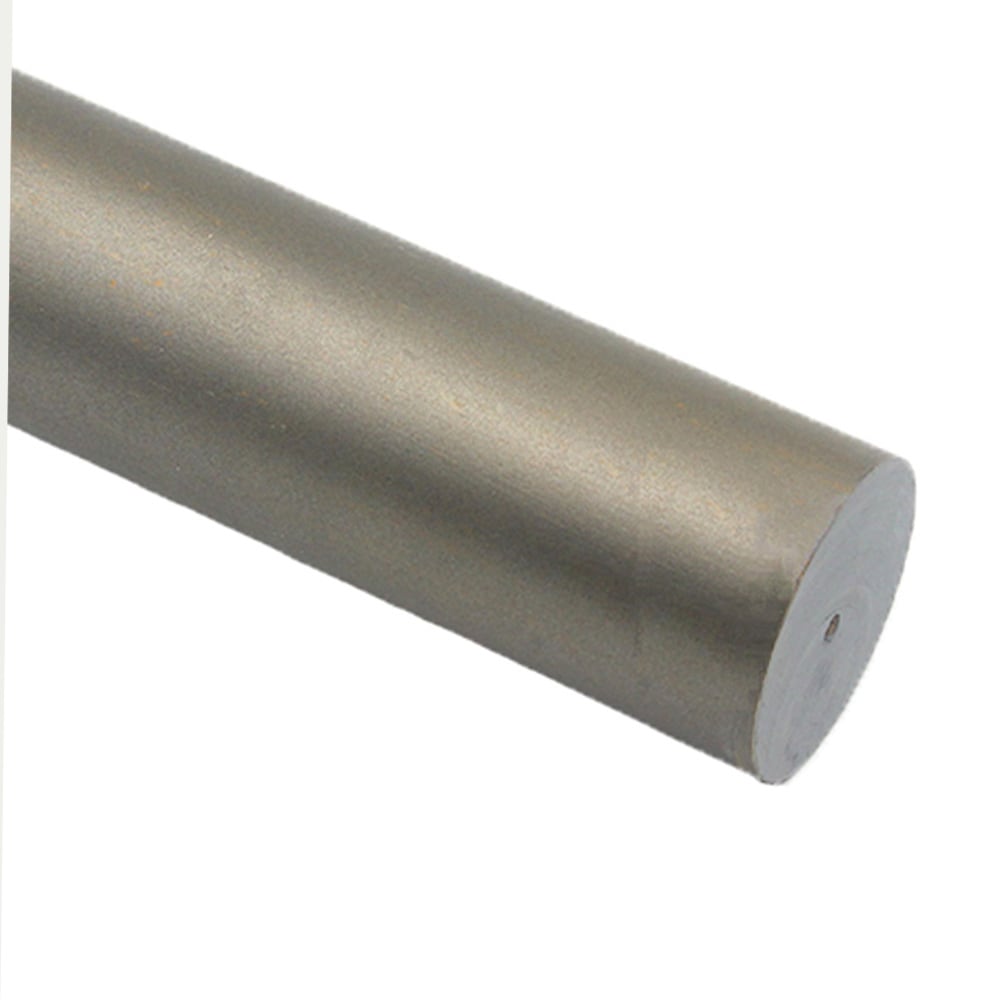

2" Smooth Wooden Rod

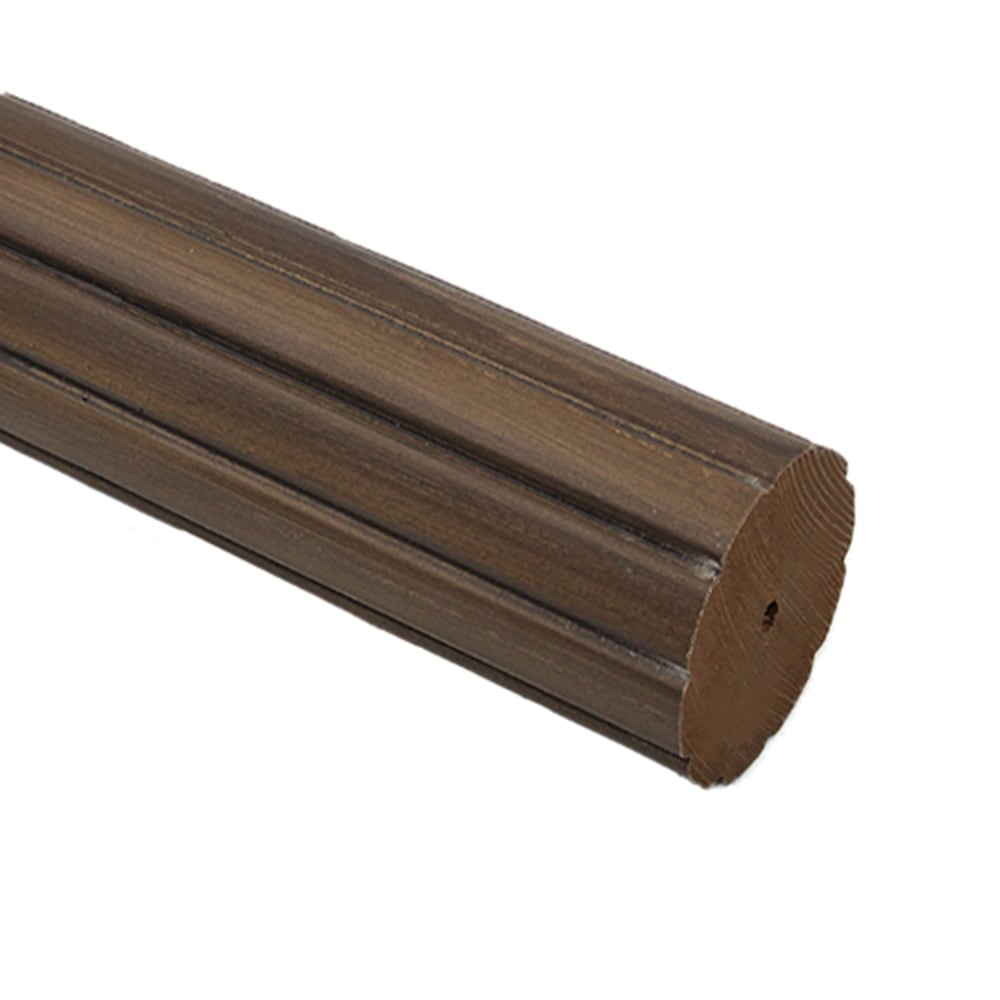

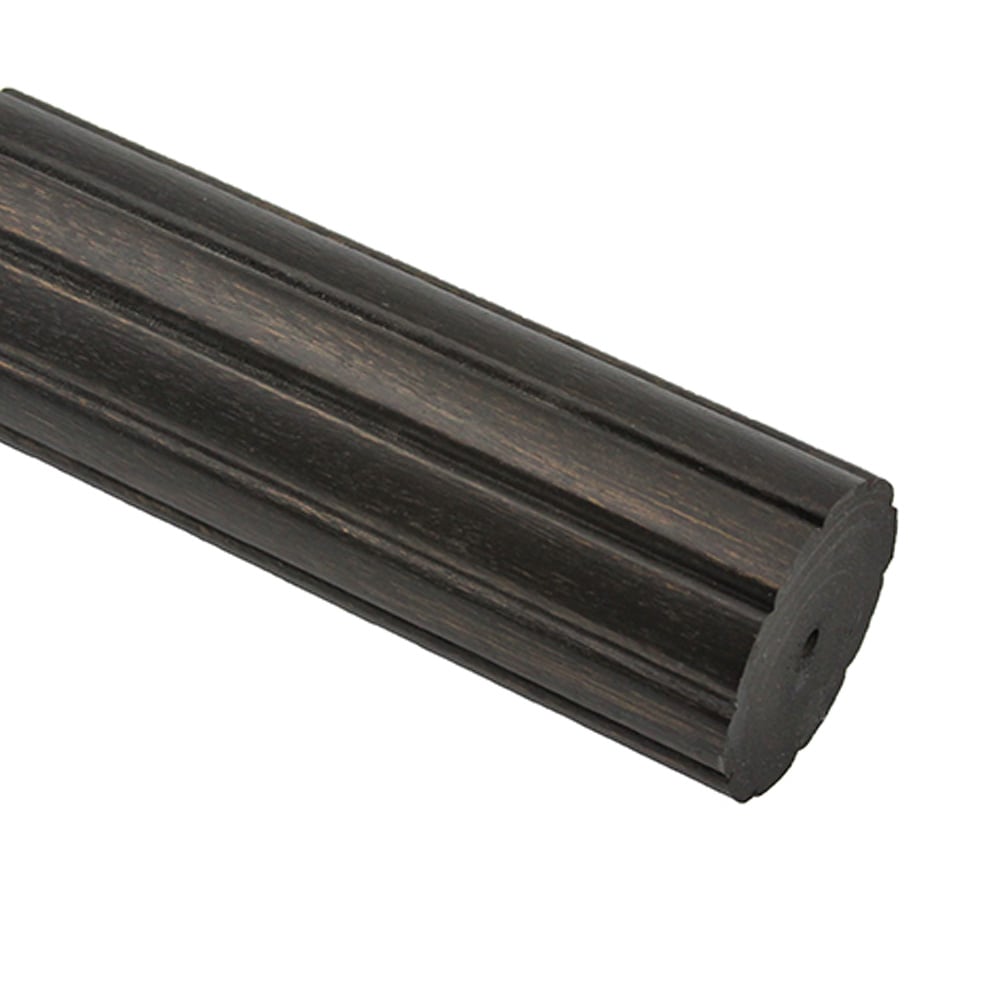

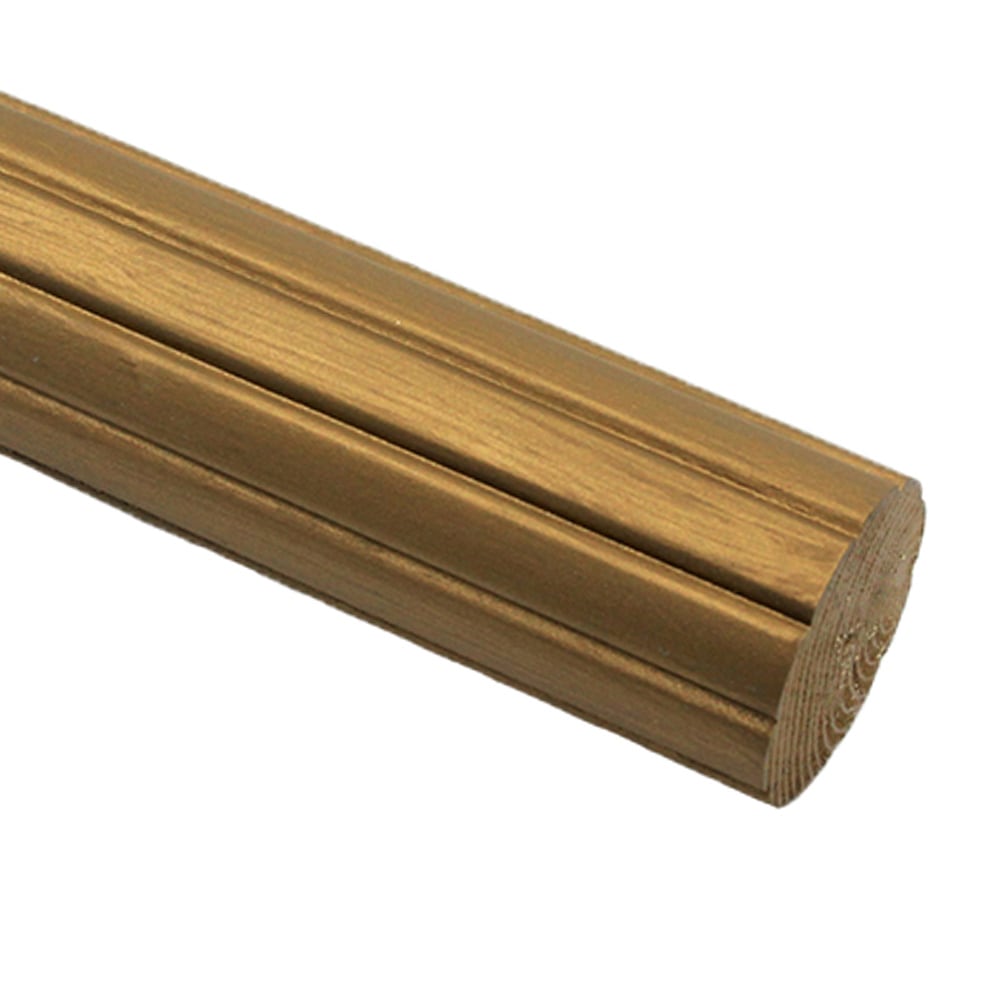

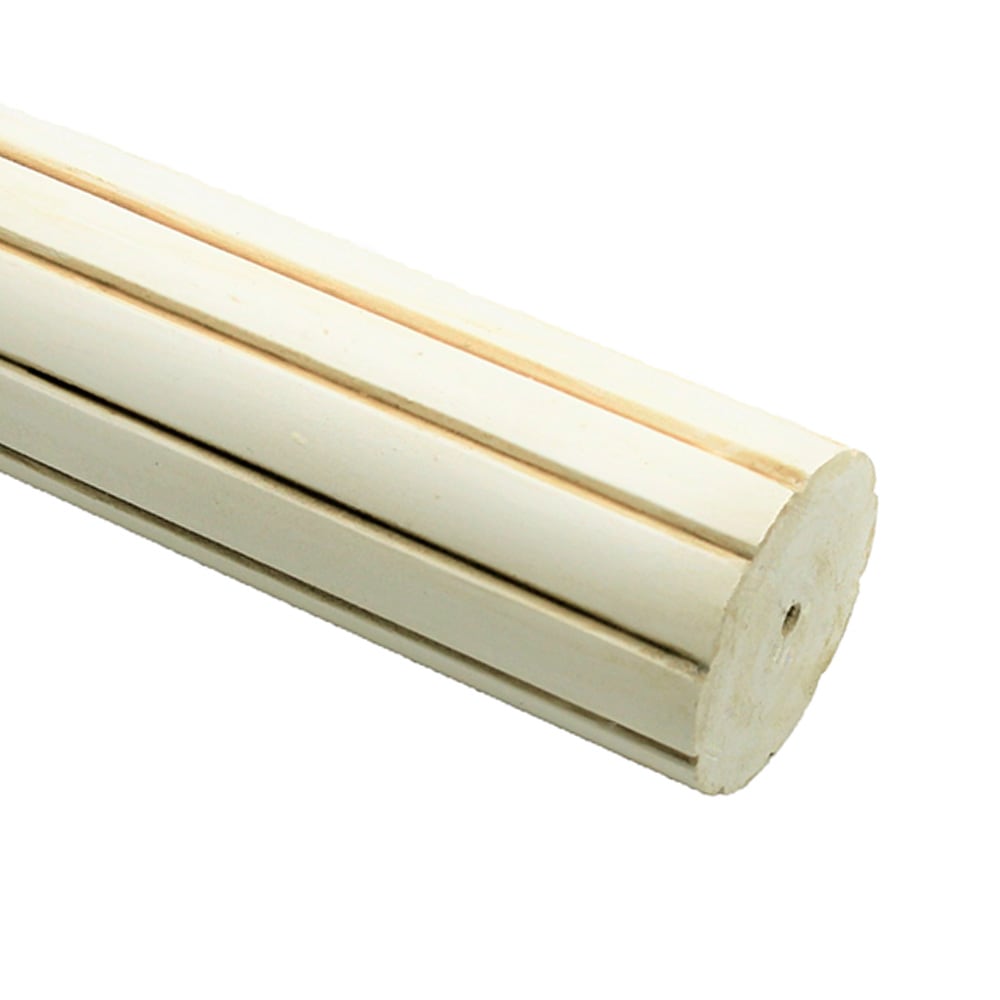

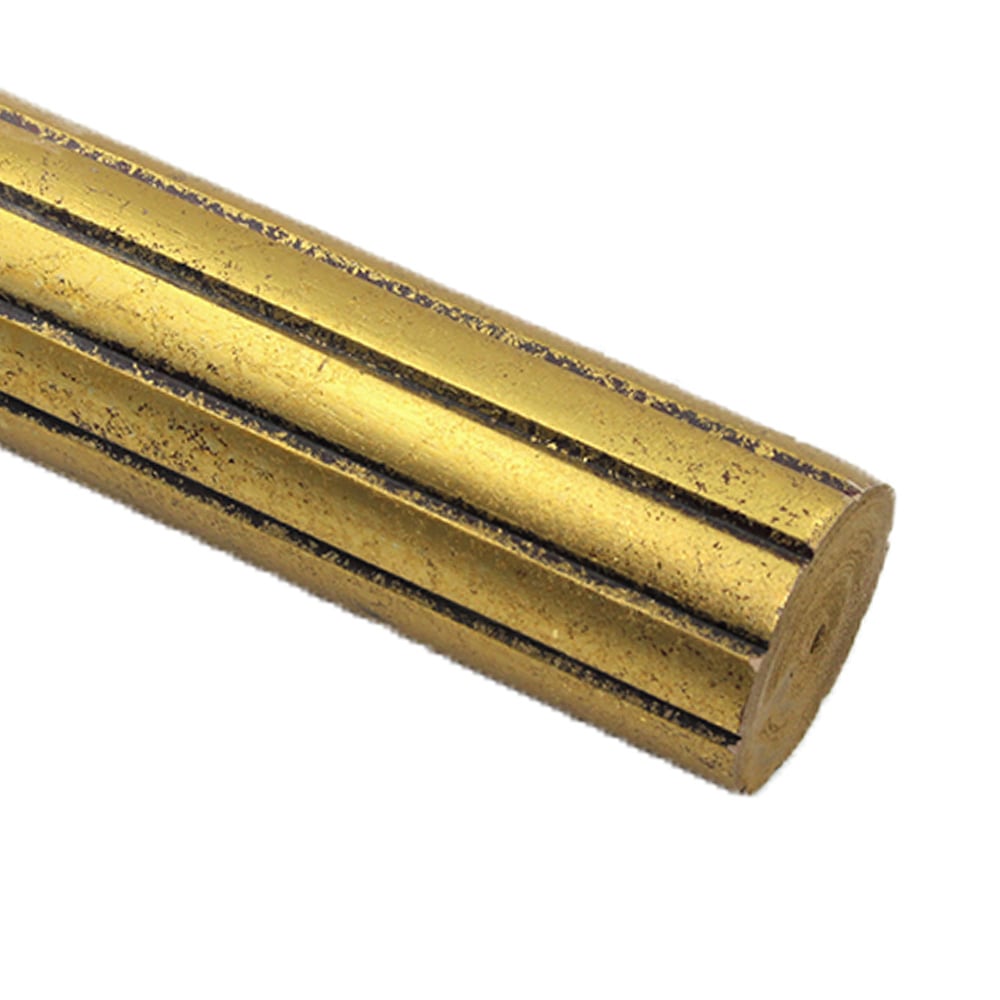

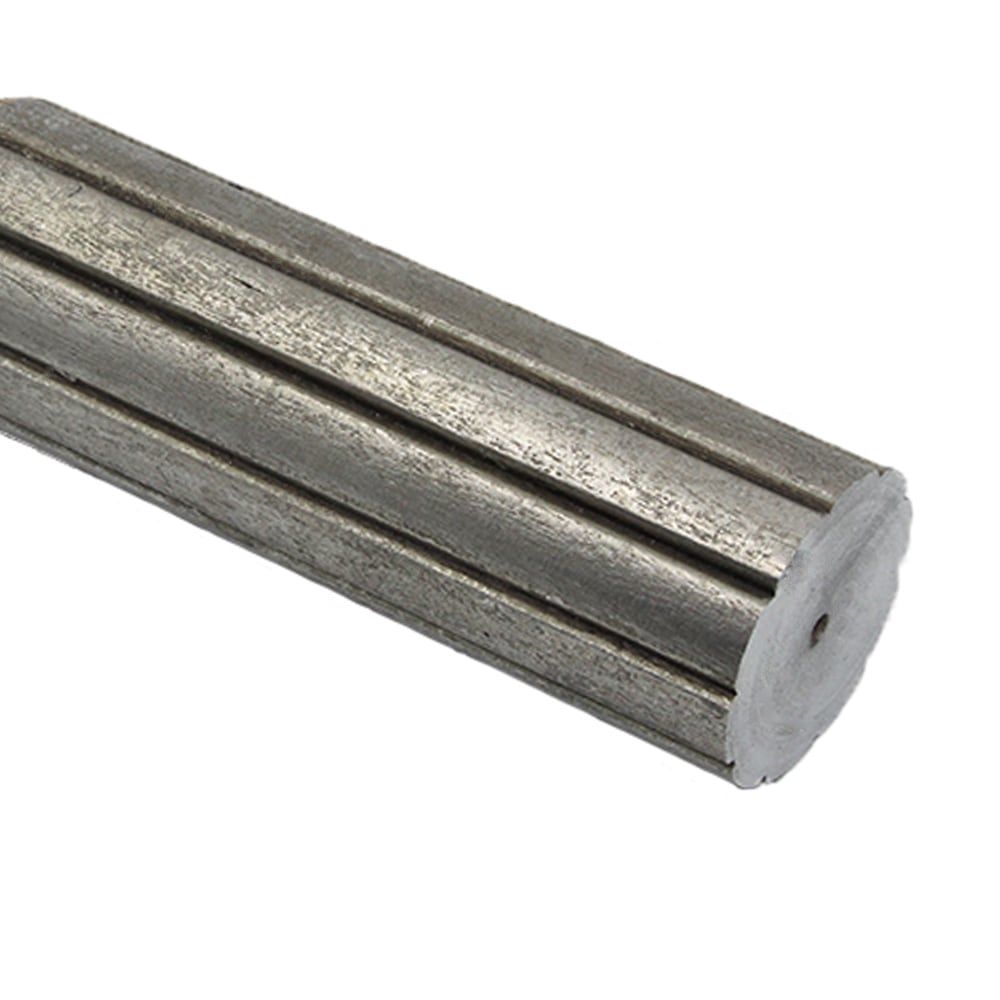

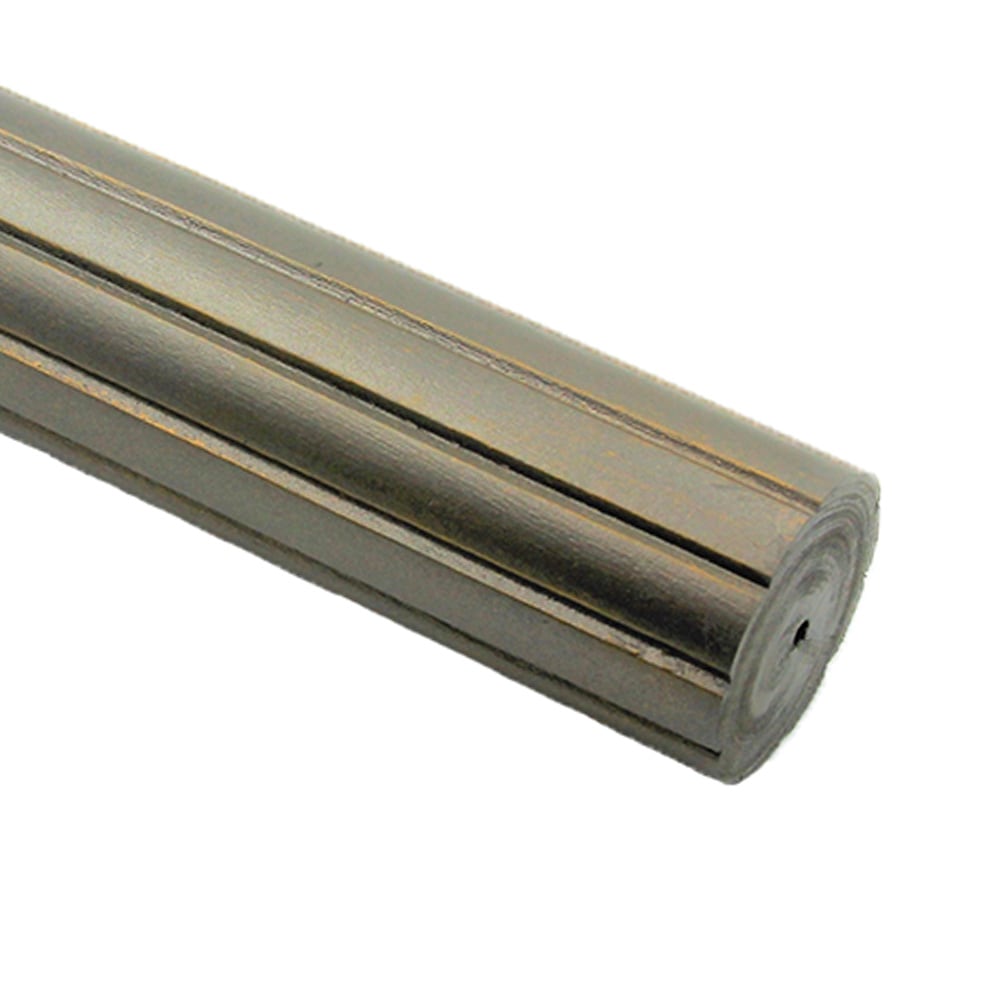

2" Fluted Wooden Rod

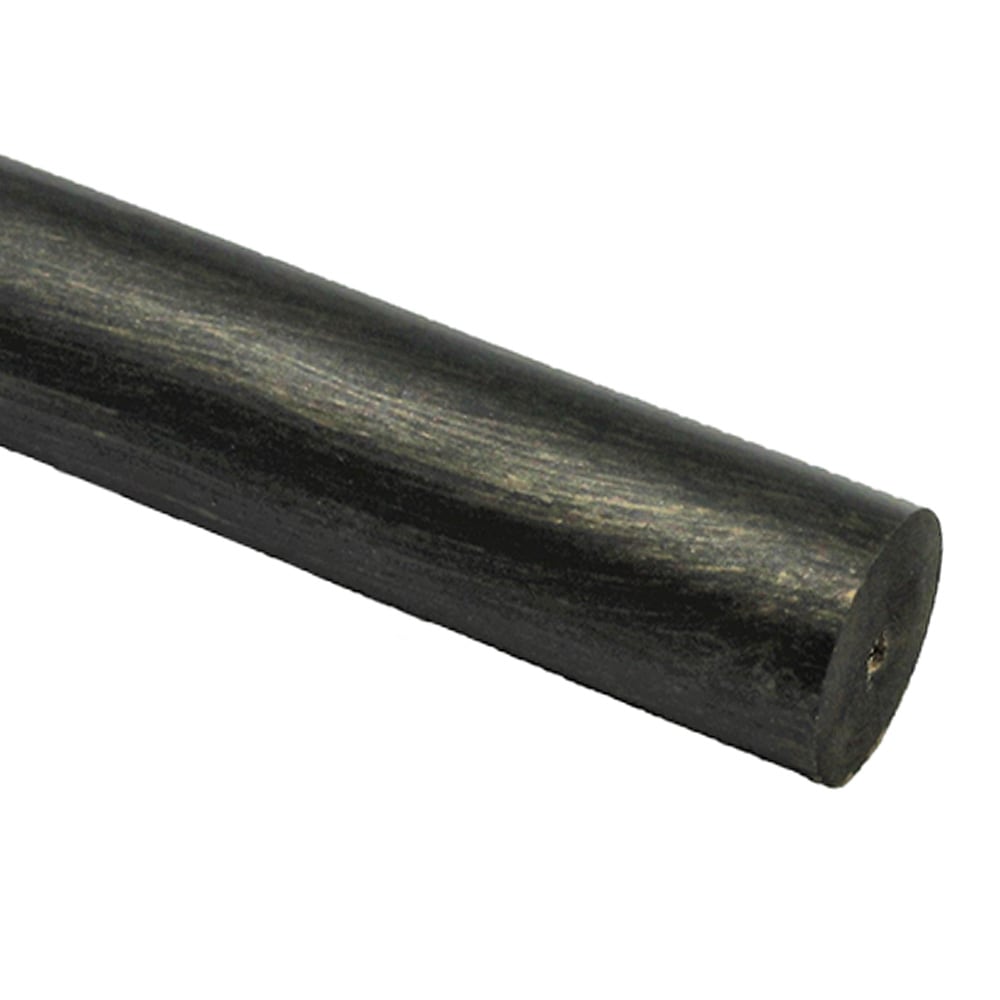

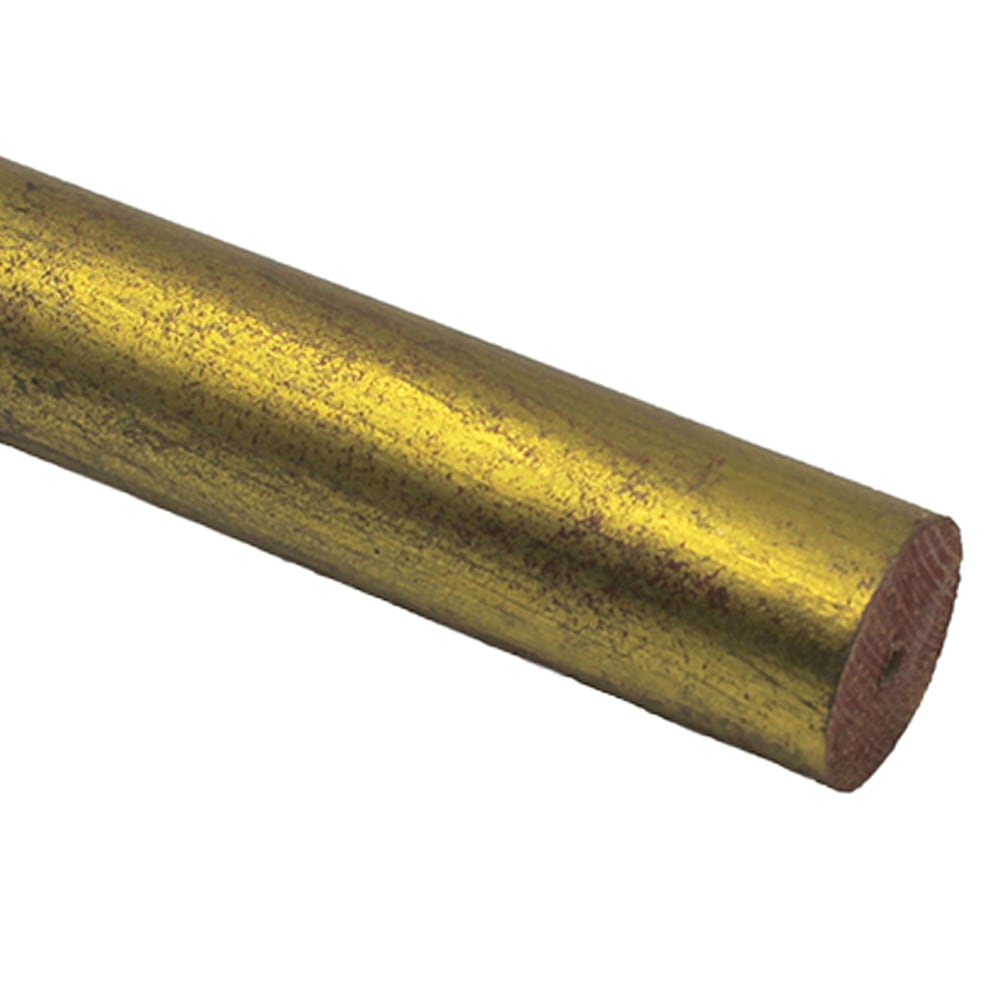

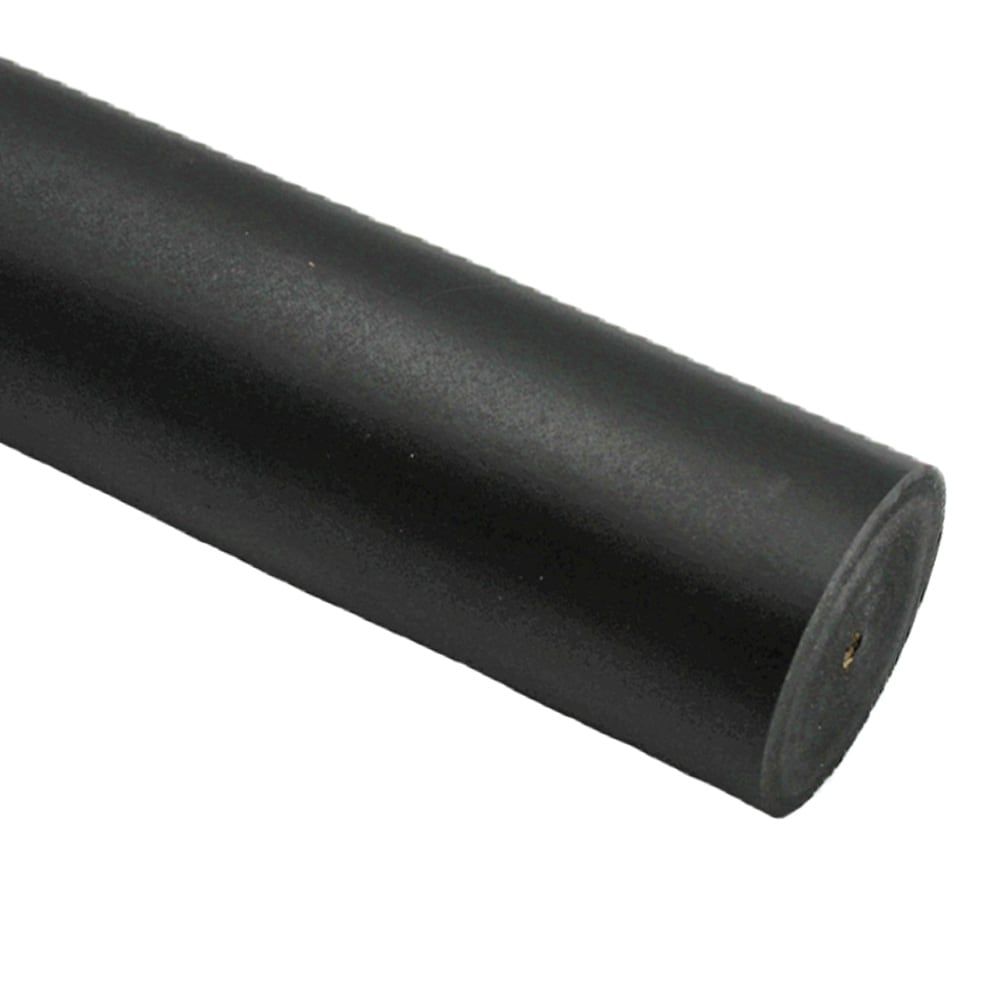

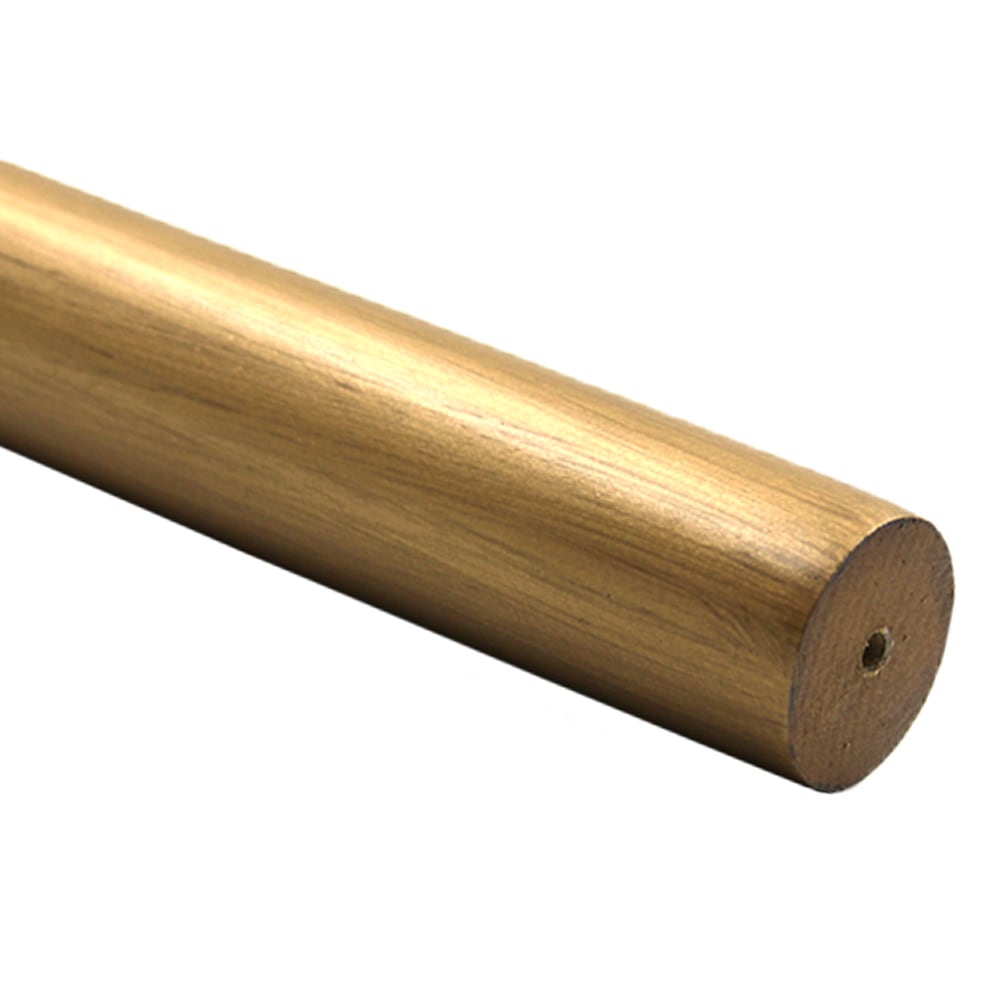

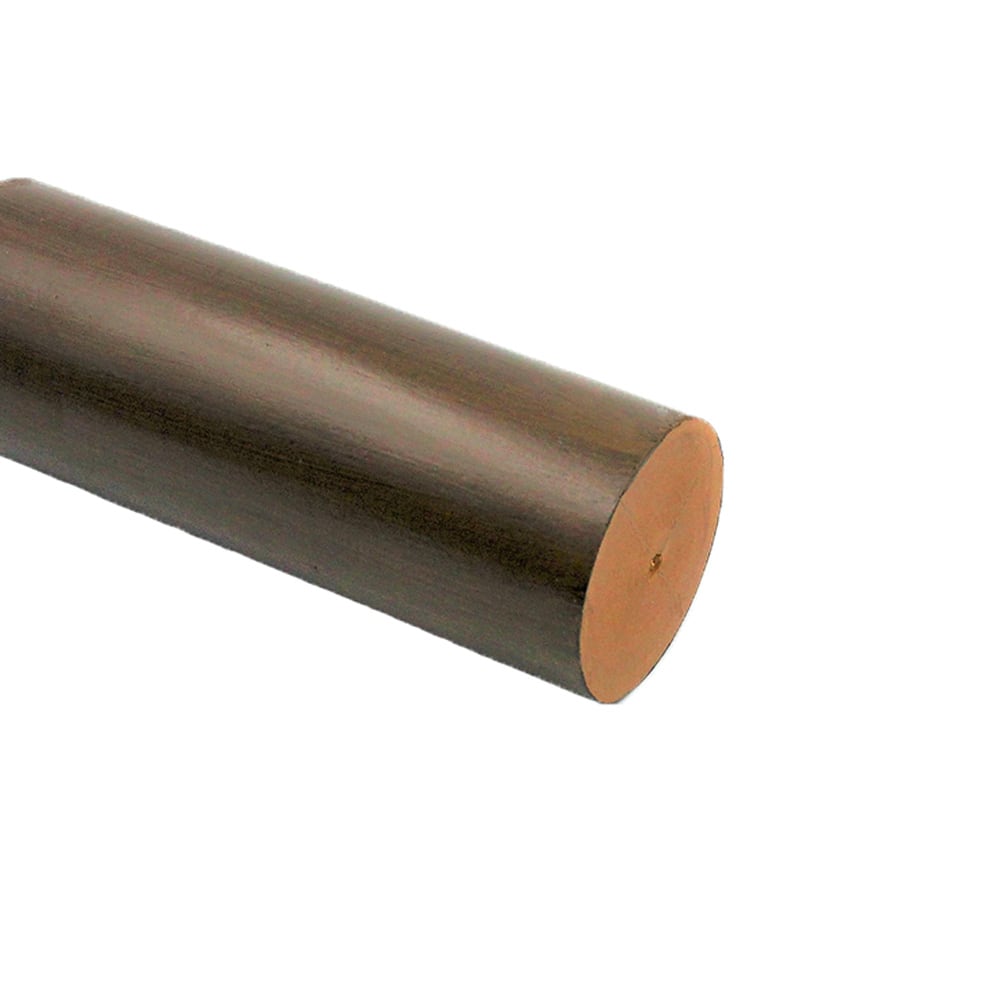

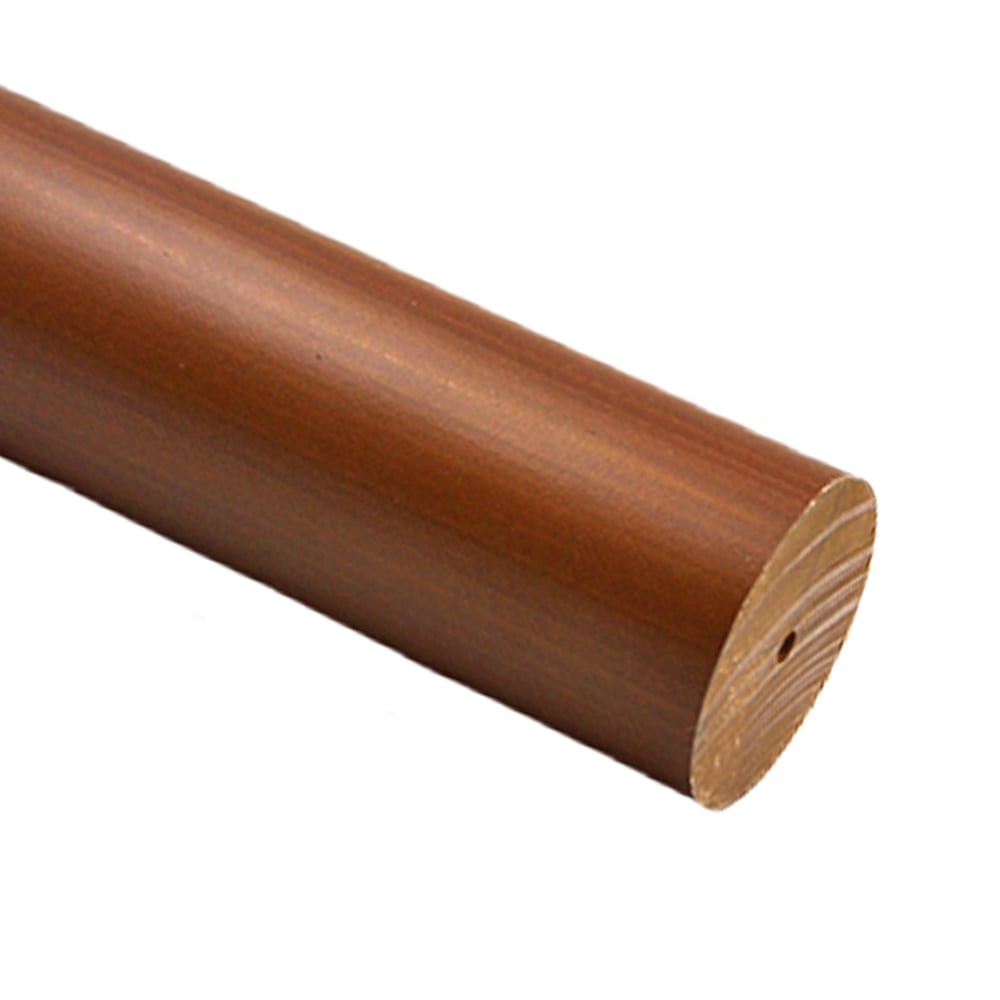

1-3/8" Smooth Wooden Rod

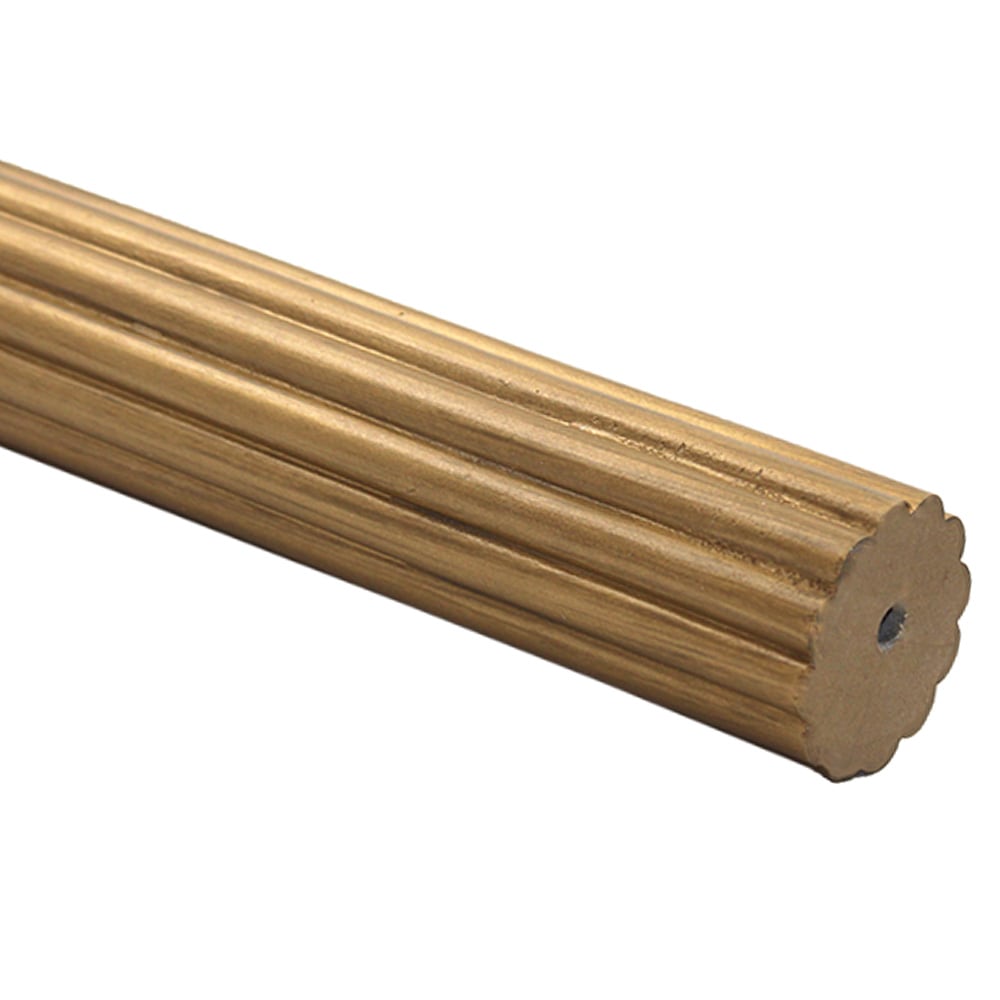

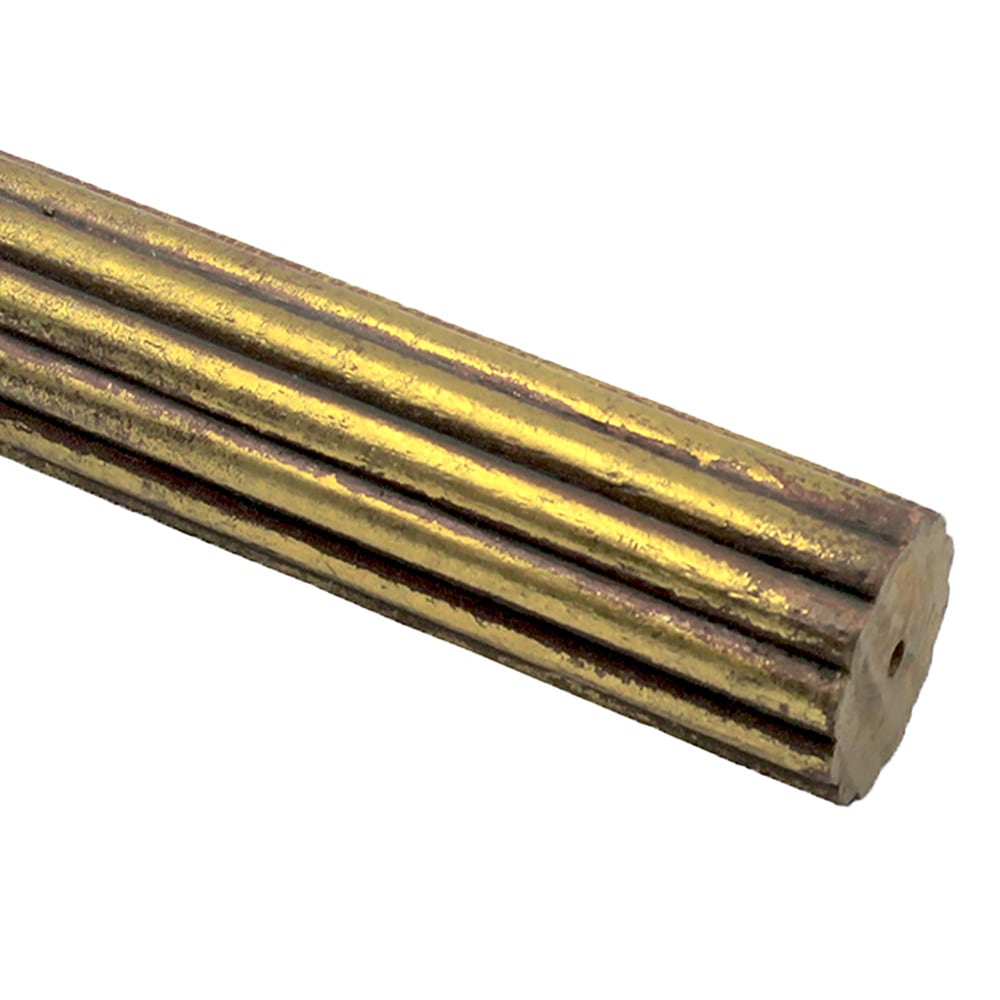

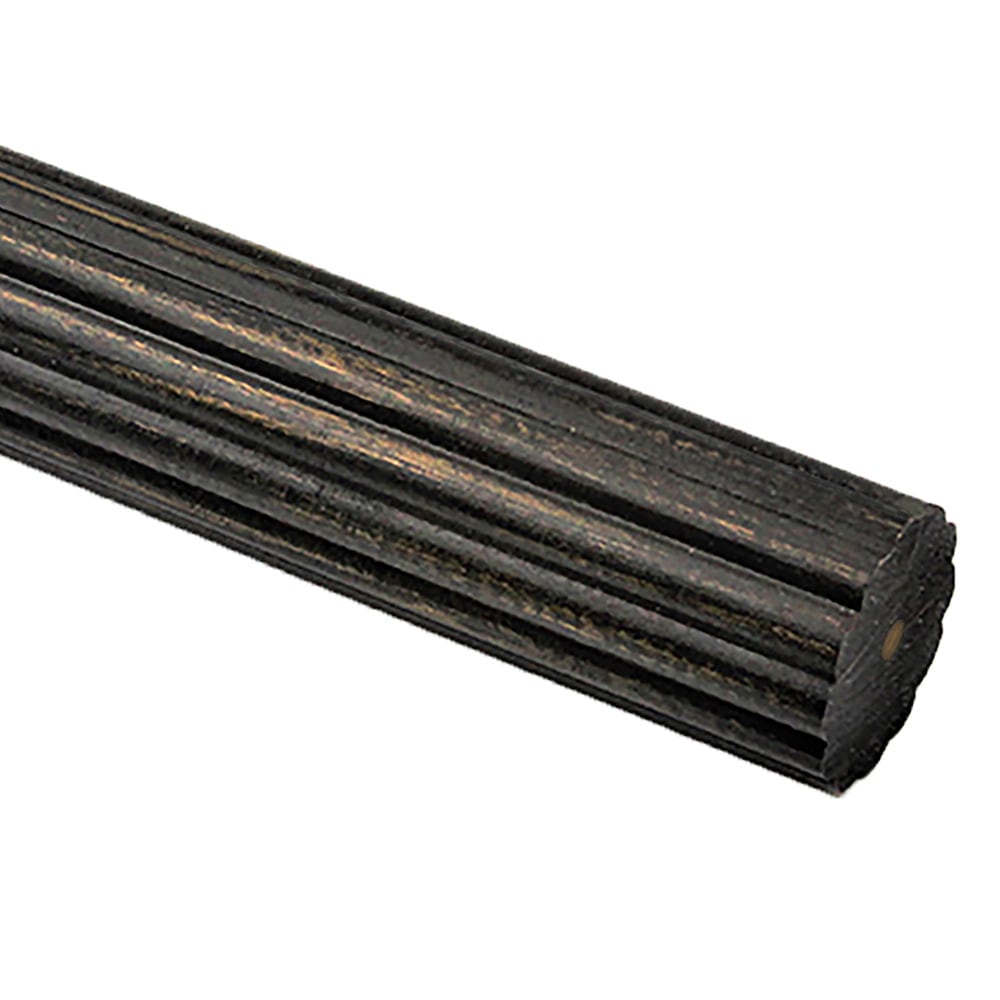

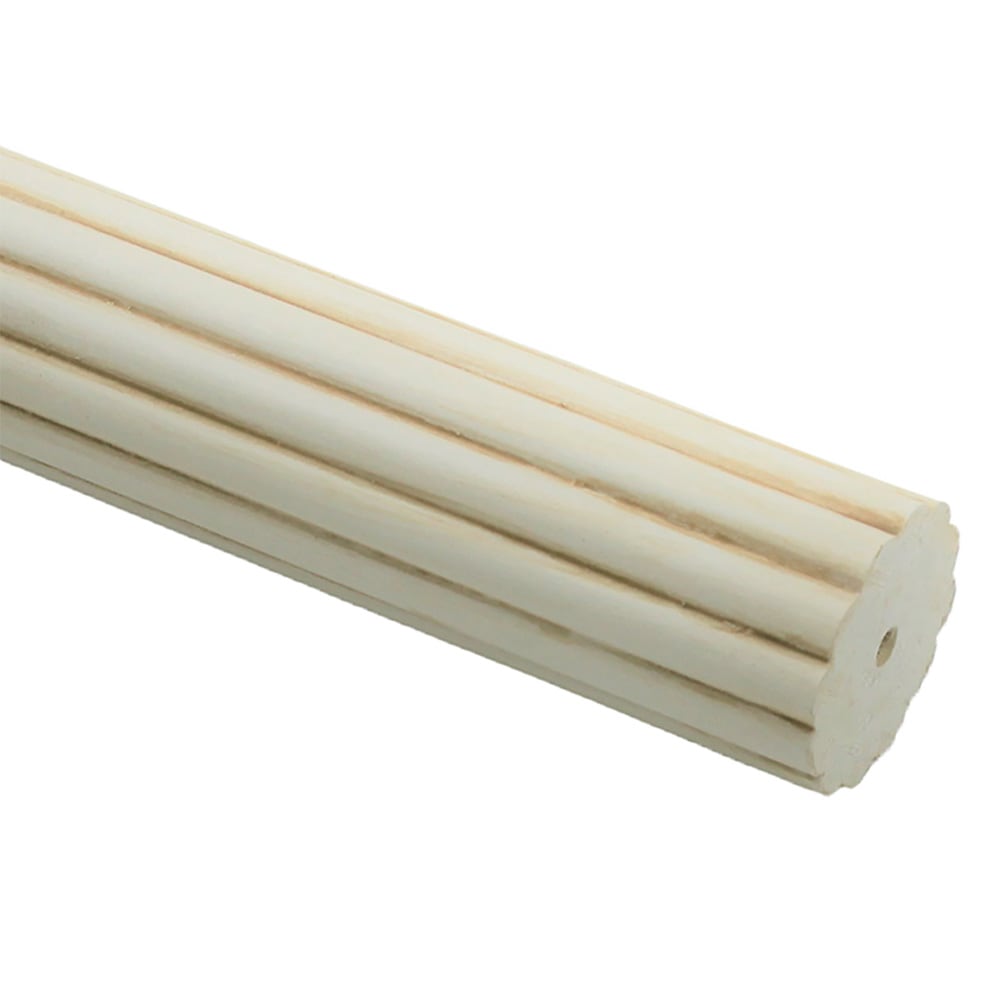

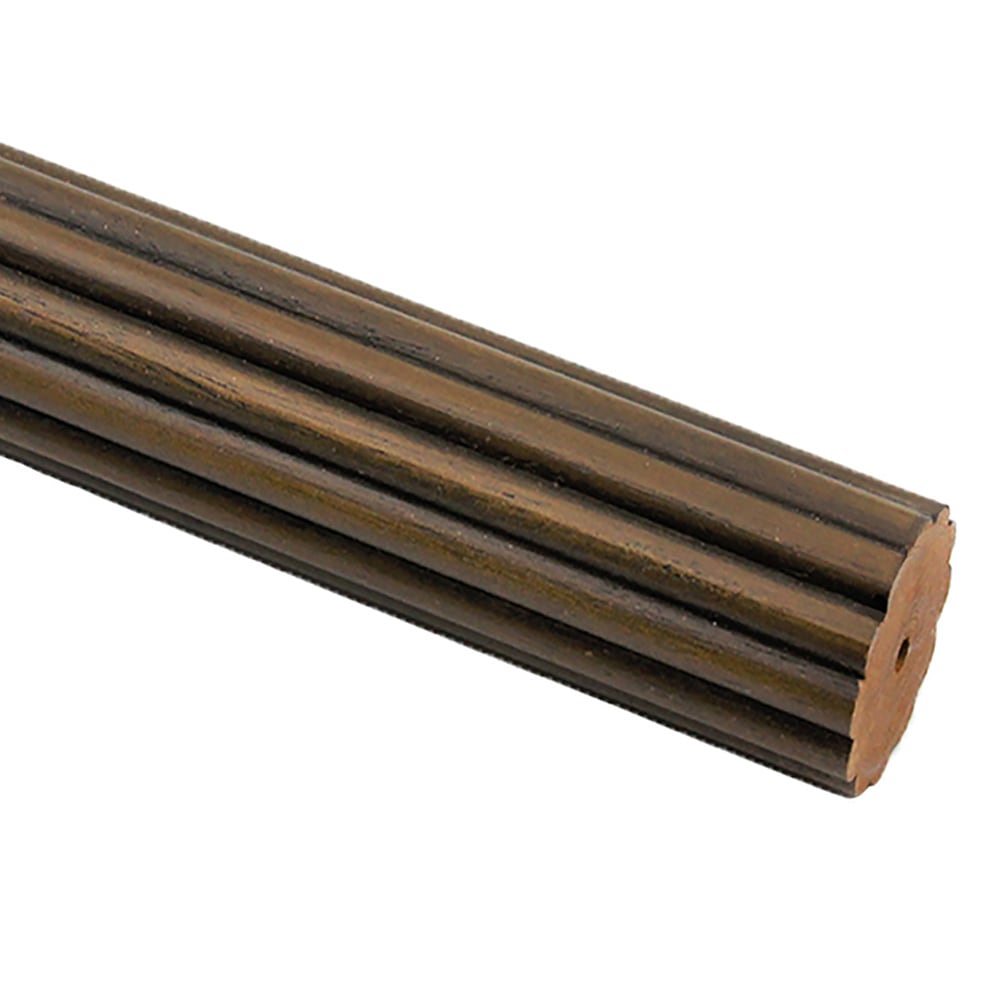

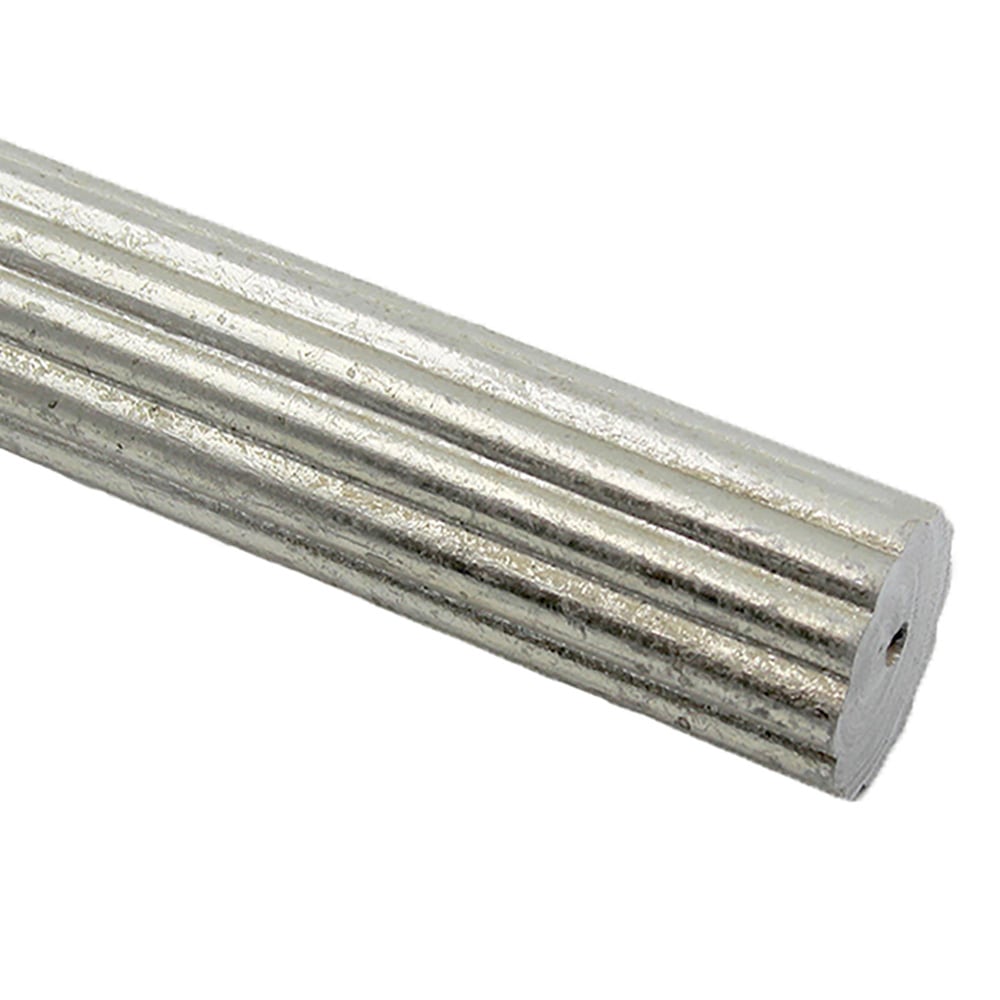

1-3/8” Reeded Wooden Rod

Front Stationary Rod Finish

Rod fascia will be 1/2" longer than the track so that the base of the finial can overlap the rod

Please select a finish for your 2" Smooth Wooden Rod
Antique Silver
aw
Faux Wood
Black Walnut
Fruitwood
Gilded Gold
Vintage Gold
Soho Ebony
Urban Bronze
Aged White
Walnut
Bronze/Black
Grey/Gold
Please select a finish for your 2" Fluted Wooden Rod
Antique Silver
aw
Faux Wood
Gilded Gold
Vintage Gold
Aged White
Grey/Gold
Bronze/Black
Please select a finish for your 1-3/8" Smooth Wooden Rod

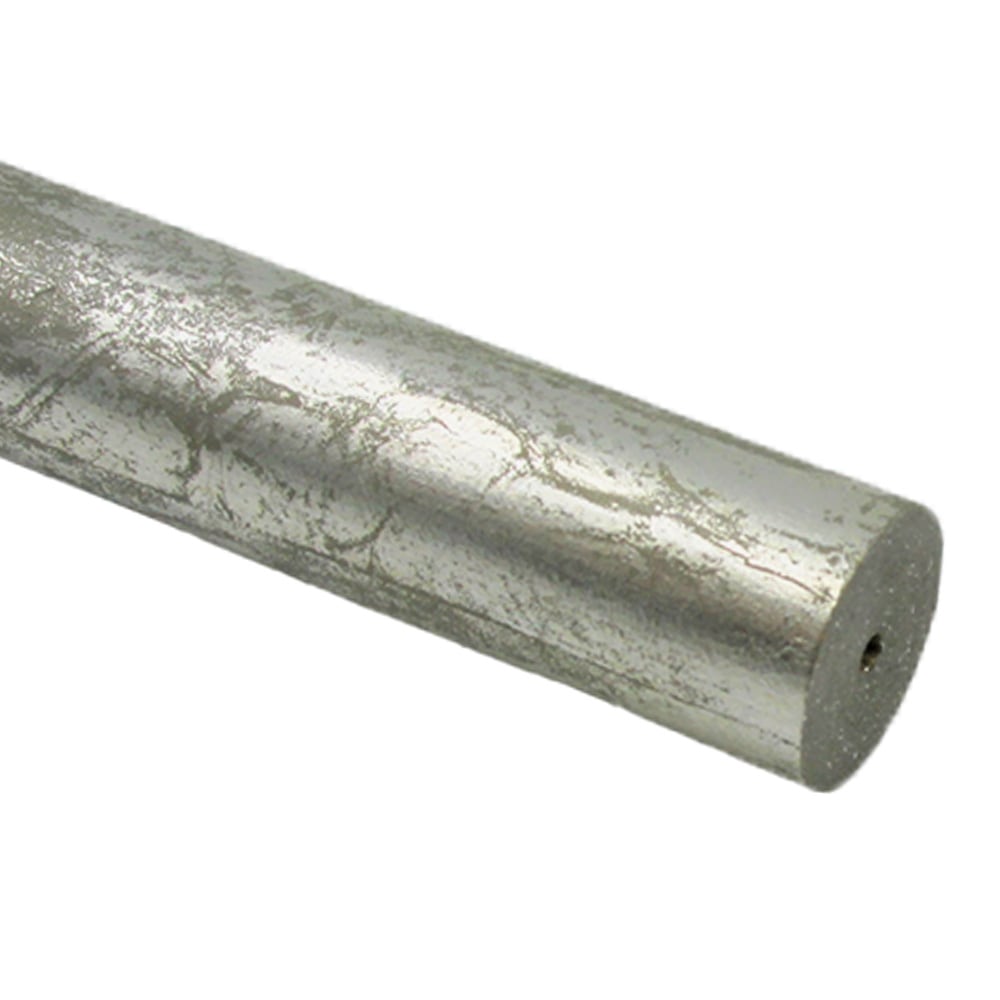

Antique Silver
Faux Wood
Fruitwood
Gilded Gold
Vintage Gold
Soho Ebony

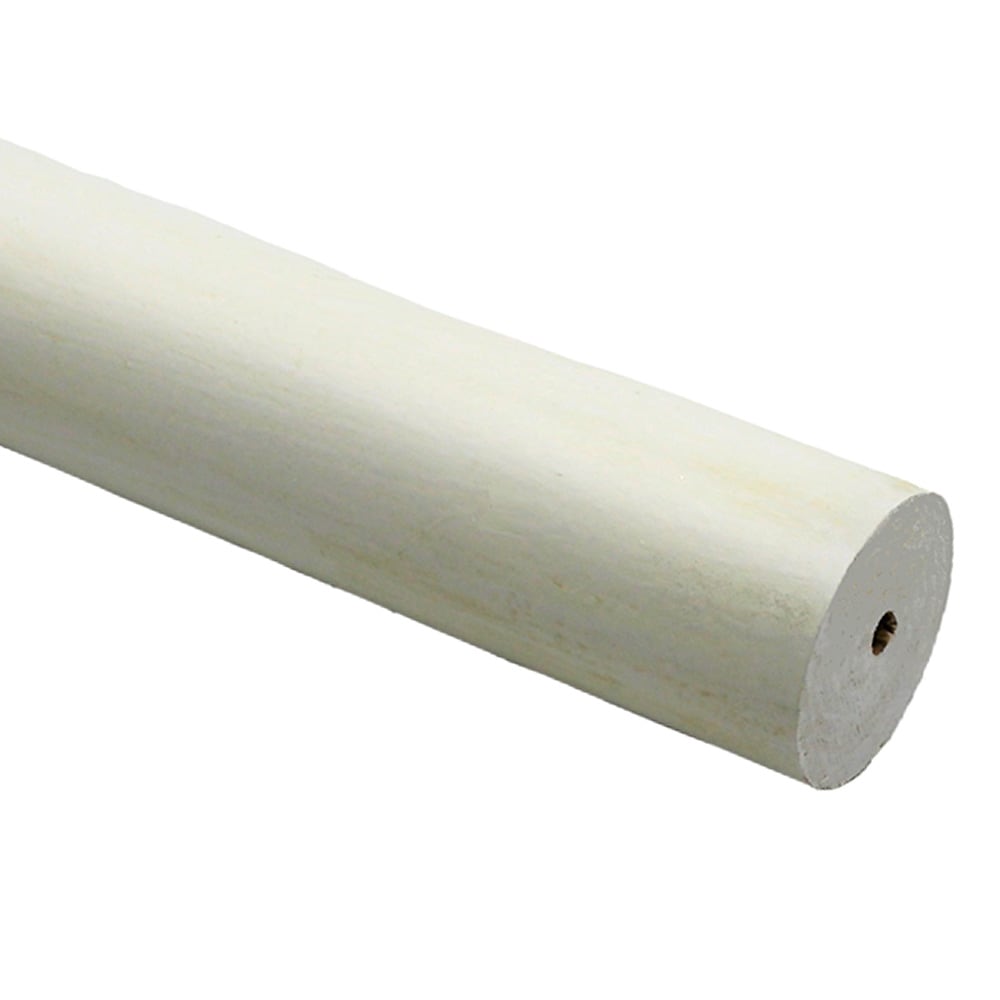

Aged White
Walnut
Bronze/Black
Urban Bronze
Please select a finish for your 1-3/8” Fluted Wooden Rod
Antique Silver
Faux Wood
Gilded Gold
Vintage Gold
Aged White
Bronze/Black

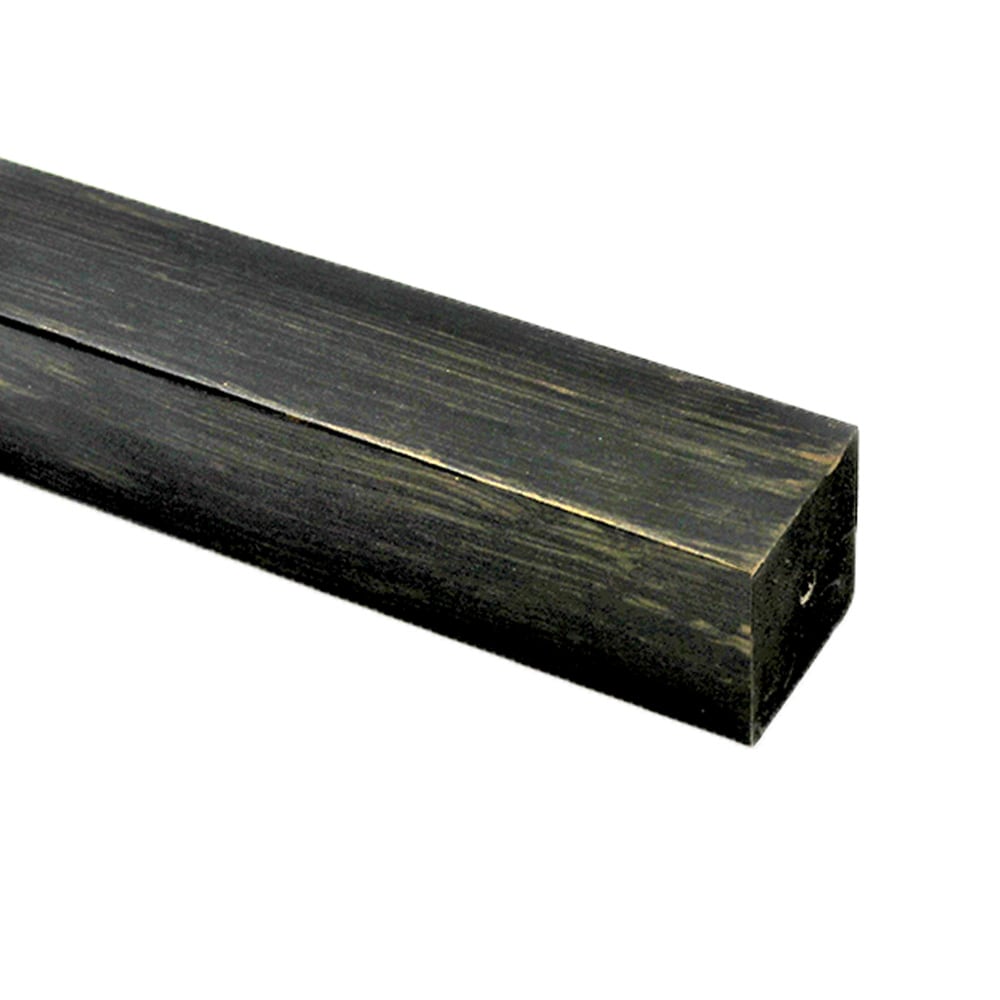

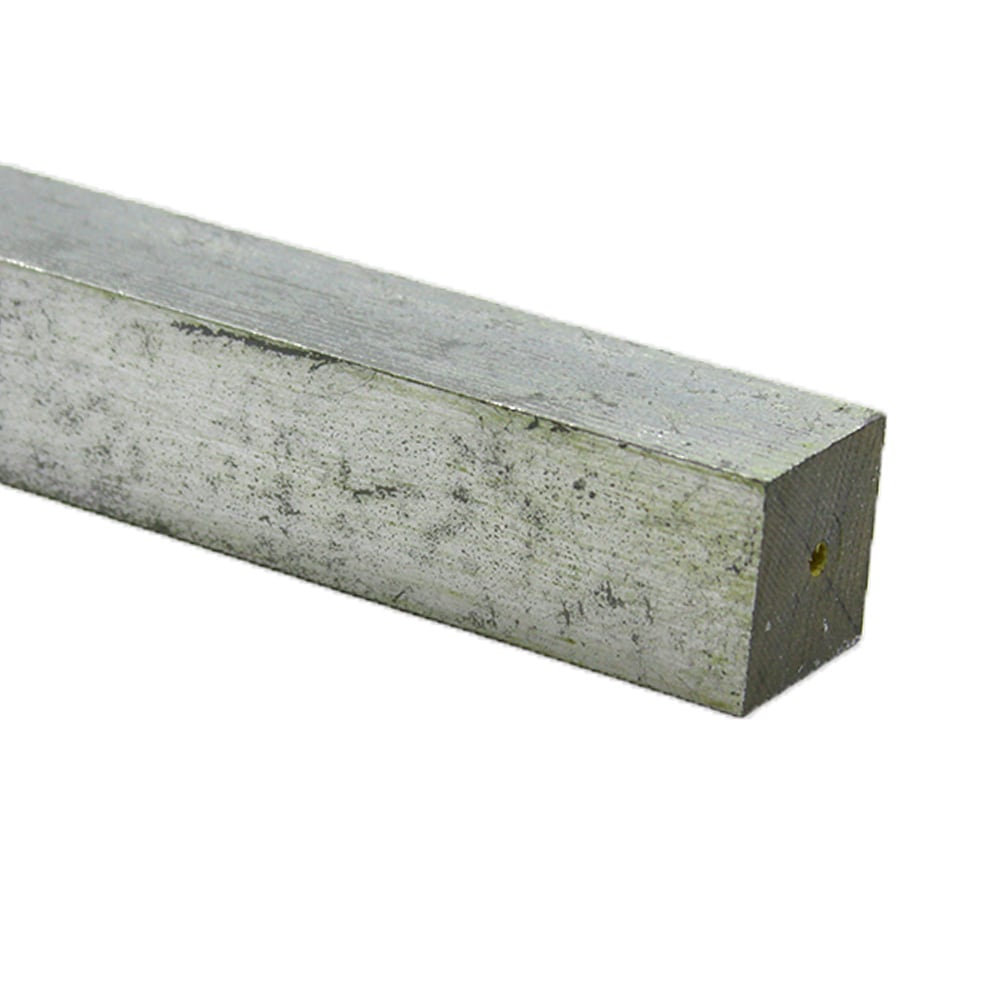

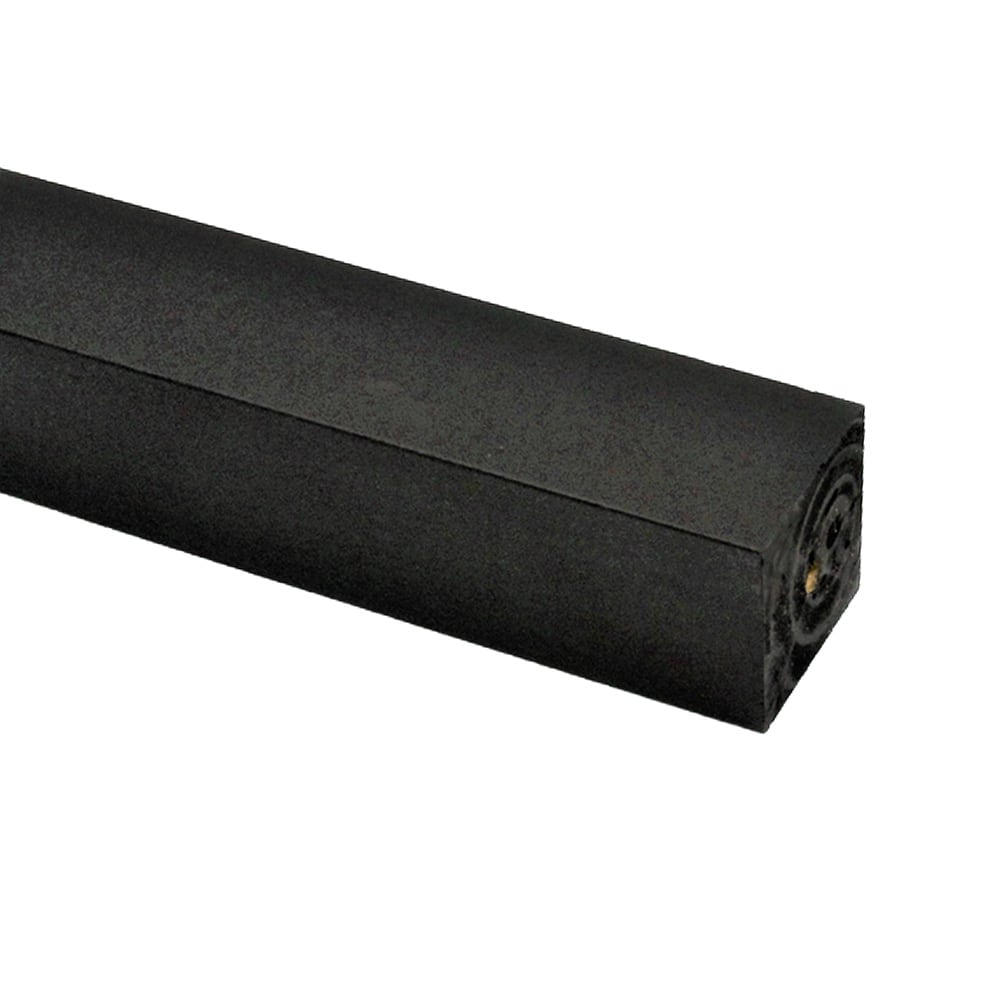

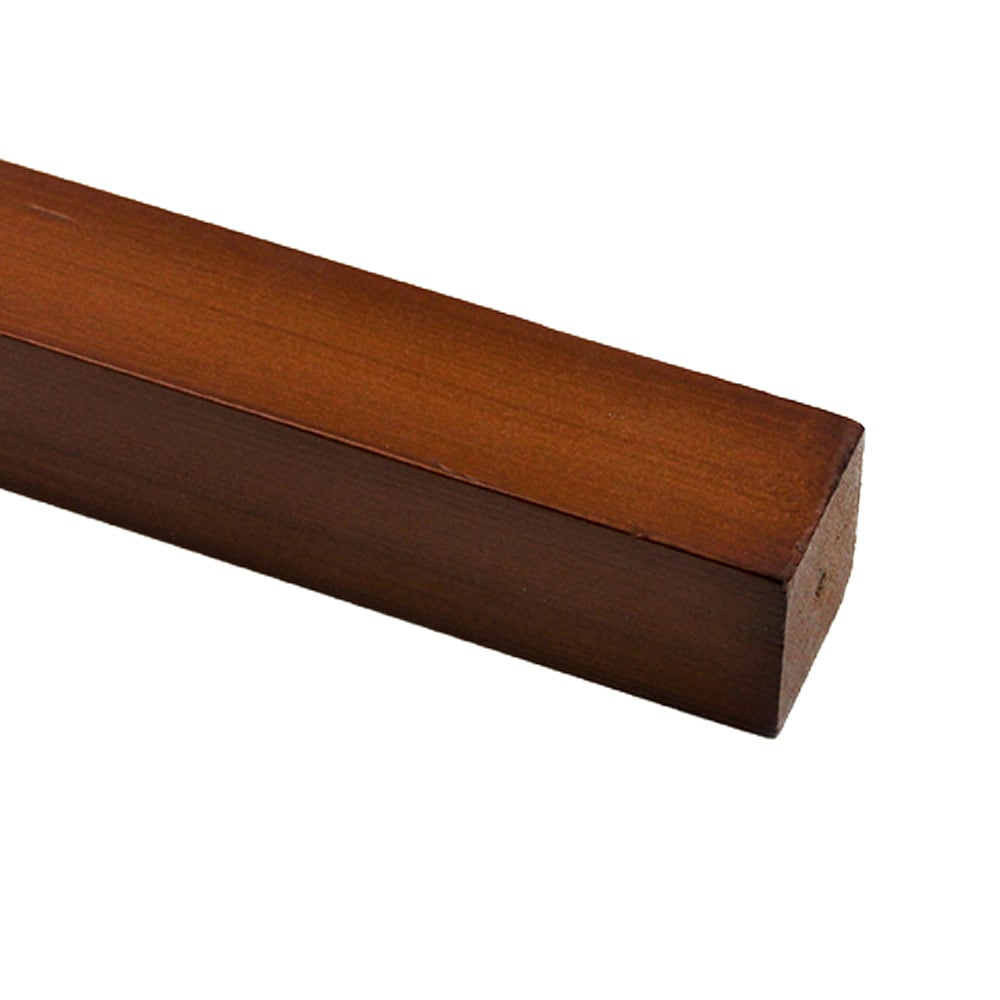

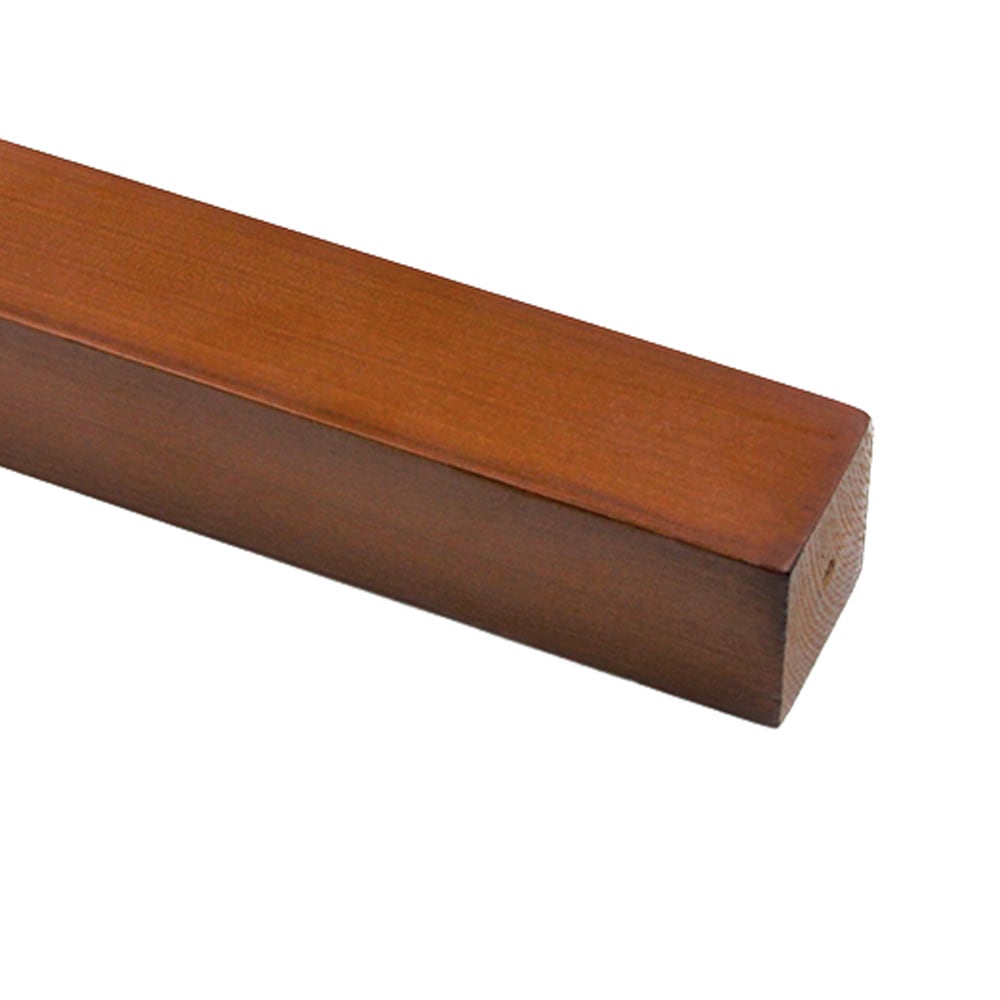

Please select a finish for your 1-3/8" Square Wooden Rod
Antique Silver
Fruitwood
Gilded Gold
Soho Ebony
Urban Bronze
Aged White
Walnut
Faux Wood
Rear Rod Fascia Style

Rod Fascia’s are custom spliced diagonally in the center and permanently attached to a color coordinated dual-glide track. Wood rod fascia’s may be selected in 2” smooth or fluted designs. 1-3/8” wood rod fascia’s may be selected in smooth, reeded, and square designs, and metal rods may be selected in a 1-1/4” compatible smooth design.

Please select Rear Rod Fascia Style

2" Smooth Wooden Rod

2" Fluted Wooden Rod

1-3/8" Smooth Wooden Rod

1-3/8” Reeded Wooden Rod

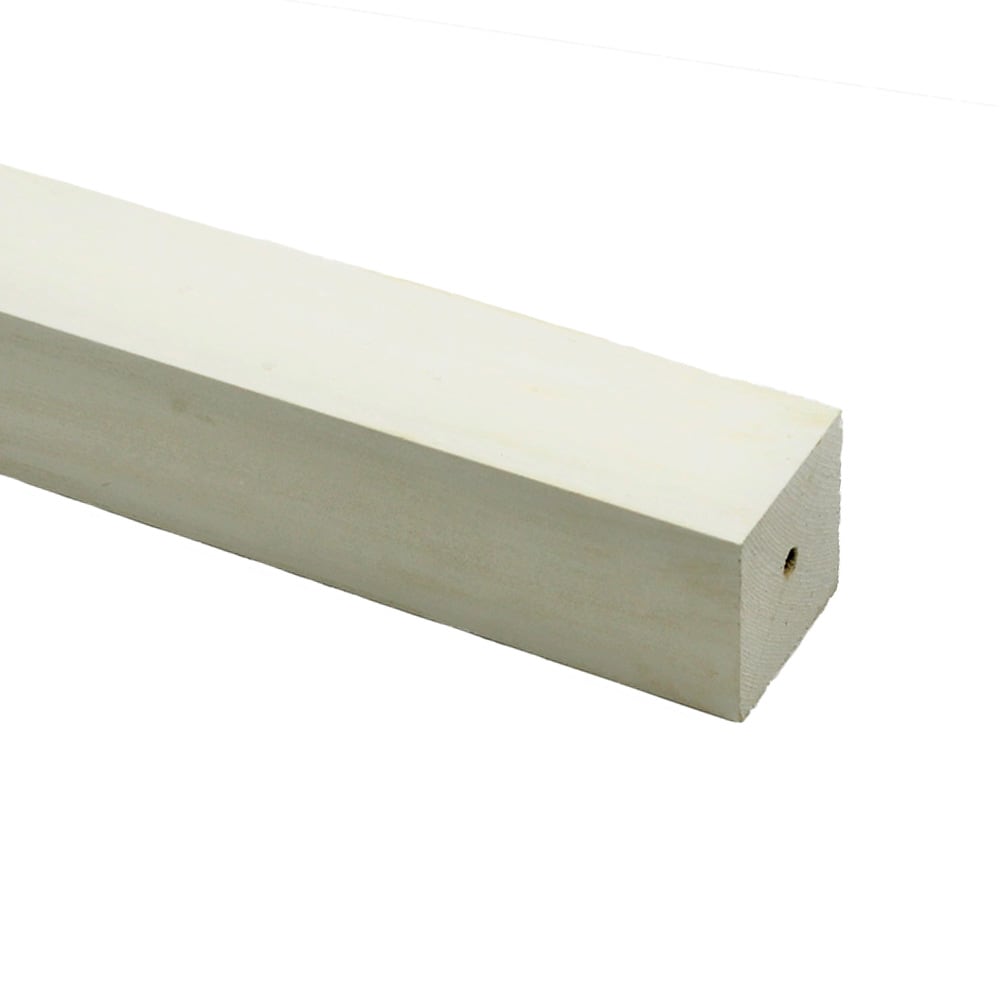

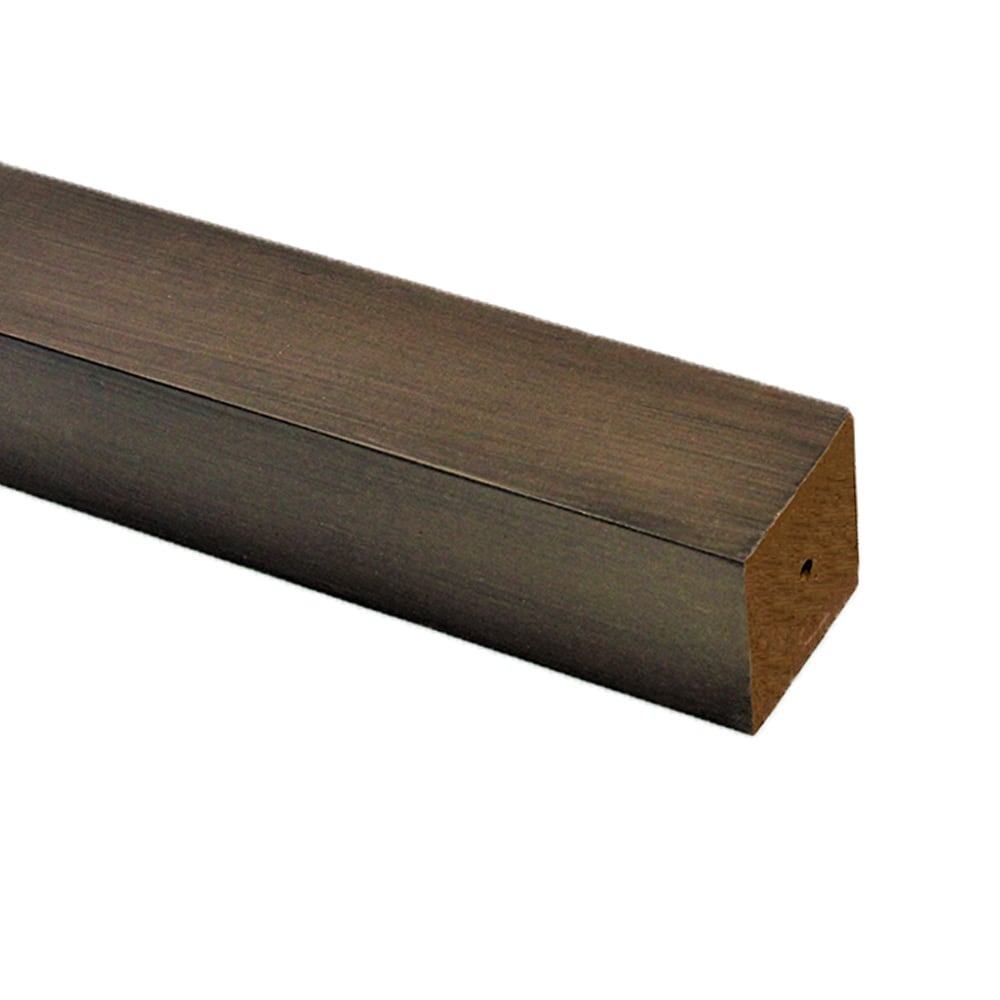

1-3/8" Square Wooden Rod

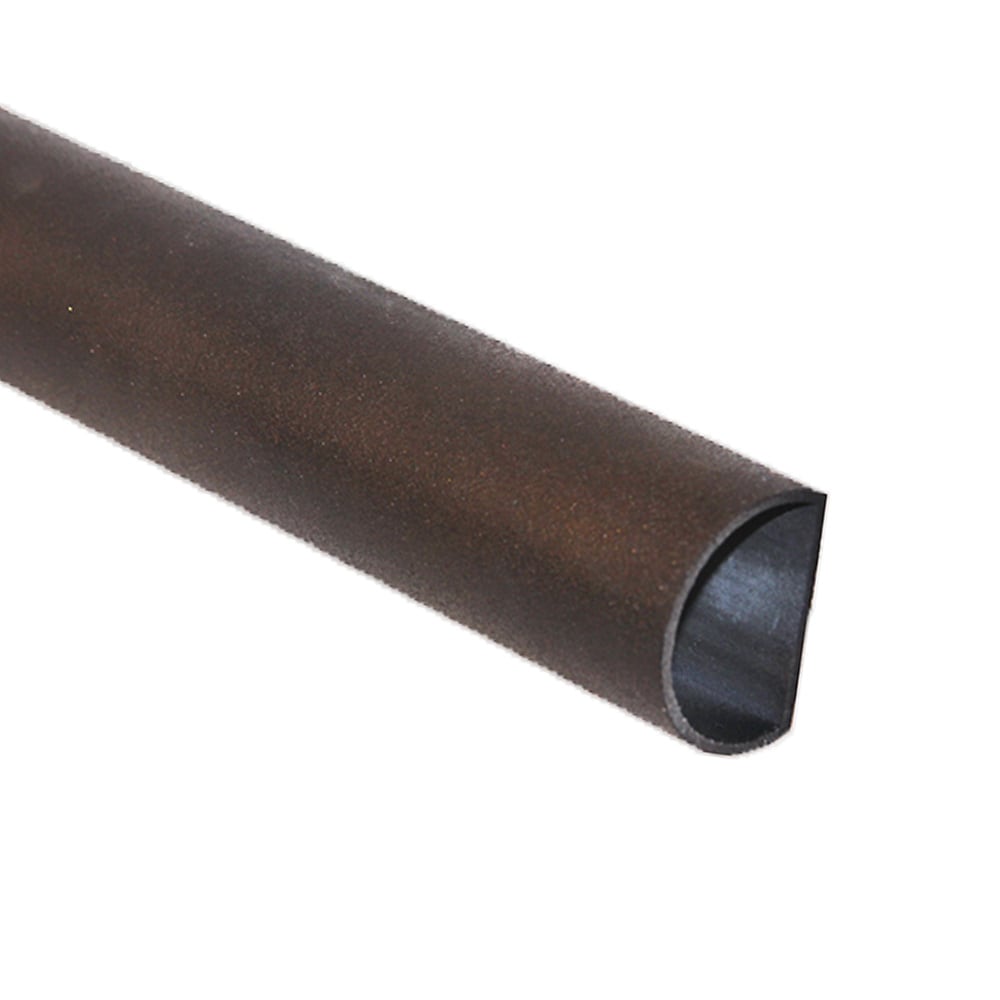

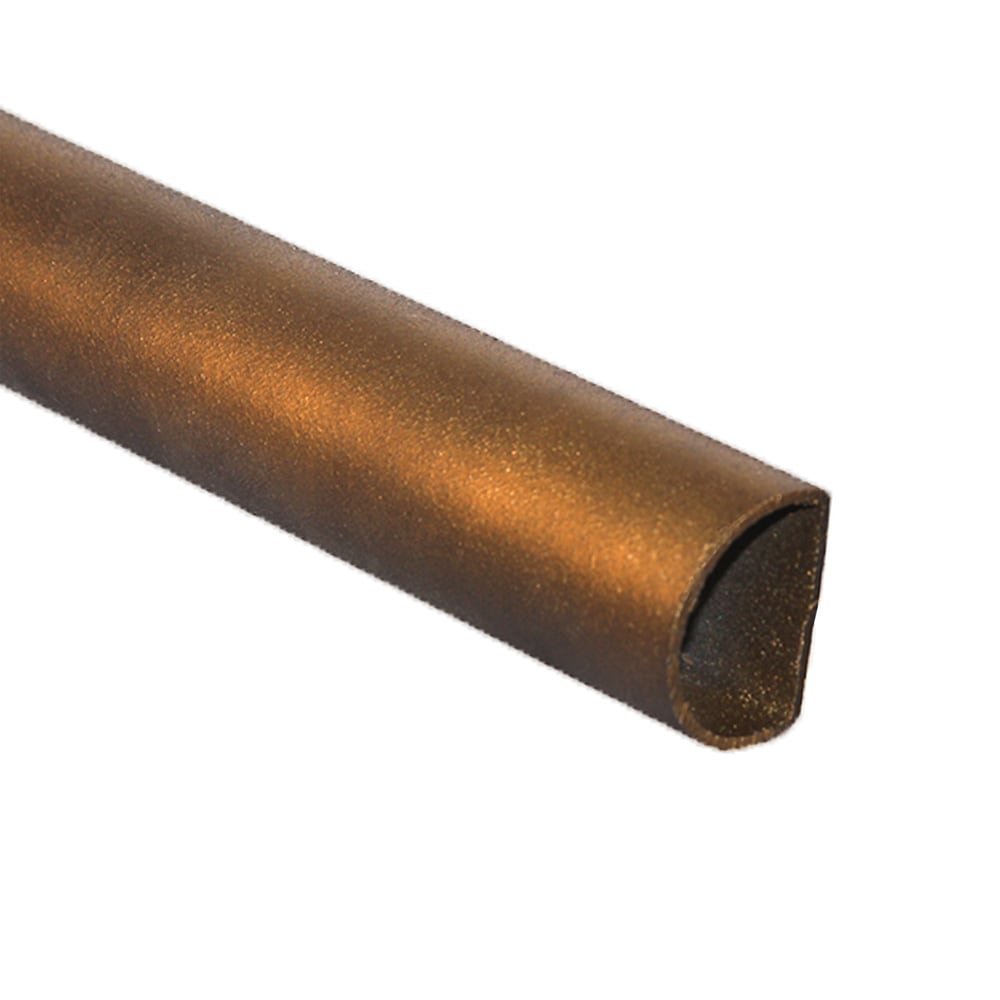

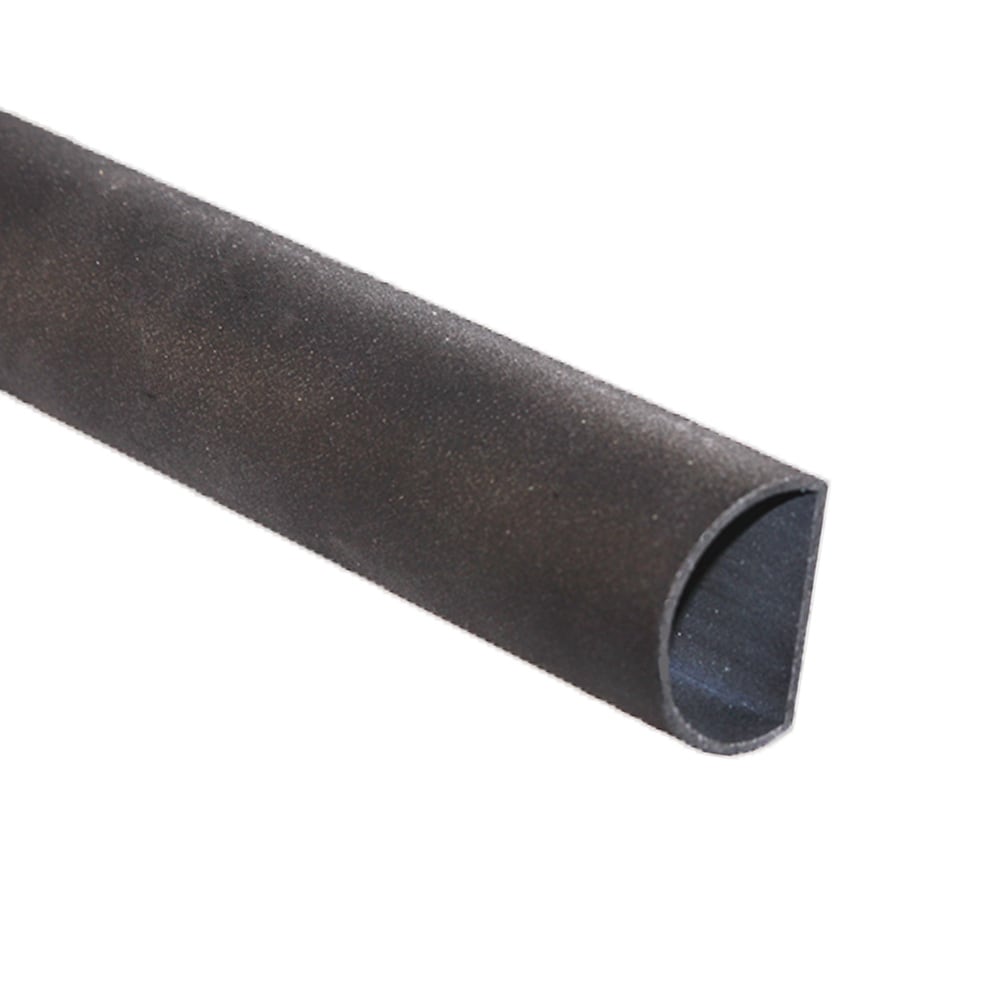

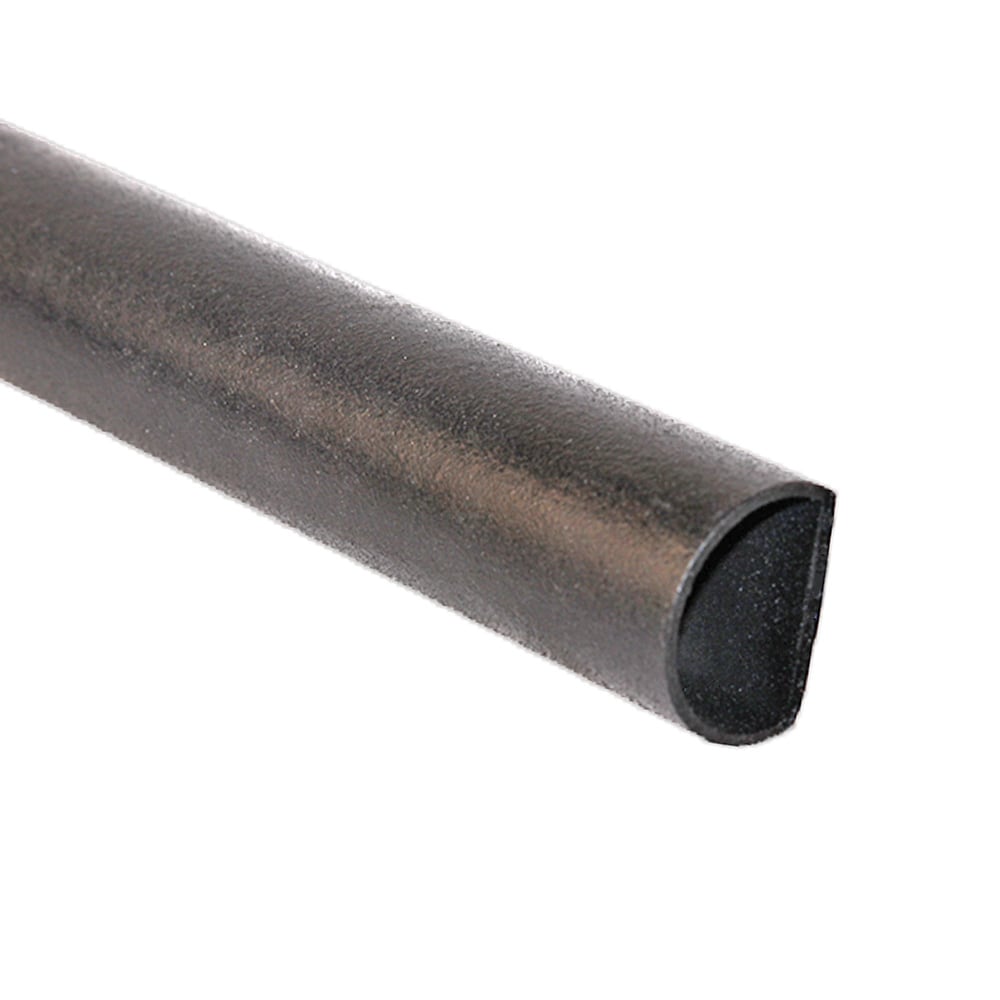

1-1/4" Metal Rod

No Fascia - Track Only

Rear Rod Fascia Finish

Rod fascia will be 1/2" longer than the track so that the base of the finial can overlap the rod

Please select a finish for your 2" Smooth Wooden Rod
Antique Silver
aw
Faux Wood
Black Walnut
Fruitwood
Gilded Gold
Vintage Gold
Soho Ebony
Urban Bronze
Aged White
Walnut
Bronze/Black
Grey/Gold
Please select a finish for your 2" Fluted Wooden Rod
Antique Silver
aw
Faux Wood
Gilded Gold
Vintage Gold
Aged White
Grey/Gold
Bronze/Black
Please select a finish for your 1-3/8" Smooth Wooden Rod
Antique Silver
Faux Wood
Fruitwood
Gilded Gold
Vintage Gold
Soho Ebony
Aged White
Walnut
Bronze/Black
Urban Bronze
Please select a finish for your 1-3/8” Fluted Wooden Rod
Antique Silver
Faux Wood
Gilded Gold
Vintage Gold
Aged White
Bronze/Black
Please select a finish for your 1-3/8” Square Wooden Rod
Antique Silver
Fruitwood
Gilded Gold
Soho Ebony
Urban Bronze
Aged White
Walnut
Faux Wood
Please select a finish for your 1-1/4” Metal Rod
Flaxen Gold
Old World Bronze
Old World Black
Gunmetal
Track Finish
Track Measurements

Track is available in three powder coated finish colors (medallion gold, dark bronze, and white) or anodized aluminum.

NOTE: We have provided the recommended powder-coated finish for the dual-glide traverse track that will be used in the fabrication of your traverse rod. This track finish will color coordinates with the front rod fascia you have selected. You may choose to change the dual-glide track finish to any of the four powder coated finishes by selecting a different option below.

Medallion Gold
Dark Bronze
Aluminum
White
Please scroll up and correct the errors


Step 3 - Front Rod Drapery Rings and Stow Bracket Info

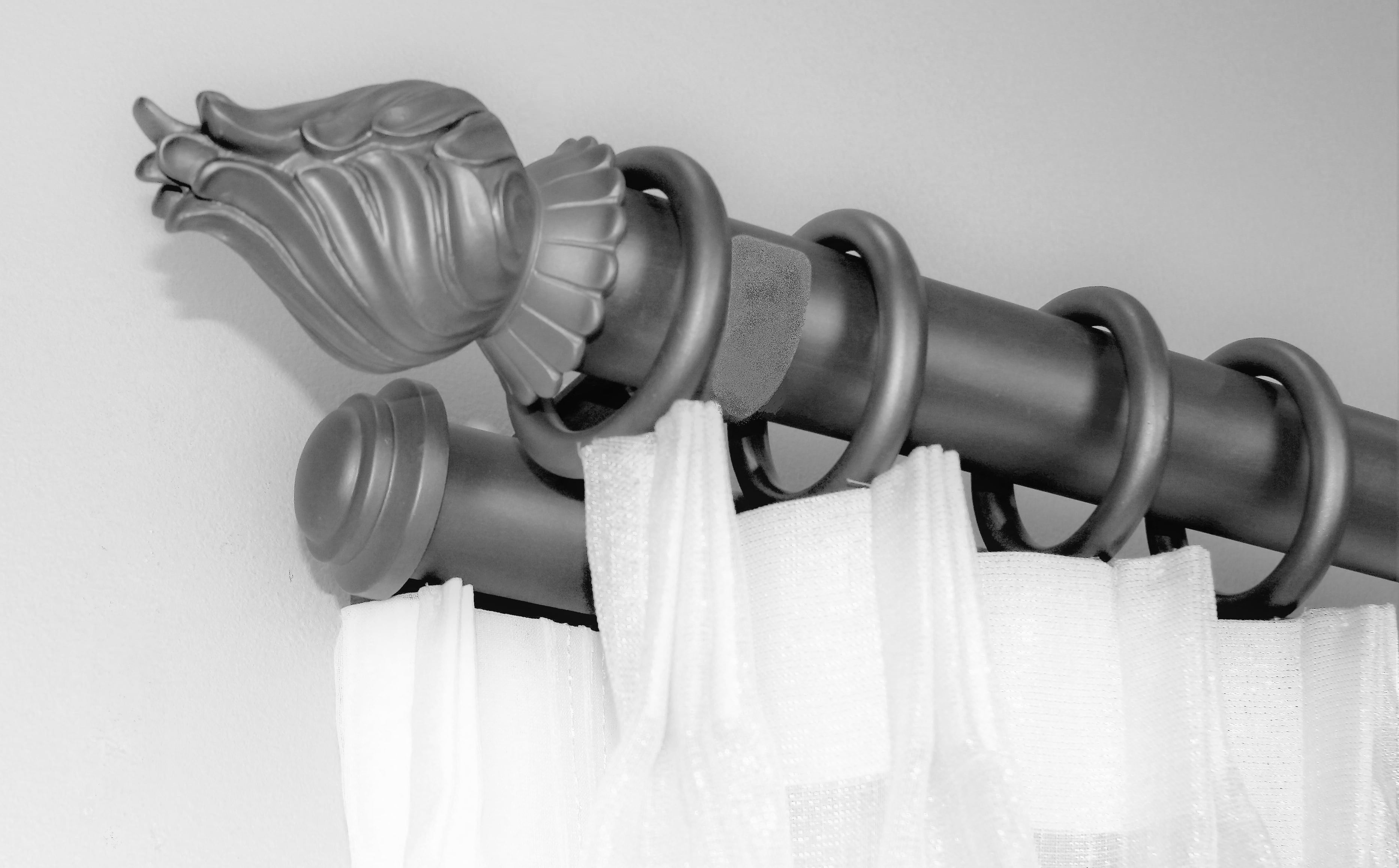

Drapery Rings
RING INFO

You may choose to add drapery rings to hold the fabric panels on the front stationary rod of your C-TRAV. Drapery rings are sold separate and our ring design offering in the finish you selected for your front stationary rod is shown below.

Bracket Configuration
BRACKET DIAGRAM

All finishes of the STOW bracket matches each rod fascia. Standard industry hardware included (see more information for diagram). Please consult with professional installer for recommendation on fasteners to be used for your specific installation conditions. Professional Installation recommended.

NOTE: Based upon the rod length you've entered above, you will receive . To add additional brackets beyond this number, indicate the number of additional brackets you'd like below.

Please select a return length for your bracket
7-1/2" Return - 2" Front Rod and Fascia in Back
7-1/2" Return - 2" Front Rod and Track Only in Back
6-1/4" Return - 2" Front Rod and Fascia in Back

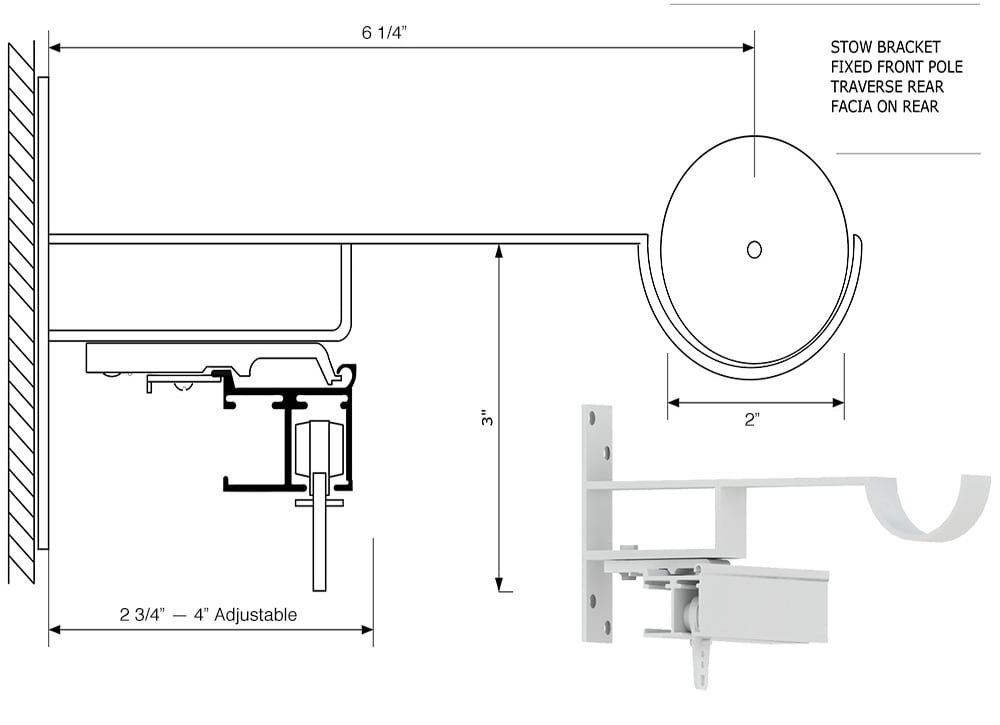

6-1/4" Return - 2" Front Rod and Track Only in Back

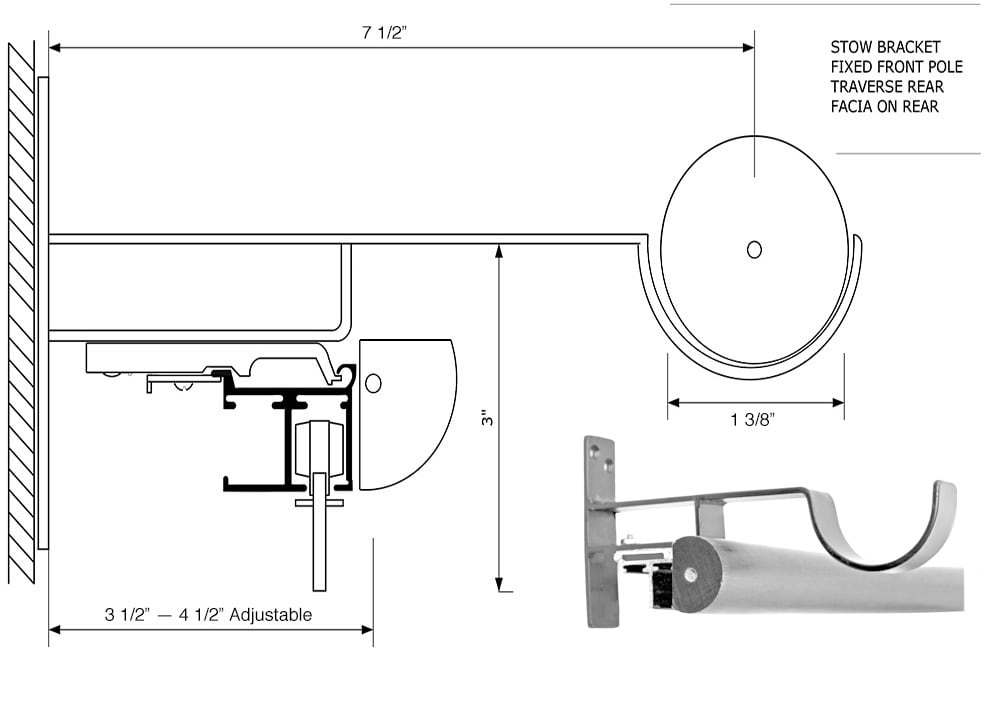

7-1/2" Return - 1-3/8" Front Rod and Fascia in Back

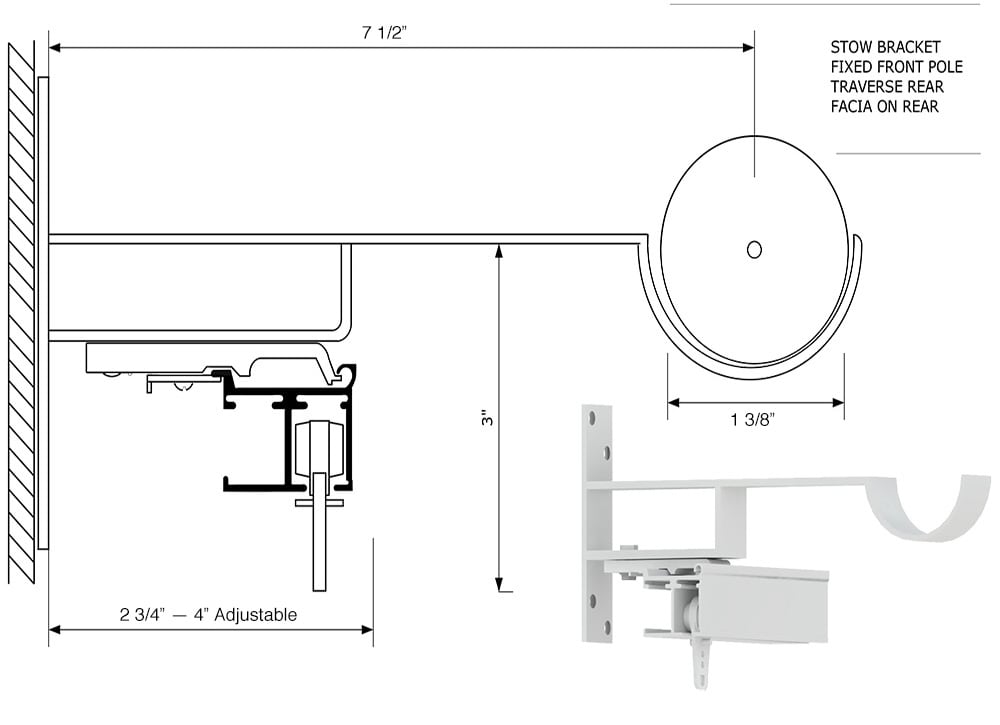

7-1/2" Return - 1-3/8" Front Rod and Track Only in Back
6-1/4" Return - 1-3/8" Front Rod and Fascia in Back
6-1/4" Return - 1-3/8" Front Rod and Track Only in Back
Please scroll up and correct the errors


Step 4 - Drapery Configuration

Traverse Rod Draw Direction

Right

Left

Center

Drapery Type
CARRIER INFO

Pinch Pleat

CARRIER INFO

Ripple Fold

Ripple Fold Fullness
Understanding Ripplefold Fullness

60%
Ball Bearing Roller Ripple Carrier 60% Fullness 2-5/8"

80%
Ball Bearing Roller Ripple Carrier 80% Fullness 2-3/8"

100%
Ball Bearing Roller Ripple Carrier 100% Fullness 2-1/8"

120%
Ball Bearing Roller Ripple Carrier 120% Fullness 1-7/8"

Knowledge Article: Understanding Ripplefold Fullness (Login Required)
Ripple Fold Carrier Options

Butt Master

Overlap Master

Carrier Options

NOTE: Based upon the rod length you've selected, you will receive carriers. To add additional carriers beyond this number, indicate the number of additional carriers you'd like below.

Additional preloaded carriers desired above and beyond the standard 3 per foot included by default.



Step 5 - Draw Type

Draw Type

Corded

Baton

Cord Options
Cord Drop
Left Drop

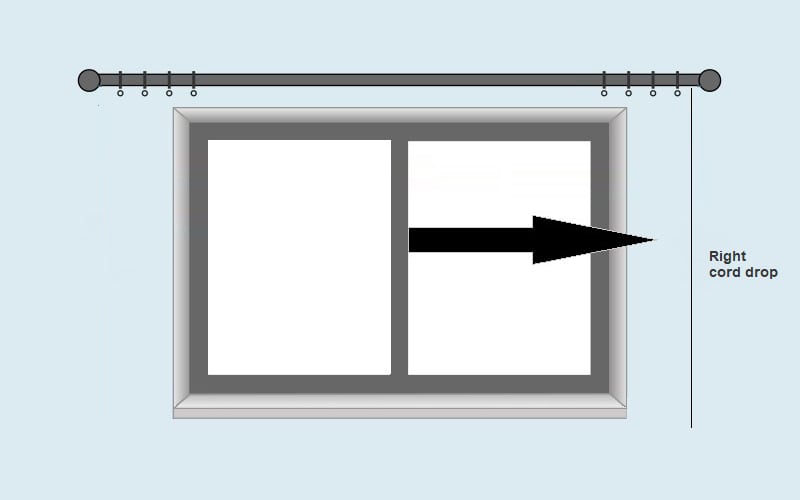

Right Drop
Cord Length

Standard 96 Inches

Custom

Custom Cord Length

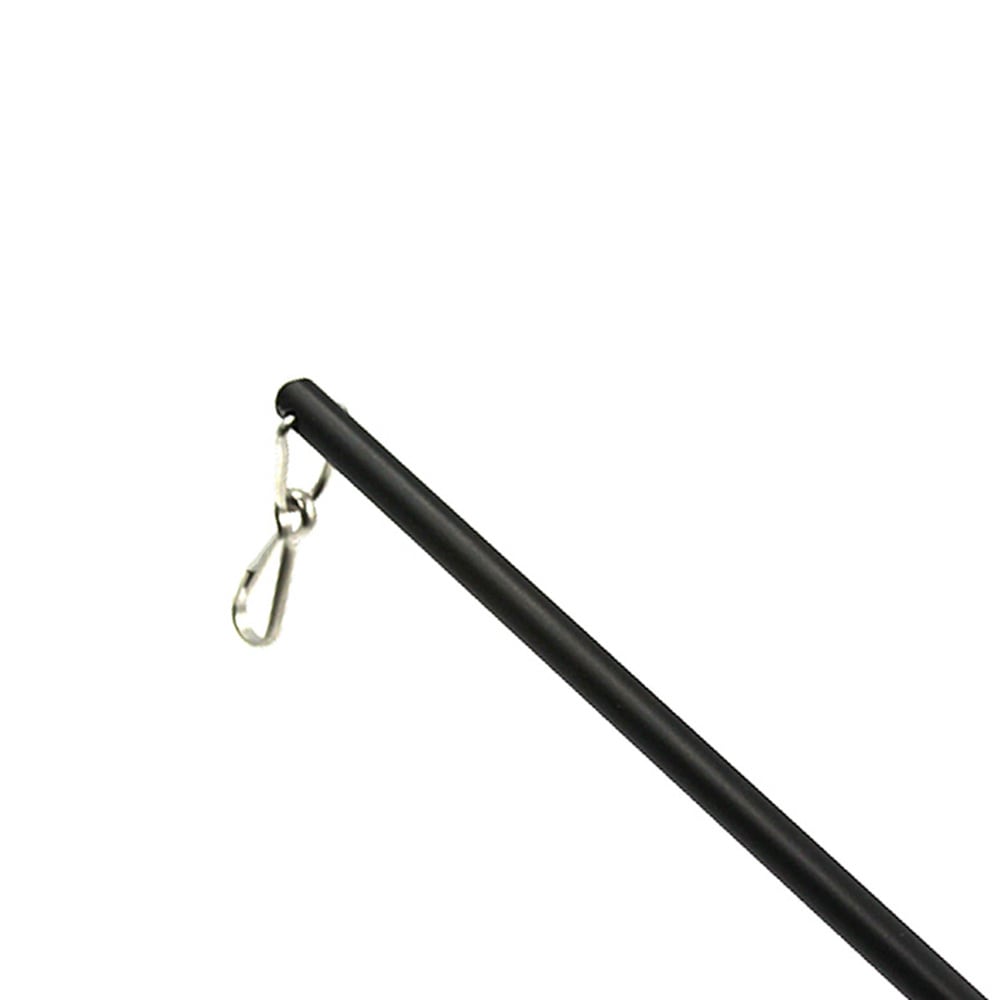

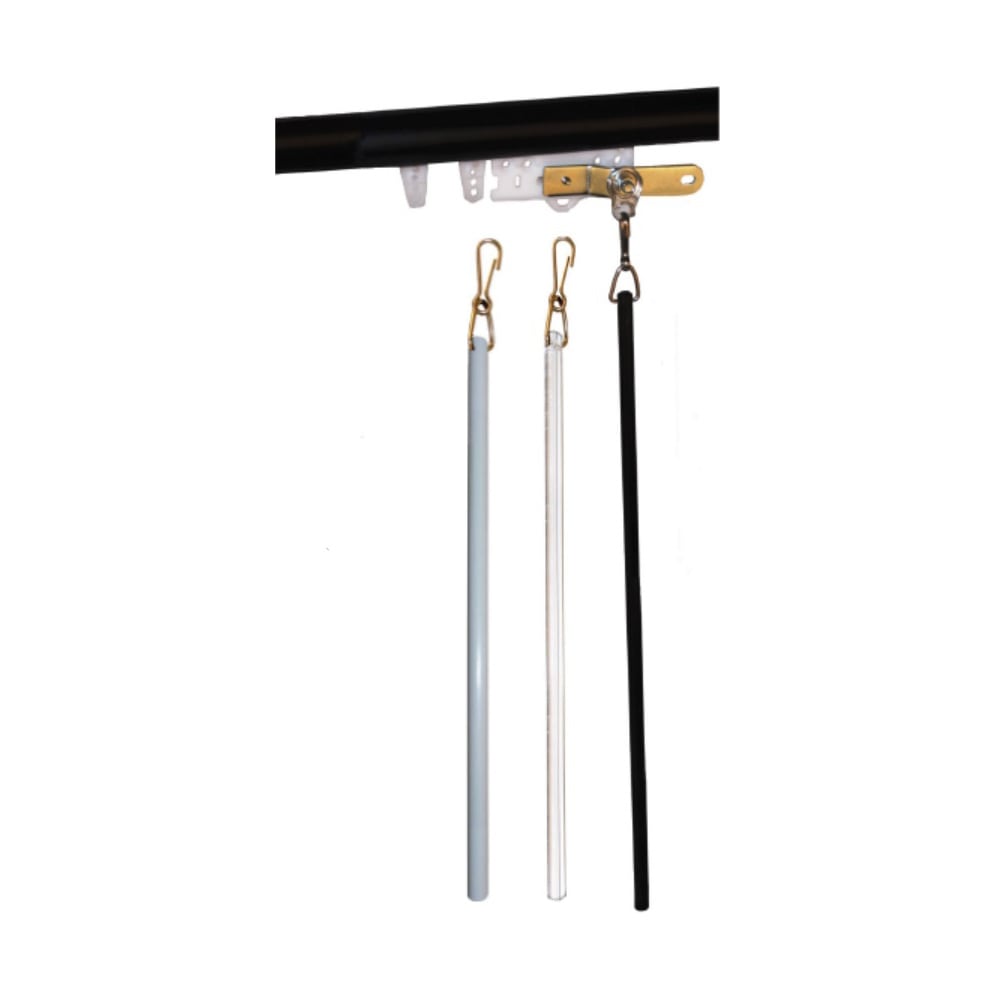

Baton Options
36"
$12.00 /ea
48"
$15.00 /ea
60"
$18.00 /ea
72"
$22.00 /ea
Specify Quantity

Clear only.

36"
$12.00 /ea
48"
$12.00 /ea
60"
$12.00 /ea
72"
$12.00 /ea
Specify Quantity

White only.

36"
$25.00 /ea
48"
$25.00 /ea
60"
$35.00 /ea
72"
$35.00 /ea
Specify Quantity
Specify Finish
Dark Bronze
Ebony
Dijon Gold
Brushed Nickel
Chrome

Available in 5 powder coated finishes.



Step 6 - Finials

Front Rod Finials

The finials below are shown in the finish that you selected for your traverse rod. Please select the Finial(s) you would like for your front rod.

Please select a finial design
Rear Rod End Caps

The finials below are shown in the finish that you selected for your traverse rod. Please select the Finial(s) you would like for rear order.

Please select a finial design
Please scroll up and correct the errors


Step 7 - Review Configuration

Review Your Combination Traverse Rod Configuration

Please review the options you have selected for your Combination Traverse Rod below. If a correction is necessary, go back to previous steps using the navigation above.

Front Rod Finish & Style
  • Finish:
  • Style:
Rear Rod Finish & Style

Track only for rear rod was selected.

  • Track Finish:
  • Track Spice Options:
  • Finish:
  • Style:
Rod Length
  • Front Rod Length: inches
  • Rear Rod Length: inches
  • Rod Spice Options:
Track Finish
  • Finish:
  • Track Spice Options:
Brackets
  • Type:
  • Included Brackets:
  • Additional Brackets:
Draw Direction
  • Direction:
Drapery Type
  • Type:
  • Fullness:
  • Carrier Type:
  • Included Carriers:
  • Additional Carriers:
Carrier Option
  • Carrier:
Baton
  • Type:
  • Finish:
  • Quantity:
  • Length:
Cord Options
  • Cord Drop:
  • Cord Length:
Front Rod Finial(s)
  • Type:
  • Quantity:
Rear Rod Endcap(s)
  • Type:
  • Quantity:
Drapery Rings
  • Type:
  • Quantity:

Cost Breakdown
    Total As Configured:


    Rod End Holders


    Rod End Holders additional description here.

    Rod End Holders
    Assembly Step 1
    Assembly Step 2

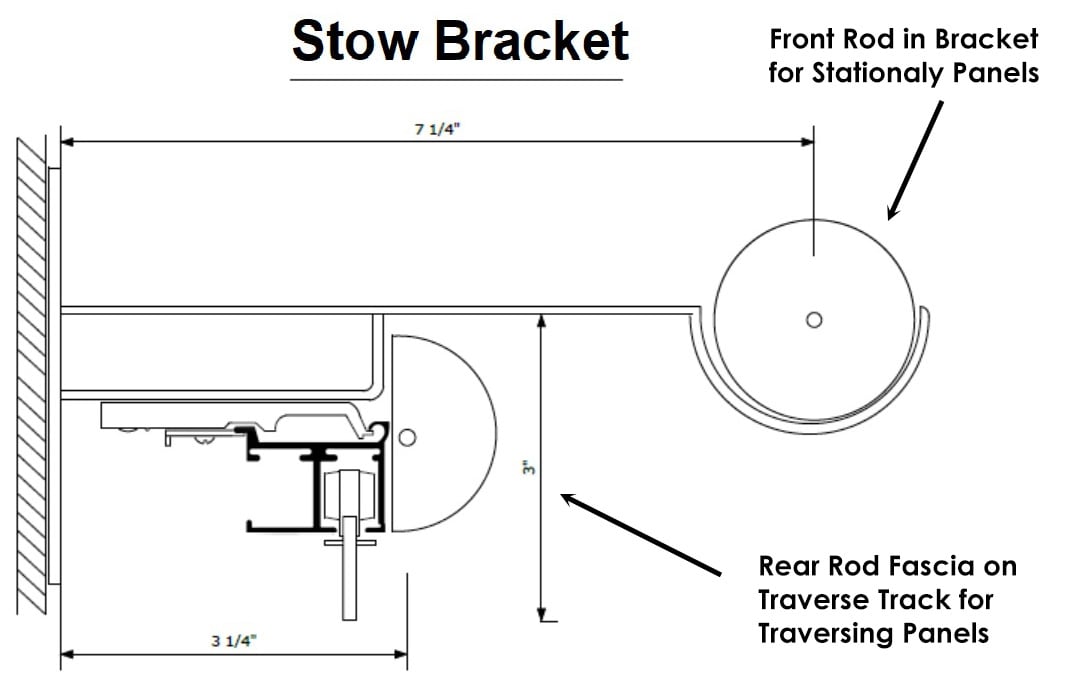

    STOW Bracket Dimensions


    Your rod will come with brackets based upon the length of the rod. Please refer to the chart below for more info:

    < 72" 72" to 96" 97" to 144" 145" to 192"
    Included Brackets for CTRAV: 2 STOW Brackets 2 STOW Brackets, 1 Center Support Bracket 3 STOW Brackets, 2 Center Support Brackets 2 STOW Brackets, 4 Center Support Brackets

    Please refer to the diagram below for a better understanding of how the wall mount attaches to your traverse rod:



    Pinch Pleat Carriers


    Based upon your Draw Direction selection, you'll receive the following carrier:

    Pinch Pleat Left Draw Carrier

    Based upon your Draw Direction selection, you'll receive the following carrier:

    Pinch Pleat Right Draw Carrier

    Based upon your Draw Direction selection, you'll receive the following carriers:

    Pinch Pleat Center Draw Carriers

    Ripple Fold Carriers


    Based upon your Draw Direction selection, you'll receive the following carrier:

    Ripple Fold Left Draw Carrier

    Based upon your Draw Direction selection, you'll receive the following carrier:

    Ripple Fold Right Draw Carrier

    Based upon your Draw Direction selection, you'll be able to select from one of the following two carrier options:

    Ripple Fold Center Draw Butt Master Carriers
    Ripple Fold Center Draw Overlap Master Carriers

    Traverse Rod Bracket Assembly


    Return Bracket Assembly


    Adjustable Center Brackets Assembly


    Track Measurements


    Understanding Ripplefold Fullness


    The fullness of the Ripplefold is determined by the spacing of the Ripplefold carriers.

    For more information, please review this Knowledge Base article: Understanding Ripplefold Fullness (Login Required).

    Drapery Rings


    You may choose to add drapery rings to hold the fabric panels on the front stationary rod of your C-TRAV. Drapery rings are sold separate and our ring design offering in the finish you selected for your front stationary rod is shown on this page.
